Norlys

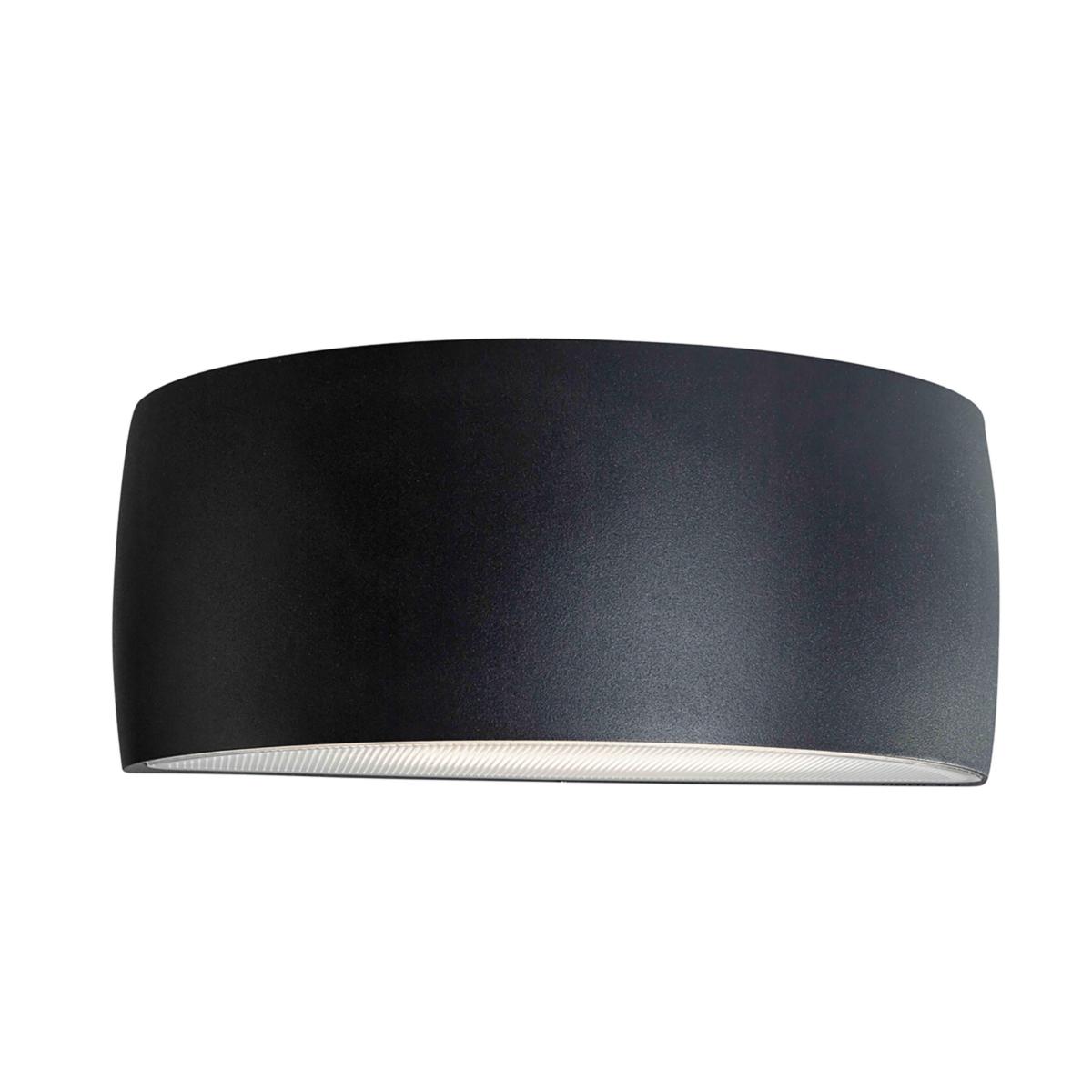

Wall luminaire LED Vasa, Norlys
WALL ARM LUM 9.3W 3K 2X628LM GF
Article number: Suppl. article no:
7703092
128GR
to see price and stock
Up and down light fixture for wall in cast aluminum. Available in aluminum, graphite and white. Light source is shielded by polycarbonate sheets with optical structure.
- Article number: 7703092
- Suppl. article no: 128GR
- Ean no: 7042891288788
- Material class QT906A
Technical data
- Packagin Size: 1 ST/6 ST/6 ST
- Type: Vasa 128
- Max. system power: 8.5 W
- Rated luminous flux according to IEC 62722-2-1: 581 lm
- Dimmable: Yes
- Colour temperature: 3000 K
- Housing colour: Anthracite
- Lamp type: LED exchangeable
- Beam angle: Wide beam 41-80°
- Lamp holder: Other
- Dimming DALI: No
- Dimming DALI-2: No
- Material cover: Plastic, structured
- Length: 125 mm
- Number of poles: 3
- Width: 310 mm
- Height/depth: 155 mm
- Type of control gear: LED operating device current-controlled
- Degree of protection (IP): IP65
- Housing material: Aluminium
- With control gear: Yes
- With light source: Yes
- Protection class according to IEC 61140: I
- Impact strength: IK08
- Nominal voltage: 220-240 V
- Voltage type: AC
- Colour rendering index CRI: 80-89
- Light distribution: Symmetric
- Light outlet: Indirect
- Covering of the luminaire with thermally insulating material possible: No
- Type of grid: None
- Colour of light: White
- Suitable for built-in mounting: No
- Suitable for light line configuration: No
- Suitable for emergency lighting: No
- Suitable for suspended mounting: No
- With light sensor: No
- With air slots: No
- With movement sensor: No
- Suitable for workplace according to EN 12464-1: No
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Suitable for number of light sources: 2
- Suitable for surface mounting: Yes
- Suitable for ceiling mounting: No
- Dimming phase cut-off (trailing edge): Yes
- Dimming with push-button: No
- Dimming Sine Wave Reduction: No
- Dimming mains voltage modulation: No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming LineSwitch: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Power factor: 0.99
- Dimming phase cut-on (leading edge): No
- Filament test according to IEC 60695-2-11: None
- Conductor cross section: 2.5 mm²
- Light distributor: Other
- Luminaire efficacy: 68.4 lm/W
- Suitable for lamp power: 8.5 W
- Rated lifetime L70/B50 at 25 °C: 50000 h
- Rated ambient temperature according to IEC 62722-2-1: 25 °C
- Degree of protection (NEMA): Other
- Dimming Touch and Dim: No
- Type of wiring: Suitable for loop-through wiring
- Colour consistency (McAdam ellipse): SDCM3
- Emergency power supply integrated: No
- Surface protection housing: Powder coating
- Exchangeable control gear: Yes
- Suitable for wall mounting: Yes
- Connection type: Other
- REACH Date: 2021-06-15
- Lowest energy efficiency class of the exchangeable lamp: A++
- Highest energy efficiency class of the exchangeable lamp: A++
- Dimming GPRS: No
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- REACH Information obligation: No
- Dimming depending on control gear: No
