Westal

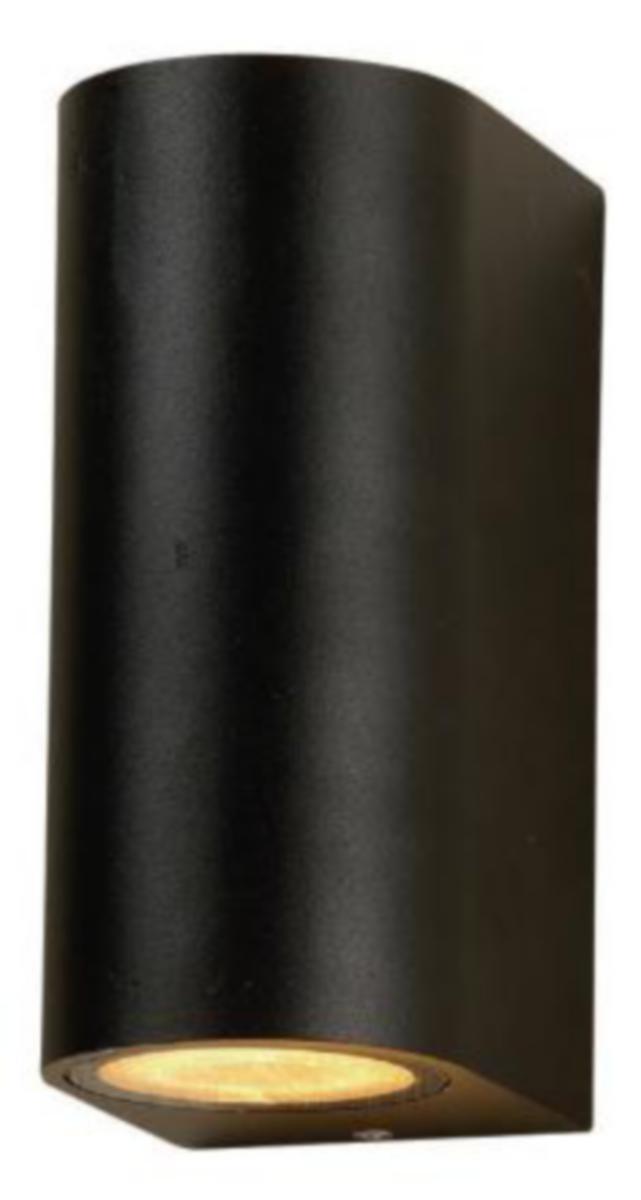

Wall luminiare LOT II, Westal
WALL LIGHT LOT II BLACK
Article number: Suppl. article no:
7702651
2851-60
to see price and stock
Molded aluminum wall luminaire with an anti-corrosion-treated surface in powder-coated black or alu-gray. Available with a GU10 socket or with an LED unit, IP54. Upward and downward light with a glare cover in clear glass. For wall or outdoor wall mounting. Suitable for mounting with pipe outlet on ex. facades, entrances etc.
- Article number: 7702651
- Suppl. article no: 2851-60
- Ean no: 7393047285169
- Material class QT9010
Technical data
- Packagin Size: 1 ST/20 ST
- Housing colour: Black
- Light distribution: Symmetric
- Suitable for number of light sources: 2
- Lamp holder: GU10
- Degree of protection (IP): IP54
- Length: 150 mm
- Width: 68 mm
- Height/depth: 92 mm
- Material cover: Glass transparent
- Housing material: Aluminium
- Surface protection housing: Powder coating
- With light source: No
- Protection class according to IEC 61140: I
- Impact strength: IK08
- Nominal voltage: 220-240 V
- Voltage type: AC
- Colour rendering index CRI: 80-89
- Suitable for workplace according to EN 12464-1: No
- Number of poles: 3
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Filament test according to IEC 60695-2-11: None
- Dimmable: Yes
- Conductor cross section: 1.5 mm²
- Light distributor: None
- Suitable for built-in mounting: No
- Suitable for lamp power: 0-35 W
- Suitable for light line configuration: No
- Suitable for emergency lighting: No
- Suitable for suspended mounting: No
- Suitable for surface mounting: Yes
- With light sensor: No
- With air slots: No
- With movement sensor: No
- Suitable for ceiling mounting: No
- Type of grid: None
- Type of wiring: Ending
- Covering of the luminaire with thermally insulating material possible: No
- Suitable for wall mounting: Yes
- Connection type: Screwed terminal
- REACH Date: 2021-12-08
- REACH Information obligation: No
