Norlys

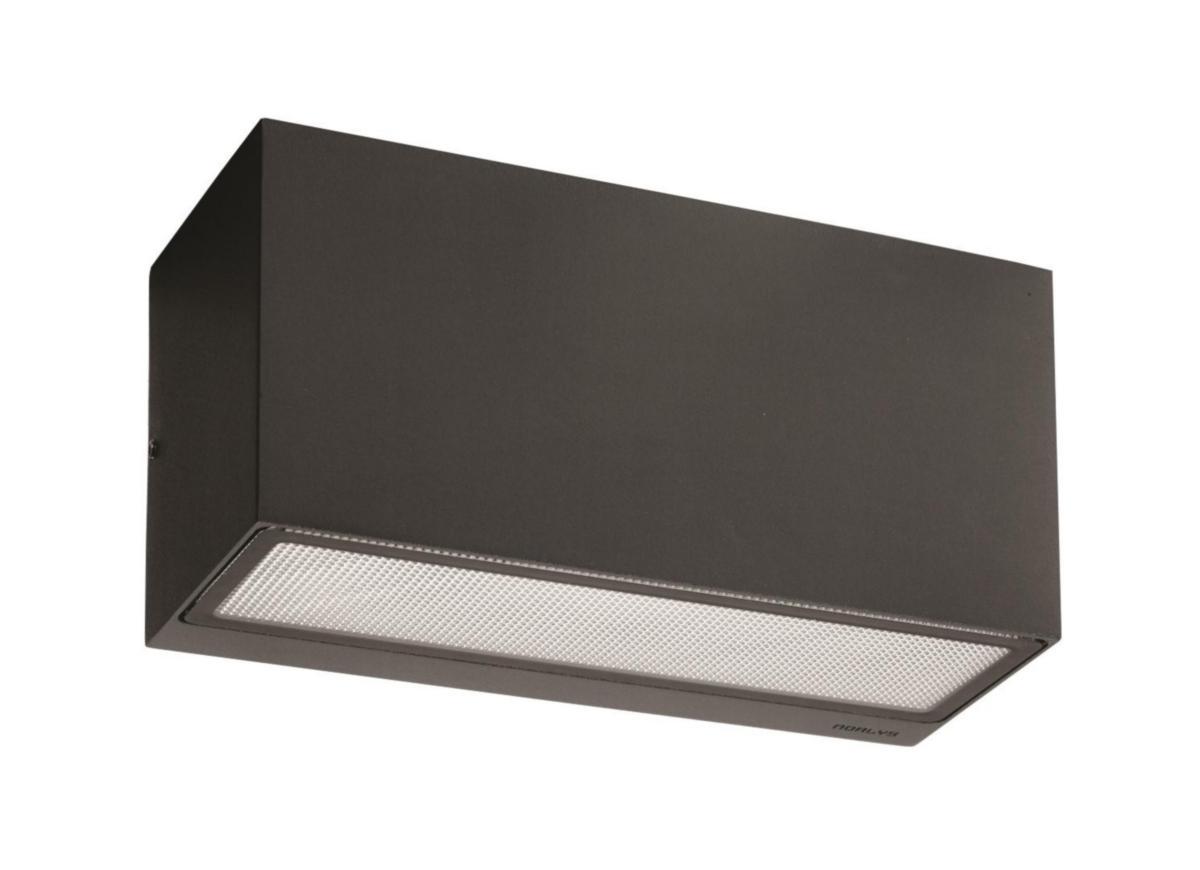

Wall luminaire Asker
WALL FIXTURE BOXER UP-DOWN LIGHT
Article number: Suppl. article no:
7702558
1513GR
to see price and stock
Rectangular facade luminaire with two light scatterings and in two sizes.
- Article number: 7702558
- Suppl. article no: 1513GR
- Ean no: 7042891513484
- Material class QU023A
Technical data
- Packagin Size: 1 ST/6 ST
- Design: Upward and downward light
- Colour temperature: 2200-4000 K
- Housing colour: Anthracite
- Lamp type: Incandescent lamp
- Beam angle: 41-80° - Wide beam
- Lamp holder: E27
- Dimming DALI: No
- Dimming DALI-2: No
- Material cover: Plastic, structured
- Length: 110 mm
- Number of poles: 3
- Width: 225 mm
- Height/depth: 85 mm
- Type of control gear: Not required
- Degree of protection (IP): IP54
- Housing material: Aluminium
- With control gear: No
- With light source: No
- Protection class according to IEC 61140: I
- Impact strength: IK08
- Nominal voltage: 220-240 V
- Voltage type: AC
- Colour rendering index CRI: 80-89
- Light distribution: Symmetric
- Light outlet: Indirect
- Covering of the luminaire with thermally insulating material possible: No
- Type of grid: None
- Colour of light: White
- Suitable for built-in mounting: No
- Suitable for light line configuration: No
- Suitable for emergency lighting: No
- Suitable for suspended mounting: No
- With light sensor: No
- With air slots: No
- With movement sensor: No
- Suitable for workplace according to EN 12464-1: No
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Suitable for number of light sources: 1
- Suitable for surface mounting: Yes
- Suitable for ceiling mounting: No
- Dimming phase cut-off (trailing edge): No
- Dimming with push-button: No
- Dimming mains voltage modulation: No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Dimming phase cut-on (leading edge): No
- Filament test according to IEC 60695-2-11: None
- Conductor cross section: 2.5 mm²
- Light distributor: Other
- Degree of protection (NEMA): Other
- Dimming Touch and Dim: No
- Type of wiring: Suitable for loop-through wiring
- Surface protection housing: Powder coating
- Exchangeable control gear: No
- Suitable for wall mounting: Yes
- Connection type: Push-in clamp
- REACH Date: 2021-06-15
- Type: Asker 1513
- Dimming LineSwitch: No
- Dimming Sine Wave Reduction: No
- REACH Information obligation: No
- Emergency power supply integrated: No
