AhlsellProductsElectricLighting 70-8377 Exterior luminairesCeiling and wall-mounted luminairesCeiling and wall luminaires
Hide-a-lite

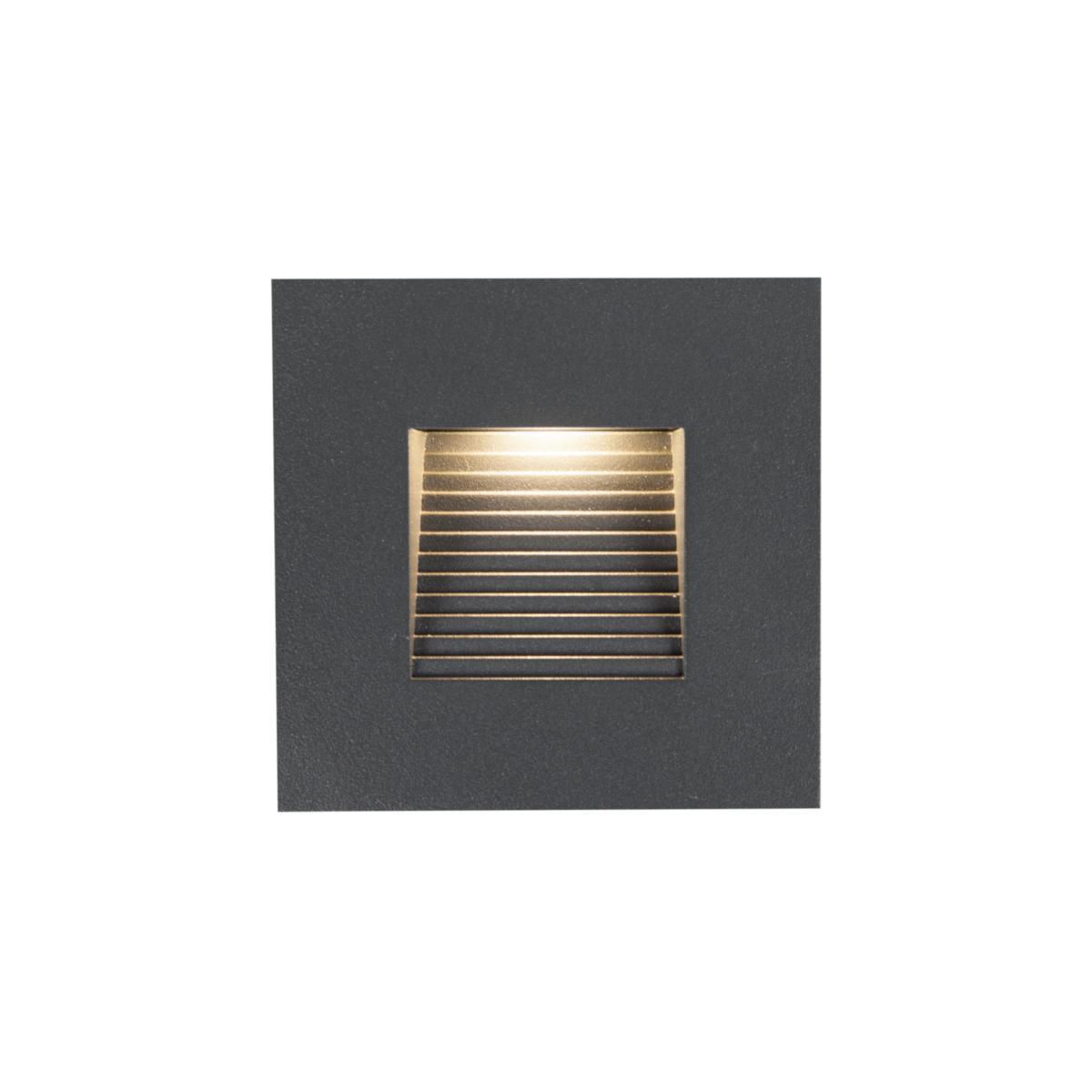

Wall fixture Indicate Multi, Hide-a-lite

WALLFIXTURE INDICATE 3000K ANT
Artikelnummer:
7702526
Lev. artikelnr:
7702526
‌
‌
‌
‌
‌
 för att se saldo och pris
Produkten är miljöbedömd av SundaHus
Accent lighting with multi-chip technology for recessed installation in walls with stylish design. Indicate Multi is installed in order to mark or light up passages, walls or staircases. Built-in actuator for direct 230V-connection. IP65-classified and suitable for both indoor and outdoor use. Three different front covers are available as accessories, thanks to which you can easily select light image and this way give your fixture a new look. White or grey version and 3000K for halogen-like effect. NB The installation type depends on the installation method. Please follow the manual. Comes incl. plastic mounting box.
  • Article number:
    7702526
  • Suppl. article no:
    7702526
  • Ean no:
    7392971127620
  • Material class
    QT702A
Teknisk data
  • Max. system power: 2 W
  • Rated luminous flux according to IEC 62722-2-1: 20 lm
  • Dimmable: No
  • Colour temperature: 3000 K
  • Housing colour: Anthracite
  • Lamp type: LED not exchangeable
  • Lamp holder: Other
  • Dimming DALI: No
  • Length: 100 mm
  • Number of poles: 3
  • Width: 100 mm
  • Height/depth: 72 mm
  • Type of control gear: LED operating device current-controlled
  • Degree of protection (IP): IP65
  • Housing material: Aluminium
  • With control gear: Yes
  • With light source: Yes
  • Protection class according to IEC 61140: I
  • Nominal voltage: 220-240 V
  • Voltage type: AC
  • Colour rendering index CRI: 80-89
  • Light distribution: Asymmetric
  • Light outlet: Indirect
  • Covering of the luminaire with thermally insulating material possible: No
  • Built-in width: 77 mm
  • Type of grid: None
  • Built-in length: 77 mm
  • Colour of light: White
  • Suitable for built-in mounting: Yes
  • Suitable for light line configuration: No
  • Suitable for emergency lighting: No
  • Suitable for suspended mounting: No
  • With light sensor: No
  • With air slots: No
  • With movement sensor: No
  • Suitable for workplace according to EN 12464-1: No
  • Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
  • Suitable for number of light sources: 1
  • Suitable for surface mounting: No
  • Suitable for ceiling mounting: Yes
  • Dimming phase cut-off (trailing edge): No
  • Dimming with push-button: No
  • Dimming Sine Wave Reduction: No
  • Dimming mains voltage modulation: No
  • Dimming 0-10 V: No
  • Dimming 1-10 V: No
  • Dimming DMX: No
  • Dimming DSI: No
  • Dimming LineSwitch: No
  • Dimming RF: No
  • Dimming Zigbee: No
  • Dimming potentiometer (integrated): No
  • Dimming programmable: No
  • Dimming manufacturer's proprietary system: No
  • Dimming phase cut-on (leading edge): No
  • Conductor cross section: 2.5 mm²
  • Light distributor: Other
  • Luminaire efficacy: 10 lm/W
  • Rated ambient temperature according to IEC 62722-2-1: -25-40 °C
  • Dimming Touch and Dim: No
  • Type of wiring: Suitable for loop-through wiring
  • Operation by Bluetooth: No
  • Colour consistency (McAdam ellipse): SDCM3
  • Luminous intensity: 25 cd
  • Emergency power supply integrated: No
  • Surface protection housing: Powder coating
  • Suitable for wall mounting: Yes
  • Built-in height/depth: 70 mm
  • REACH Date: 2022-06-01
  • Type: Indicate Multi
  • Dimming GPRS: No
  • Energy efficiency class of the built-in lamp: A++, A+, A (LED)
  • REACH Information obligation: No
  • Dimming depending on control gear: No
