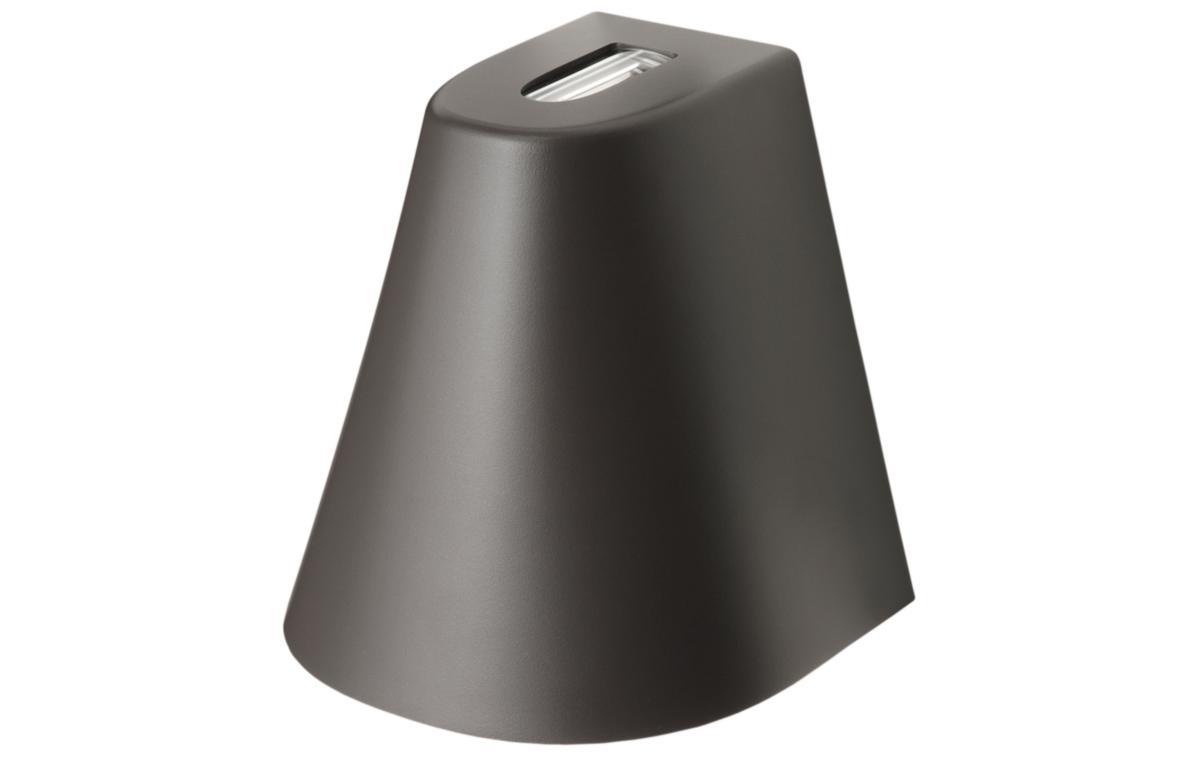

Wall fixture Spike, SG Armaturen
SPIKE GRAPHITE UPLIGHT
Article number: Suppl. article no:
7701728
623913
to see price and stock

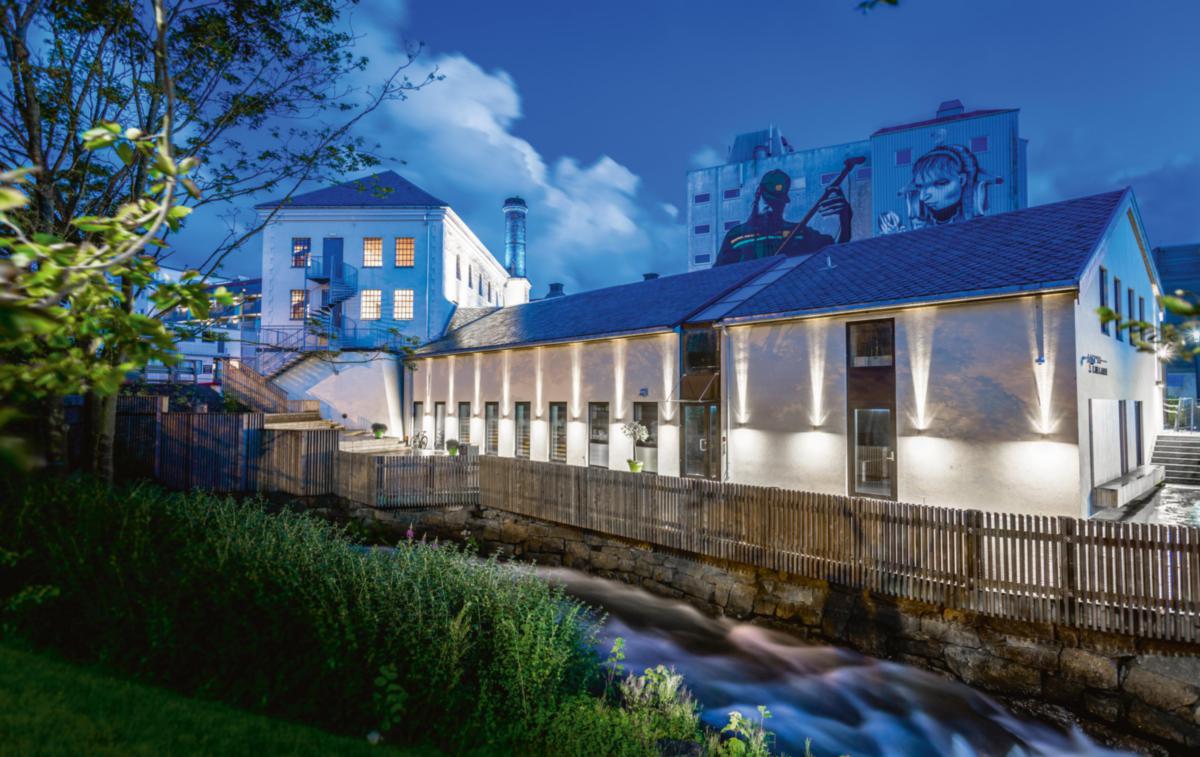

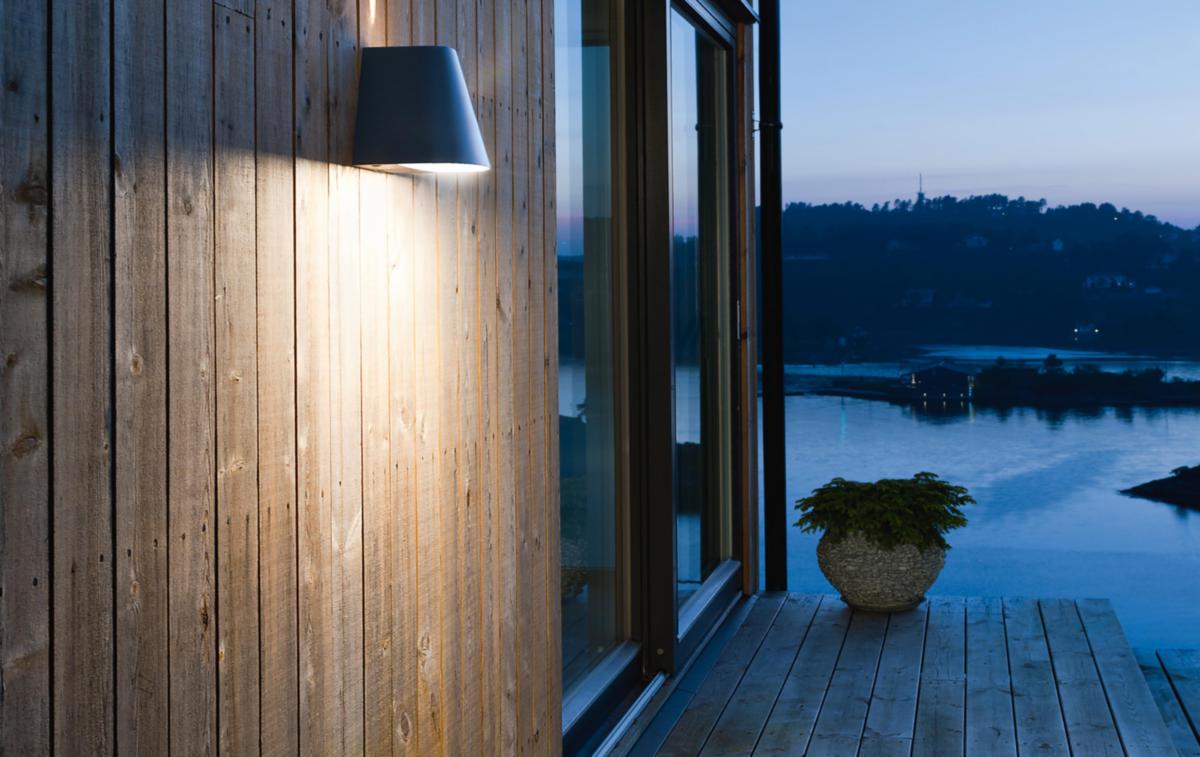

Facade luminaire that gives a neat and stylish impression. Comes with wide beam downlight in all variants and in combination with double sockets (16A) under flap lid, narrow beam uplight and twilight relay, there are many features in a compact format. If you choose the version with sockets, a separate terminal block will be added for the connectors. With easy installation and the possibility of control via a built-in twilight relay, Spike is the obvious choice of modern wall lighting. Made of powder-coated aluminum and 10-year rust protection guarantee.
- Article number: 7701728
- Suppl. article no: 623913
- Ean no: 7021986239133
- Material class QT903A
Technical data
- Packagin Size: 1 ST/8 ST/120 ST
- Design: Up-/Downlight
- Max. system power: 17 W
- Rated luminous flux according to IEC 62722-2- 1: 890 lm
- Colour temperature: 3000 K
- Housing colour: Anthracite
- Dimming DALI: No
- Dimming DALI-2: No
- Nominal voltage: 220-240 V
- Voltage type: AC
- Beam angle: > 80° - Extreme wide beam
- Housing material: Aluminium
- Material cover: Plastic, opal
- Lamp holder: Other
- Lamp type: LED exchangeable
- With light source: Yes
- Outer diameter: 0 mm
- Width: 171 mm
- Height/depth: 151 mm
- Length: 173 mm
- Suitable for number of light sources: 2
- Colour rendering index CRI: 80-89
- Protection class according to IEC 61140: I
- Degree of protection (IP): IP44
- Type of control gear: Not required
- With control gear: No
- Colour of light: White
- With movement sensor: No
- With air slots: No
- With light sensor: No
- Suitable for surface mounting: Yes
- Suitable for suspended mounting: No
- Suitable for built-in mounting: No
- Light outlet: Direct
- Light distribution: Symmetric
- Suitable for emergency lighting: No
- Suitable for ceiling mounting: No
- Type of grid: Other
- Impact strength: IK08
- Covering of the luminaire with thermally insulating material possible: No
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Suitable for workplace according to EN 12464-1: No
- Number of poles: 3
- Built-in length: 0 mm
- Dimmable: Yes
- Dimming with push-button: No
- Dimming mains voltage modulation: No
- Dimming phase cut-off (trailing edge): Yes
- Dimming phase cut-on (leading edge): No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Power factor: 0.9
- Filament test according to IEC 60695-2-11: None
- Built-in width: 0 mm
- Conductor cross section: 2.5 mm²
- Light distributor: Other
- Luminaire efficacy: 52 lm/W
- Suitable for lamp power: 17 W
- Suitable for light line configuration: No
- Rated lifetime L70/B50 at 25 °C: 50000 h
- Rated life time L90/B50 at 25 °C: 0 h
- Rated ambient temperature according to IEC 62722-2-1: 25 °C
- Degree of protection (NEMA): Other
- Dimming Touch and Dim: No
- Type of wiring: Suitable for loop-through wiring
- Operation by Bluetooth: No
- Photobiological safety according to EN 62471: Other
- Colour consistency (McAdam ellipse): SDCM3
- Surface protection housing: Powder coating
- Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq): 70 %
- Failure rate at median useful life of 50,000 h at 25 °C ambient (tq): 50 %
- Beam angle adjustable: No
- Colour of light adjustable: No
- Compatible with Amazon Alexa: No
- Compatible with Apple HomeKit: No
- Compatible with Google Assistant: No
- Luminous flux adjustable: No
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 52
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 64
- IFTTT support available: No
- Exchangeable control gear: No
- Built-in diameter: 0 mm
- Suitable for wall mounting: Yes
- Built-in height/depth: 0 mm
- Connection type: Push-in clamp
- Rated life time L90/B10 at 25 °C: 0 h
- Rated life time L80/B10 at 25 °C: 0 h
- REACH Date: 2021-07-07
- Lowest energy efficiency class of the exchangeable lamp: A+
- Dimming LineSwitch: No
- Dimming Sine Wave Reduction: No
- Highest energy efficiency class of the exchangeable lamp: A+
- Energy efficiency class of the provided exchangeable built-in lamp: A+
- Dimming GPRS: No
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- REACH Information obligation: No
- Dimming depending on control gear: No
