Wall fixture Uno, SG-Armaturen
EXT LUM UNO V 13,5W LED
Article number: Suppl. article no:
7701241
641640
to see price and stock

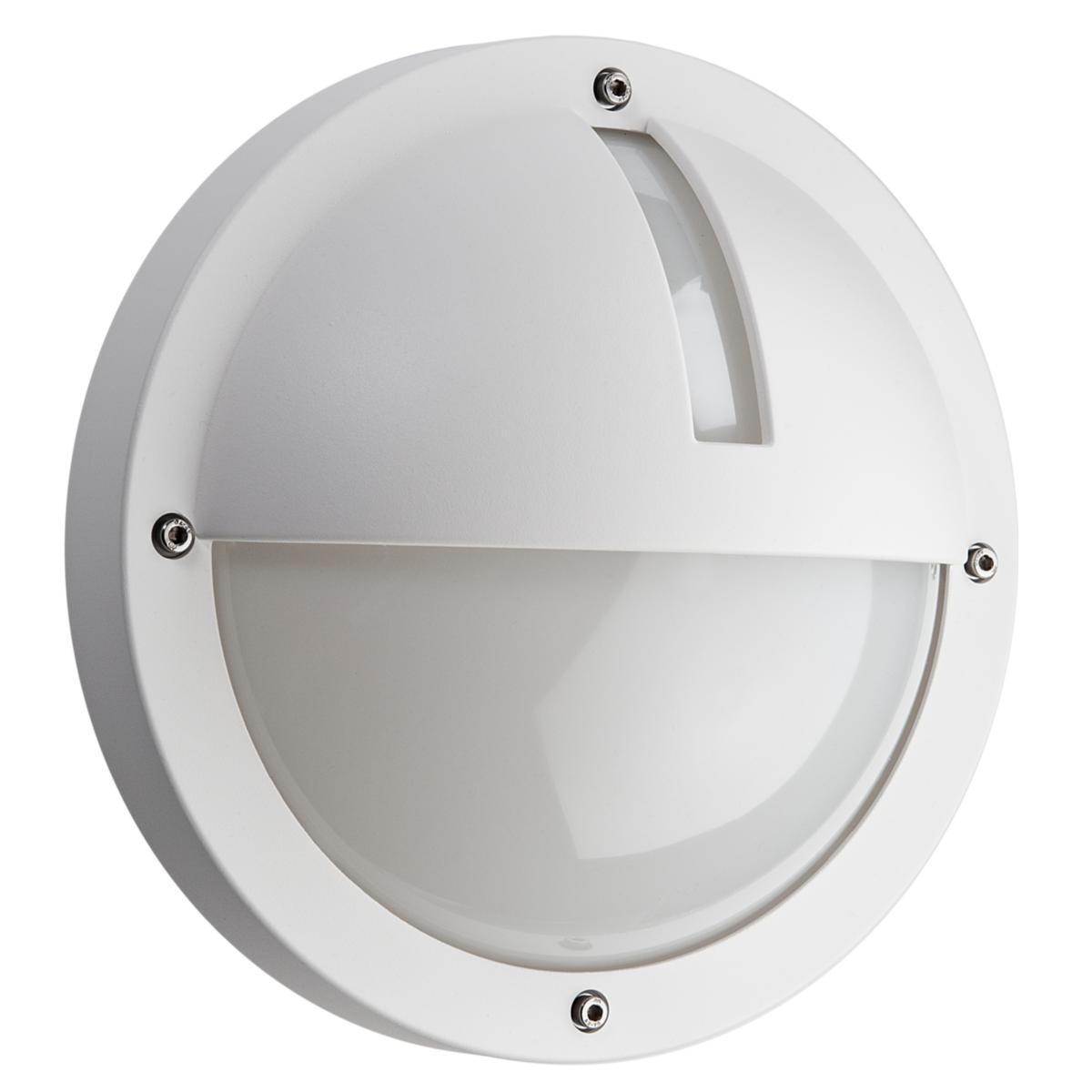

Round semi-covered wall luminaire with decorative light slot that can be mounted both outside and inside. Made of die-cast powder-coated aluminum. Cup in UV-stabilized opal polycarbonate. Dual bushings and transferable quick-connect terminal block. Corrosion resistant with 10 year warranty, IP65 and IK10. There are accessories in the form of a pole, rounded at the top to adapt to the luminaire. In this way, you can complement the wall luminaire with a bollard with the same look.
- Article number: 7701241
- Suppl. article no: 641640
- Ean no: 7021986416404
- Material class QT9030
Technical data
- Packagin Size: 1 ST/8 ST/8 ST/48 ST
- Max. system power: 11.5 W
- Rated luminous flux according to IEC 62722-2- 1: 500 lm
- Colour temperature: 3000 K
- Housing colour: White
- Dimming DALI: No
- Light distribution: Symmetric
- Lamp type: LED exchangeable
- Suitable for number of light sources: 1
- Beam angle: Extreme wide beam >80°
- Lamp holder: Other
- Degree of protection (IP): IP65
- Height/depth: 130 mm
- Outer diameter: 270 mm
- Type of control gear: Not required
- Material cover: Plastic, opal
- Housing material: Aluminium
- Surface protection housing: Powder coating
- With control gear: No
- With light source: Yes
- Protection class according to IEC 61140: II
- Degree of protection (NEMA): Other
- Impact strength: IK10
- Nominal voltage: 230 V
- Voltage type: AC
- Colour rendering index CRI: 80-89
- Light outlet: Direct
- Suitable for workplace according to EN 12464-1: No
- Number of poles: 2
- Dimming phase cut-off (trailing edge): Yes
- Dimming with push-button: No
- Dimming Sine Wave Reduction: No
- Dimming mains voltage modulation: No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming LineSwitch: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Power factor: 0.9
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Dimming phase cut-on (leading edge): No
- Filament test according to IEC 60695-2-11: 850 °C - 30 s
- Dimmable: No
- Conductor cross section: 1.5 mm²
- Colour of light: White
- Light distributor: Other
- Luminaire efficacy: 43 lm/W
- Suitable for built-in mounting: No
- Suitable for lamp power: 11.5 W
- Suitable for light line configuration: No
- Suitable for emergency lighting: No
- Suitable for suspended mounting: No
- Suitable for surface mounting: Yes
- With light sensor: No
- With air slots: No
- With movement sensor: No
- Rated lifetime L70/B50 at 25 °C: 50000 h
- Rated ambient temperature according to IEC 62722-2-1: 25 °C
- Suitable for ceiling mounting: No
- Type of grid: None
- Dimming Touch and Dim: No
- Type of wiring: Suitable for loop-through wiring
- Covering of the luminaire with thermally insulating material possible: No
- Operation by Bluetooth: No
- Photobiological safety according to EN 62471: Other
- Colour consistency (McAdam ellipse): SDCM3
- Emergency power supply integrated: No
- Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq): 70 %
- Failure rate at median useful life of 50,000 h at 25 °C ambient (tq): 50 %
- Beam angle adjustable: No
- Colour of light adjustable: No
- Compatible with Amazon Alexa: No
- Compatible with Apple HomeKit: No
- Compatible with Google Assistant: No
- Luminous flux adjustable: No
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 52
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 64
- IFTTT support available: No
- Suitable for wall mounting: Yes
- Connection type: Push-in clamp
- REACH Date: 2021-07-09
- Lowest energy efficiency class of the exchangeable lamp: A+
- Highest energy efficiency class of the exchangeable lamp: A++
- Energy efficiency class of the provided exchangeable built-in lamp: A++
- Dimming GPRS: No
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- REACH Information obligation: No
- Dimming depending on control gear: No
