Steinel

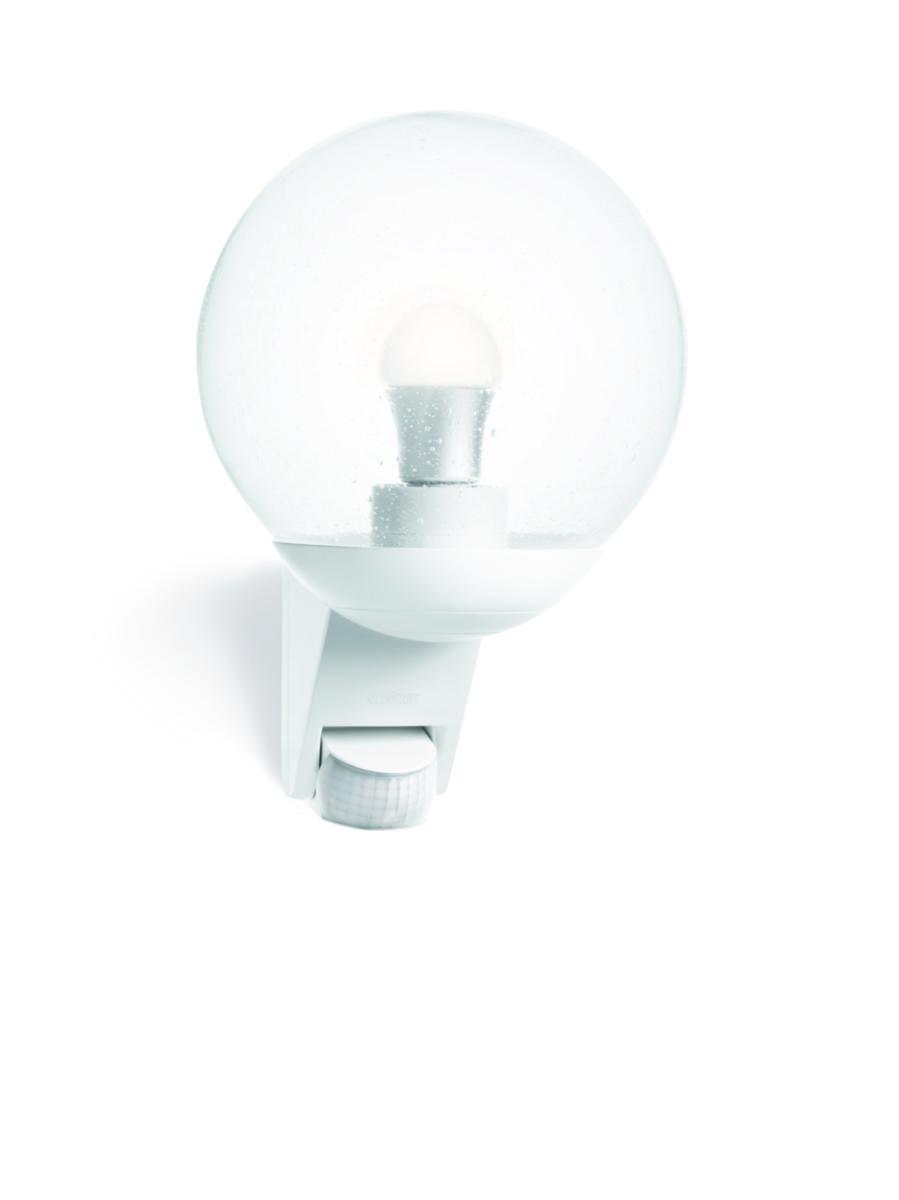

Wall fixture Sensor L585, Steinel

SENSOR LUM GLOBE E27 WHT L585 L585
Article number:
7701182
Suppl. article no:
005917





 to see price and stock
L585 is a sensor lamp with a strict and reserved design that lights only when a real need exists.
The sensor lights the lamp when someone enters the surveillance area, range max 12 m and angle 180°.

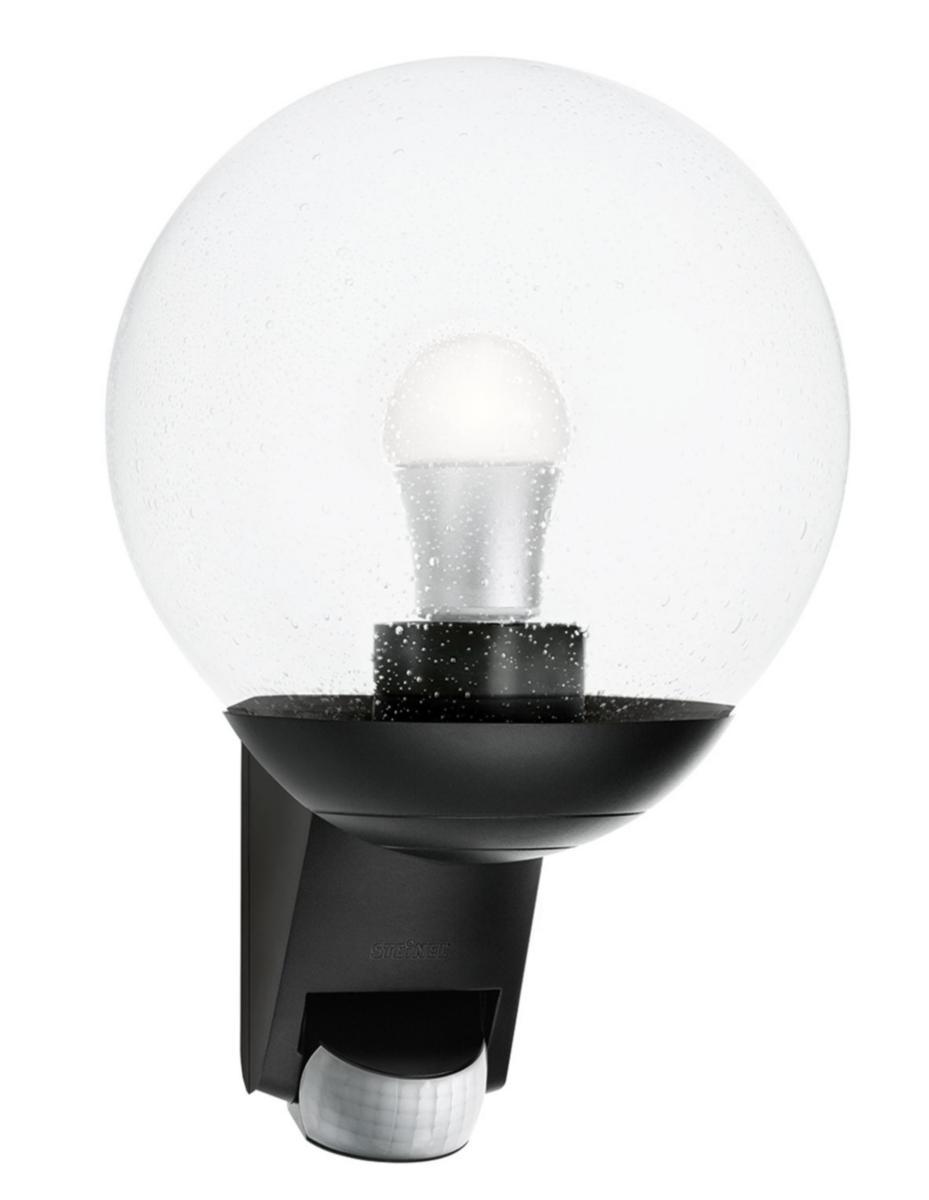

The sensor lamp L585 is available in black and has a clear glass lamp dome.
Enclosure class: IP44, Class II
Assembly: Wall, mounting height 1,20-2,20 metres. Higher or lower mounting heights shorten the range.
Version: ABS plastic frame.
Motion detector: L585 has an IR sensor with an opening angle of 180° and a range of up to 12 metres (not walking directly towards).
All settings are made on the potentiometer on the underside of the sensor.
Light source: Incandescent bulb max 60W, E27.
Connection: Inserting hole Ø 12mm. Connection block 2 x 2,5mm².
Ambient temperature: -25° C - +50° C
Electrical data: 230V, 50Hz
  • Article number:
    7701182
  • Suppl. article no:
    005917
  • Ean no:
    4007841005917
  • Material class
    QT901B
Technical data
  • Dimmable: No
  • Housing colour: White
  • Lamp type: Incandescent lamp
  • Beam angle: Wide beam 41-80°
  • Lamp holder: E27
  • Dimming DALI: No
  • Dimming DALI-2: No
  • Length: 307 mm
  • Width: 215 mm
  • Height/depth: 228 mm
  • Type of control gear: Not required
  • Degree of protection (IP): IP44
  • Housing material: Plastic
  • With control gear: No
  • With light source: No
  • Protection class according to IEC 61140: II
  • Nominal voltage: 230-240 V
  • Voltage type: AC
  • Light distribution: Symmetric
  • Light outlet: Direct
  • Covering of the luminaire with thermally insulating material possible: No
  • Type of grid: None
  • Suitable for built-in mounting: No
  • Suitable for light line configuration: No
  • Suitable for emergency lighting: No
  • Suitable for suspended mounting: No
  • With light sensor: Yes
  • With air slots: No
  • With movement sensor: Yes
  • Suitable for workplace according to EN 12464-1: No
  • Suitable for number of light sources: 1
  • Suitable for surface mounting: Yes
  • Suitable for ceiling mounting: No
  • Dimming phase cut-off (trailing edge): No
  • Dimming with push-button: No
  • Dimming Sine Wave Reduction: No
  • Dimming mains voltage modulation: No
  • Dimming 0-10 V: No
  • Dimming 1-10 V: No
  • Dimming DMX: No
  • Dimming DSI: No
  • Dimming LineSwitch: No
  • Dimming RF: No
  • Dimming Zigbee: No
  • Dimming potentiometer (integrated): No
  • Dimming programmable: No
  • Dimming manufacturer's proprietary system: No
  • Dimming phase cut-on (leading edge): No
  • Light distributor: None
  • Dimming Touch and Dim: No
  • Operation by Bluetooth: No
  • Emergency power supply integrated: No
  • Surface protection housing: Other
  • Beam angle adjustable: No
  • Colour of light adjustable: No
  • Compatible with Amazon Alexa: No
  • Compatible with Apple HomeKit: No
  • Compatible with Google Assistant: No
  • Luminous flux adjustable: No
  • IFTTT support available: No
  • Exchangeable control gear: No
  • Suitable for wall mounting: Yes
  • REACH Date: 2022-03-07
  • Type: Sensor L585
  • Dimming GPRS: No
  • REACH Information obligation: No
  • Dimming depending on control gear: No
