Bollard aPark Cone

BOLLARD 1000LM 3000K LGRY APARK CONE
Artikelnummer:
7748703
Lev. artikelnr:
21-3-03





 för att se saldo och pris
Produkten är bedömd hos Byggvarubedömningen med totalbedömningen Undviks.

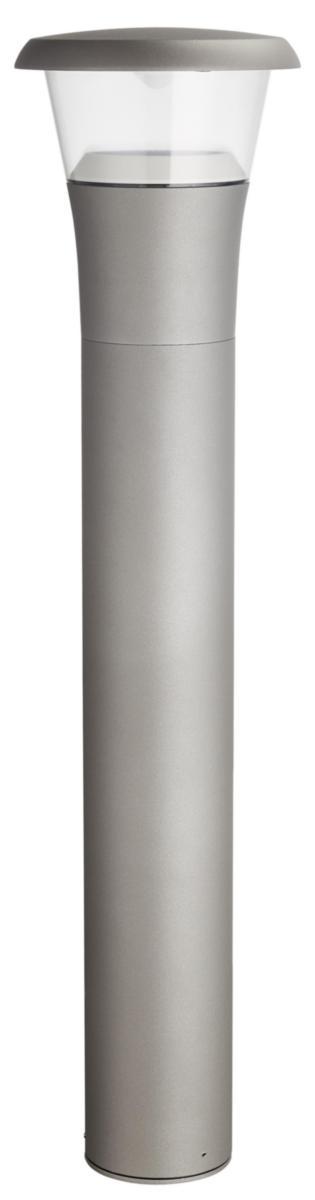

Bollard luminaire with indirect light intended for park roads, courtyards and similar public areas adjacent to residential buildings and offices. Robust luminaire in powder-coated cast aluminum and cup in clear polycarbonate. LED module mounted in the lower edge of the hive with a reflector in the upper part provides a naturally even and glare-free light. Mounted on foundation with insert diameter Ø mm.
  • Article number:
    7748703
  • Suppl. article no:
    21-3-03
  • Material class
    QU1600
Teknisk data
  • Packagin Size: 1 ST/12 ST/12 ST
  • Max. system power: 12 W
  • Rated luminous flux according to IEC 62722-2-1: 1000 lm
  • Colour temperature: 3000 K
  • Housing colour: Grey
  • Length: 1000 mm
  • Lamp type: LED not exchangeable
  • Degree of protection (IP): IP65
  • Housing material: Aluminium
  • Surface protection: Powder coating
  • Type of luminaire: Bollard luminaire
  • With base plate: Yes
  • Material cover: Plastic, transparent
  • Protection class according to IEC 61140: I
  • Colour of light: White
  • Number of poles: 3
  • Diameter: 217 mm
  • Type of control gear: LED operating device current-controlled
  • Colour rendering index CRI: 80-89
  • With control gear: Yes
  • Conductor cross section: 2.5 mm²
  • Nominal voltage: 220-240 V
  • Impact strength: IK09
  • Type of wiring: Suitable for loop-through wiring
