Bollard CIRCLED, SG-Lighting
CIRCLED LUMINAIRE 3 500 500 500 K
Article number: Suppl. article no:
7748228
8246087067
to see price and stock

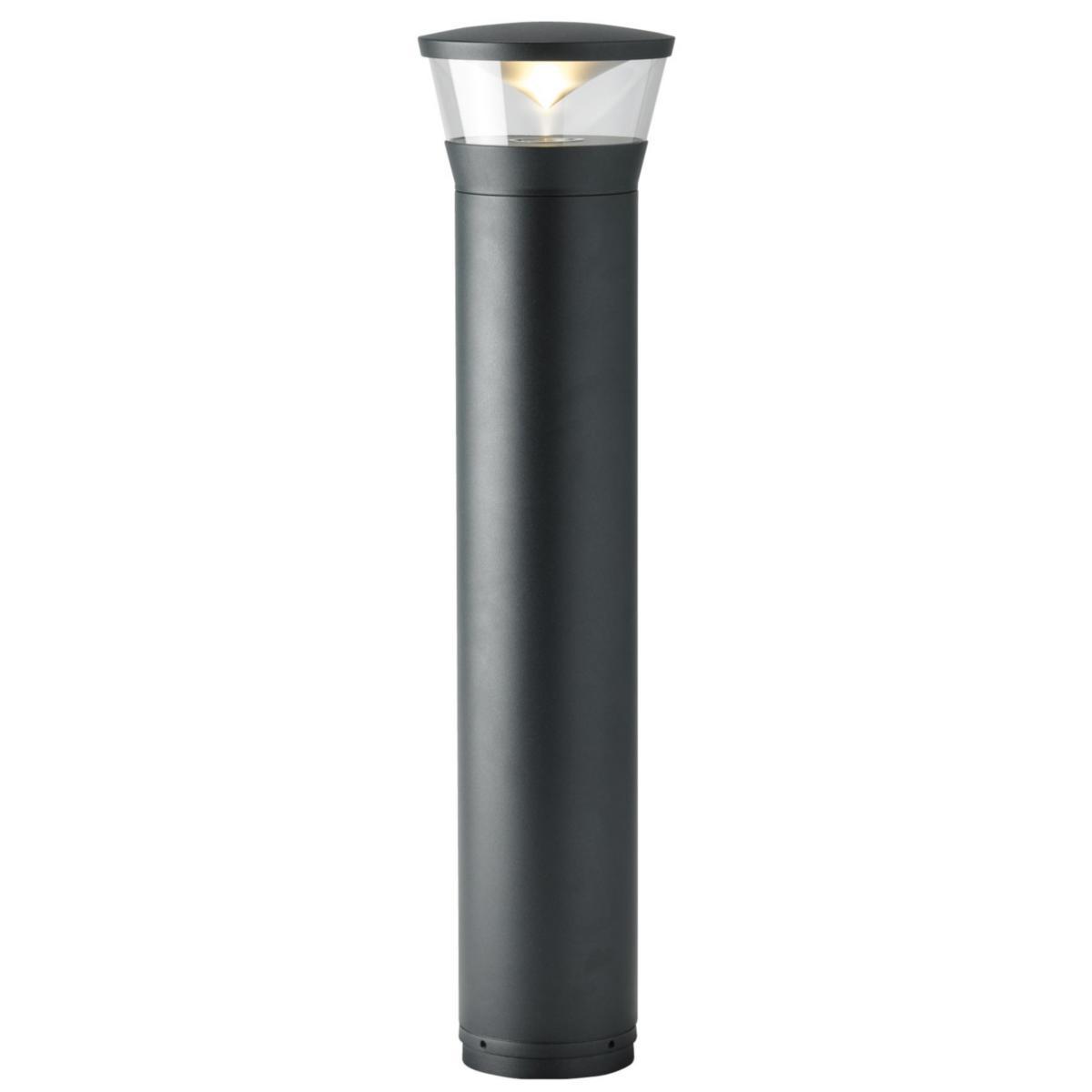

CircLED bollards are radiant and distribute the light all around. Mounted with ground bracket, or with insert for foundation. Highest impact resistance IK10. Connection: From below in post insert, 4x16mm². Electrical data: 50 Hz. Other: Ground bracket E77 482 92 for direct ground or bollard insert E77 482 93 for foundation E77 786 66 type 108 Cetone. Integrated surge protection (min. 4kV) built into the driver.
- Article number: 7748228
- Suppl. article no: 8246087067
- Ean no: 5703821168670
- Material class QU030A
Technical data
- Packagin Size: 1 ST/9 ST
- Max. system power: 16 W
- Rated luminous flux according to IEC 62722-2-1: 740 lm
- Colour temperature: 3000 K
- Housing colour: Black
- Diameter: 220 mm
- Length: 900 mm
- Width: 220 mm
- Height/depth: 900 mm
- Lamp type: LED not exchangeable
- Lamp holder: Other
- Material cover: Plastic, transparent
- Type of control gear: LED operating device current-controlled
- Colour rendering index CRI: 80-89
- Degree of protection (IP): IP65
- Impact strength: IK10
- Number of poles: 2
- With control gear: Yes
- Power factor: 100
- Beam angle adjustable: No
- Colour of light adjustable: No
- Compatible with Amazon Alexa: No
- Compatible with Apple HomeKit: No
- Compatible with Google Assistant: No
- Constant light output (CLO): No
- Luminous flux adjustable: No
- Conductor cross section: 6 mm²
- Colour of light: White
- Light distributor: Other
- Light distribution: Symmetric
- Beam angle: 41-80° - Wide beam
- Luminous intensity: 740 cd
- Luminaire efficacy: 46 lm/W
- Light outlet: Direct
- Suitable for number of light sources: 1
- Suitable for lamp power: 16 W
- Housing material: Aluminium
- Housing material quality: Other
- With base plate: Yes
- With light source: Yes
- With light sensor: No
- With movement sensor: No
- IFTTT support available: No
- Nominal voltage: 230 V
- Rated lifetime L70/B50 at 25 °C: 0 h
- Protection class according to IEC 61140: II
- Degree of protection (NEMA): Other
- Voltage type: AC
- Type of luminaire: Bollard luminaire
- Type of wiring: Suitable for loop-through wiring
- Exchangeable control gear: No
- Surface protection: Other
- Connection type: Other
- Lowest energy efficiency class of the exchangeable lamp: A
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- Highest energy efficiency class of the exchangeable lamp: A+
- Energy efficiency class of the provided exchangeable built-in lamp: A+
