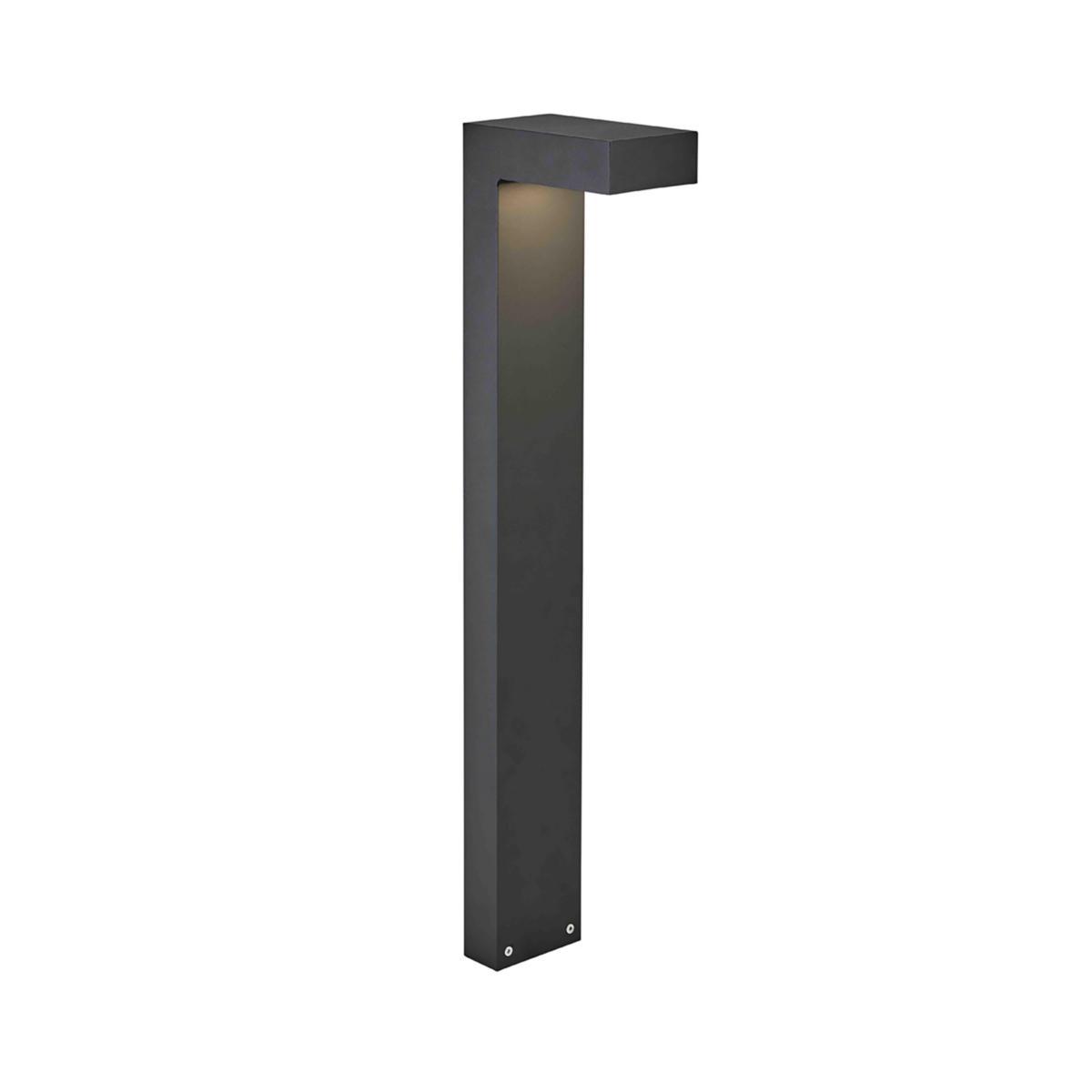

Bollard LED Asker, Norlys
BOLLARD ASKER 1311GR
Artikelnummer: Lev. artikelnr:
7748050
1311GR
för att se saldo och pris
LED bollard in cast aluminum. Available in the colors aluminum or graphite. Bazzy -free bollard with indirect light.
Type 1310, 1311 and 5124: Fits in both modern and traditional environments. Symmetrical light. Dazzling and indirect light.
Type 1314, 1318: Suitable for public environments such as common areas, parking and walkways where a lot of light is needed. Asymmetric light.
Type 1310, 1311 and 5124: Fits in both modern and traditional environments. Symmetrical light. Dazzling and indirect light.
Type 1314, 1318: Suitable for public environments such as common areas, parking and walkways where a lot of light is needed. Asymmetric light.
- Article number: 7748050
- Suppl. article no: 1311GR
- Ean no: 7042891311080
- Material class QU172A
Teknisk data
- Type: 1311
- Max. system power: 9.5 W
- Rated luminous flux according to IEC 62722-2-1: 585 lm
- Colour temperature: 3000 K
- Housing colour: Anthracite
- Height/depth: 200 mm
- Length: 850 mm
- Lamp type: LED exchangeable
- Degree of protection (IP): IP65
- With light source: Yes
- With light sensor: No
- With movement sensor: No
- Suitable for number of light sources: 1
- Lamp holder: Other
- Housing material: Aluminium
- Housing material quality: Other
- Surface protection: Powder coating
- Type of luminaire: Bollard luminaire
- With base plate: Yes
- Material cover: Plastic, structured
- Protection class according to IEC 61140: I
- Colour of light: White
- Luminaire efficacy: 61.6 lm/W
- Suitable for lamp power: 9.5 W
- Number of poles: 3
- Rated lifetime L70/B50 at 25 °C: 50000 h
- Degree of protection (NEMA): Other
- Width: 110 mm
- Type of control gear: LED operating device current-controlled
- Colour rendering index CRI: 80-89
- With control gear: Yes
- Conductor cross section: 2.5 mm²
- Light distributor: Other
- Nominal voltage: 220-240 V
- Impact strength: IK09
- Voltage type: AC
- Type of wiring: Loop-through wiring included
- Power factor: 0.9
- Light distribution: Symmetric
- Light outlet: Direct
- Beam angle: Wide beam 41-80°
- Exchangeable control gear: Yes
- Connection type: Other
- REACH Date: 2021-06-15
- REACH Information obligation: No
