AhlsellProductsElectricLighting 70-8375 General use luminairesSauna luminaires and accessoriesSauna luminaires
Ifö Electric

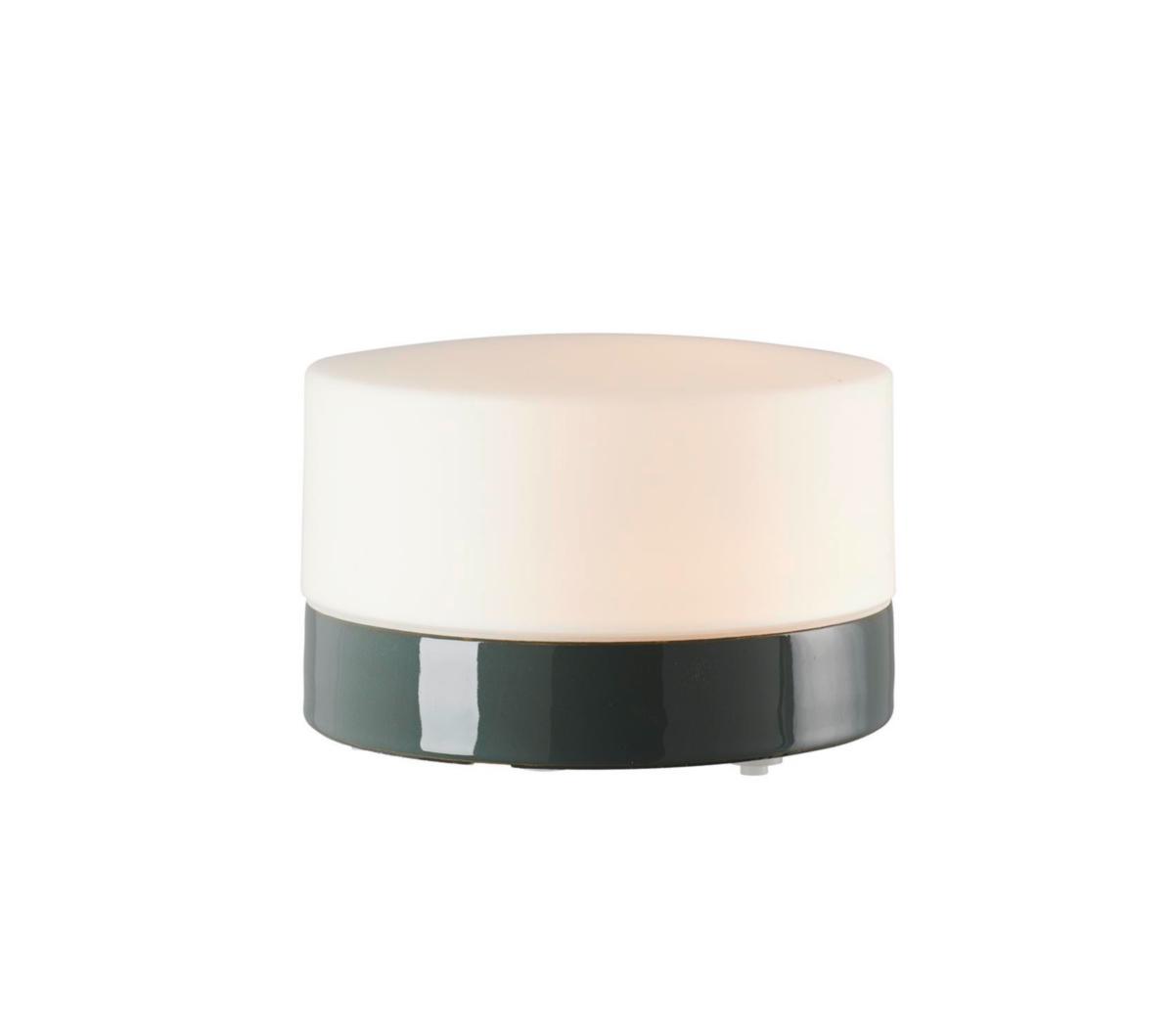

Ceiling fixture Opus 200 Sauna
FXT OPUB 200 G RAK IP44 E27 8261-509-12/6183-30
Article number: Suppl. article no:
7530446
8261-509-12/6183-30
to see price and stock
Opus 200 is a luminaire with an elegant cylindrical shape in a timeless design. It has a ceramic base and matte opal dome. Can be placed wall or ceiling mounted in the sauna.
- Article number: 7530446
- Suppl. article no: 8261-509-12/6183-30
- Ean no: 7312908261128
- Material class QT6890
Technical data
- Housing colour: Grey
- Height/depth: 131 mm
- Degree of protection (IP): IP44
- Impact strength: IK02
- Type of control gear: Not required
- With control gear: No
- Material cover: Glass matt/satinized
- Voltage type: AC
- Number of poles: 2
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Suitable for number of light sources: 1
- Suitable for built-in mounting: No
- Suitable for light line configuration: No
- Suitable for emergency lighting: No
- Suitable for suspended mounting: No
- Suitable for surface mounting: Yes
- Suitable for ceiling mounting: Yes
- Suitable for workplace according to EN 12464-1: No
- Filament test according to IEC 60695-2-11: 650 °C - 30 s
- Covering of the luminaire with thermally insulating material possible: No
- Protection class according to IEC 61140: II
- Housing material: Porcelain
- Lamp holder: E27
- Conductor cross section: 2.5 mm²
- Light distribution: Symmetric
- Light outlet: Direct/indirect
- With movement sensor: No
- With air slots: No
- With light source: No
- With light sensor: No
- Nominal voltage: 230 V
- Type of wiring: Suitable for loop-through wiring
- Type of grid: None
- Beam angle: Open beam/diffuse
- Outer diameter: 202 mm
- Connection type: Screwed terminal
- REACH Date: 2022-02-04
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
