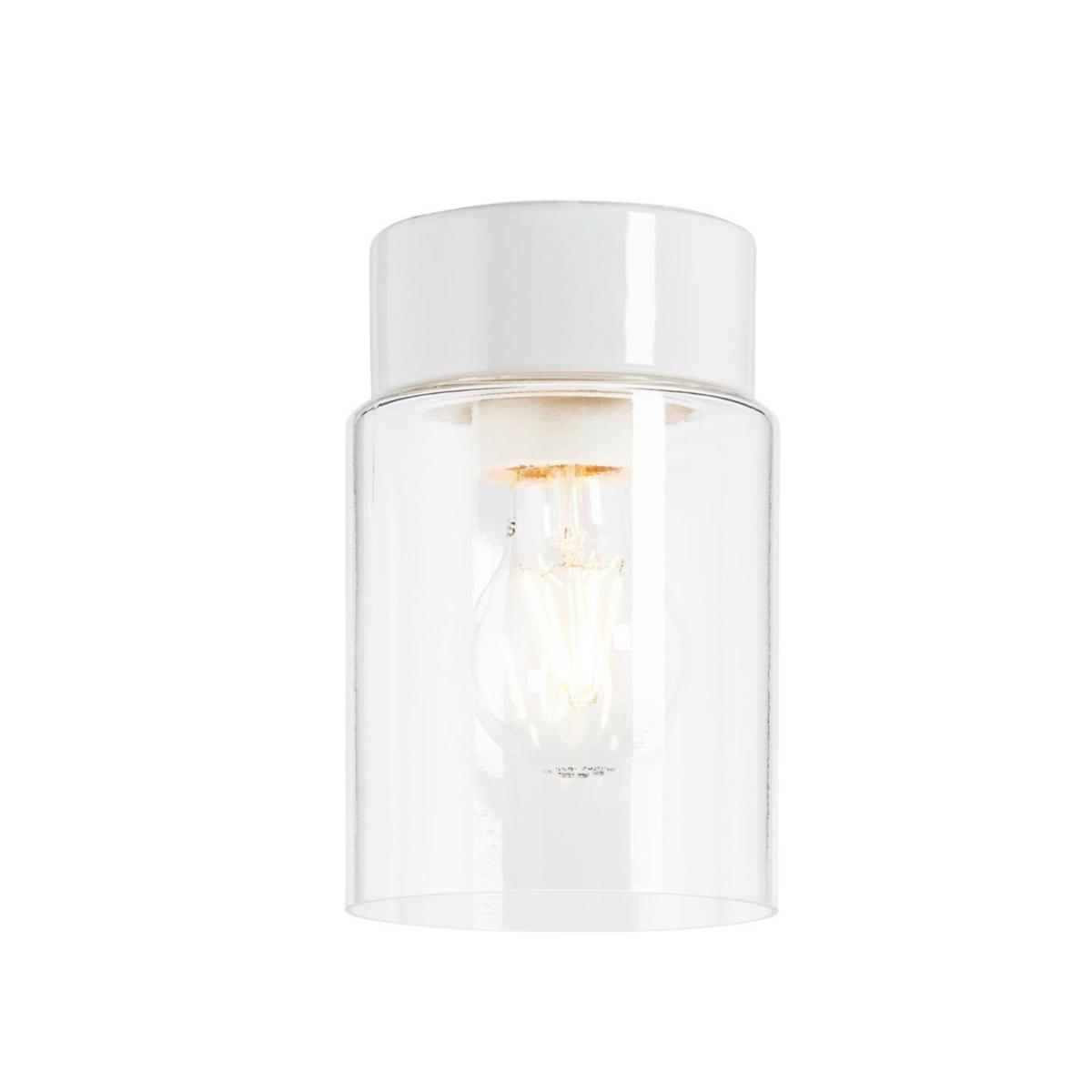

Ceiling luminaire Open Tina

LUM OPEN THAW CLEAR WHITE IP21

Article number:

7502023

Suppl. article no:

07112-510-10

‌
‌
‌

‌
‌

to see price and stock

Ceiling luminaire Open Tina.

Technical data

Housing colour: White
Nominal voltage: 230 V
Voltage type: AC
Beam angle: Open beam/diffuse
Housing material: Porcelain
Material cover: Glass transparent
Lamp holder: E27
Outer diameter: 113 mm
Height/depth: 177 mm
Suitable for number of light sources: 1
Protection class according to IEC 61140: II
Degree of protection (IP): IP21
Type of control gear: Not required
With control gear: No
With movement sensor: No
With air slots: No
With light sensor: No
With light source: No
Suitable for surface mounting: Yes
Suitable for suspended mounting: No
Suitable for built-in mounting: No
Light outlet: Direct/indirect
Light distribution: Symmetric
Suitable for emergency lighting: No
Suitable for ceiling mounting: Yes
Type of grid: None
Impact strength: IK02
Covering of the luminaire with thermally insulating material possible: No
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
Suitable for workplace according to EN 12464-1: No
Number of poles: 2
Dimming 0-10 V: No
Dimming 1-10 V: No
Filament test according to IEC 60695-2-11: 650 °C - 30 s
Conductor cross section: 2.5 mm²
Suitable for light line configuration: No
Type of wiring: Suitable for loop-through wiring
Connection type: Screwed terminal
REACH Date: 2022-02-04
REACH Information obligation: No
