AhlsellProductsElectricLighting 70-8375 General use luminairesPorcelain luminaires and accessoriesComplete luminaires
Ifö Electric

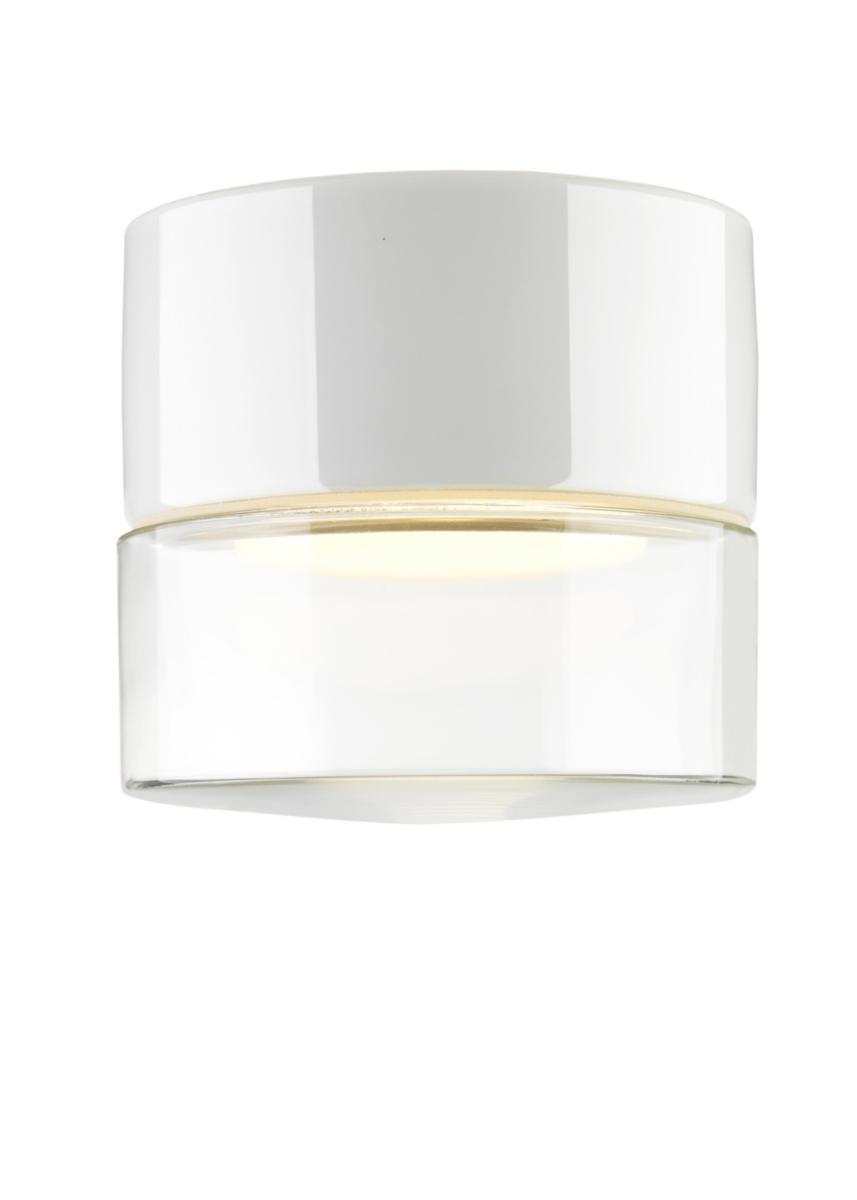

Ceiling luminaire Aton Giza GX53
GIZA CLEAR WHITE IP44 GX53
Article number: Suppl. article no:
7500104
7300-410-10/6190-10
to see price and stock
Ceiling luminaire Aton Giza GX53.
- Article number: 7500104
- Suppl. article no: 7300-410-10/6190-10
- Ean no: 7312907300200
- Material class QT6890
Technical data
- Housing colour: White
- Nominal voltage: 230 V
- Voltage type: AC
- Beam angle: Open beam/diffuse
- Housing material: Porcelain
- Material cover: Glass transparent
- Lamp holder: GX53
- Lamp type: LED exchangeable
- Outer diameter: 116 mm
- Height/depth: 107 mm
- Suitable for number of light sources: 1
- Protection class according to IEC 61140: II
- Degree of protection (IP): IP44
- Type of control gear: Not required
- With control gear: No
- With movement sensor: No
- With air slots: No
- With light sensor: No
- With light source: No
- Suitable for surface mounting: Yes
- Suitable for suspended mounting: No
- Suitable for built-in mounting: No
- Light outlet: Direct/indirect
- Light distribution: Symmetric
- Suitable for emergency lighting: No
- Suitable for ceiling mounting: Yes
- Type of grid: None
- Impact strength: IK02
- Covering of the luminaire with thermally insulating material possible: No
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Suitable for workplace according to EN 12464-1: No
- Number of poles: 2
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Filament test according to IEC 60695-2-11: 650 °C - 30 s
- Conductor cross section: 2.5 mm²
- Suitable for light line configuration: No
- Type of wiring: Suitable for loop-through wiring
- Connection type: Screwed terminal
- REACH Date: 2022-02-04
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
