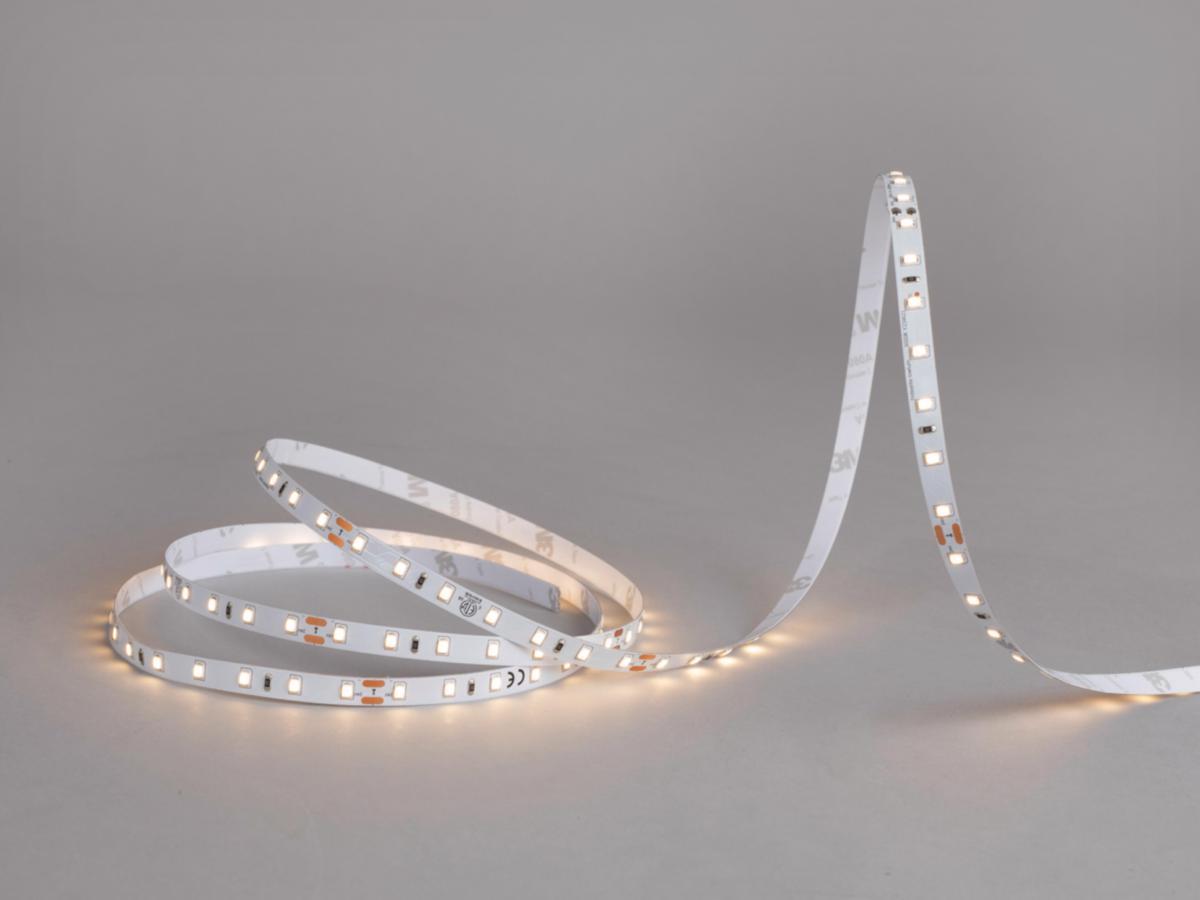

LEDstrip 24V IP20 is available with three light fluxes, Low, Mid and High, to make it easier to find the right light for the right place. Do you want a subtle and relaxed atmosphere? Select Low. Do you need powerful lighting to highlight specific areas? Select High. Perfect when you want to adapt the light to create character regardless of the environment. Fits perfectly in our range of aluminum profiles. Very good color reproduction, RA>90. Supplied as standard in five meter rolls with two meter connection cable at each end, a quick connect and self-adhesive tape for easy assembly. Five-meter packages contain products to be able to create three different lengths according to your wishes. LEDstrip 24V can also be custom-ordered in desired lengths. Drives are ordered separately according to the desired fog technology and location.
- Article number: 7509820
- Suppl. article no: 4851
- Ean no: 7392971149448
- Material class QT7620
Technical data
- Packagin Size: 1 PCS/32 PCS
- Energy label: F
- Colour temperature: 2700 K
- Length: 5000 mm
- Length of particular segments: 100 mm
- Lamp power per meter: 4.4 W
- Number of nodes per meter: 70
- Degree of protection (IP): IP20
- Width: 8 mm
- Height/depth: 2 mm
- Lamp voltage: 24 V
- Voltage type: DC
- Self-adhesive: Yes
- Beam angle: 120 °
- With connection set: Yes
- With end piece: No
- Lowest bending radius: 60 mm
- Model: Strip
- Type of control gear: LED operating device voltage-controlled
- Colour rendering index CRI: 90-100
- Luminous flux per meter: 490 lm
- Colour of light: White
- Lamp type: LED not exchangeable
- With protective cover: No
- Mounting method: Surface mounting
- Rated lifetime L70/B50 at 25 °C: 75000 h
- Protection class according to IEC 61140: III
- Type of wiring: Loop-through wiring included
- Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq): 82 %
- Colour of light adjustable: No
- Luminous flux adjustable: Continuously variable
- Suitable for dimmer: Yes
- Luminaire efficacy: 111.4 lm/W
- Energy efficiency class of the light source according to EU regulation 2019/2015: F
- Connection type: Push-in clamp
- REACH Date: 2023-11-24
- REACH Information obligation: No
