Bellalite

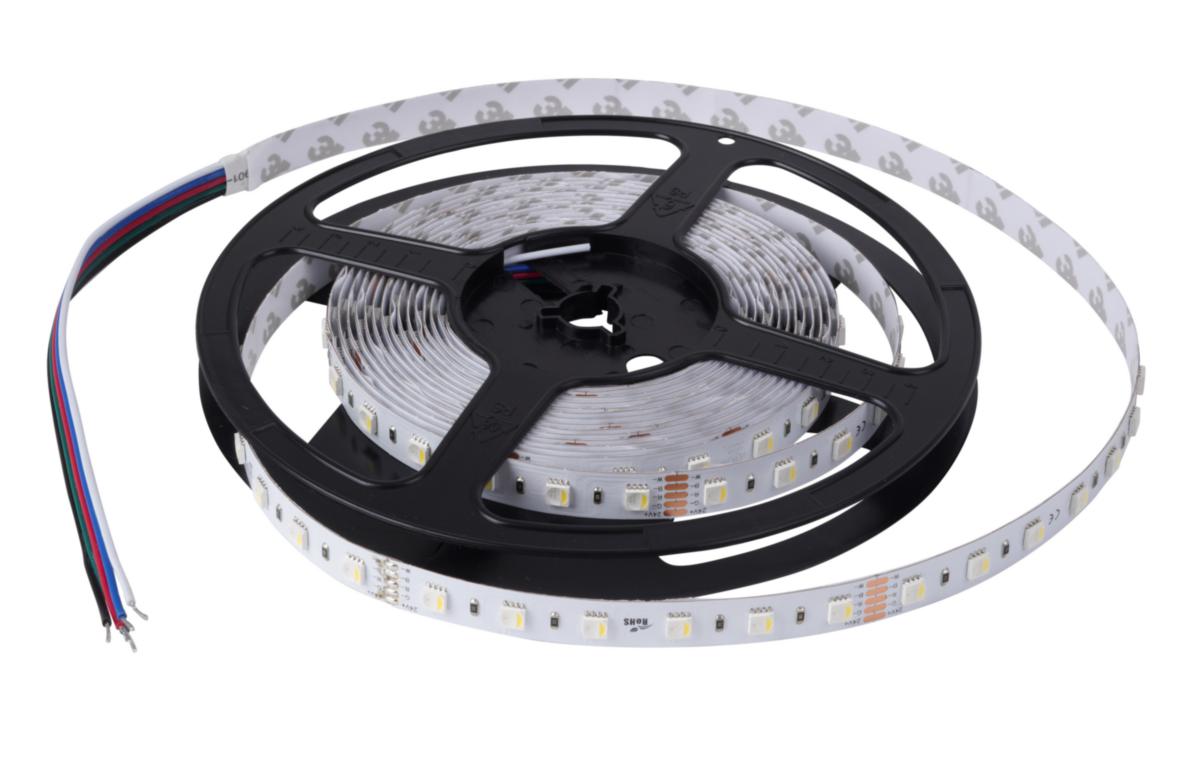

LED strip D560 RGBW
LED Strip, 24VDC, RGB+6K, 5m
Article number: Suppl. article no:
7509801
D5602412NO0RGBWCDA02
to see price and stock
LED strip, 24VDC, RGB+6000K, 19.2W/m, 700lm/m, roll 5m
- Article number: 7509801
- Suppl. article no: D5602412NO0RGBWCDA02
- Material class QT7680
Technical data
- Design: IP20
- Max. system power: 96 W
- Length of particular segments: 100 mm
- Lamp power per meter: 19.2 W
- Number of nodes per meter: 60
- Degree of protection (IP): IP20
- Width: 12 mm
- Height/depth: 2.1 mm
- Voltage type: DC
- Beam angle: 120 °
- Lowest bending radius: 60 mm
- Model: Strip
- Number of poles: 5
- Type of control gear: LED operating device voltage-controlled
- Luminous flux per meter: 700 lm
- Colour of light: RGBW
- Lamp type: LED not exchangeable
- Mounting method: Surface mounting/recessed mounting
- Colour of light adjustable: Continuously variable
- Suitable for dimmer: Yes
- Exchangeable control gear: Yes
- Connection type: Solder
- REACH Date: 2021-01-22
- REACH Information obligation: No
