Hide-a-lite

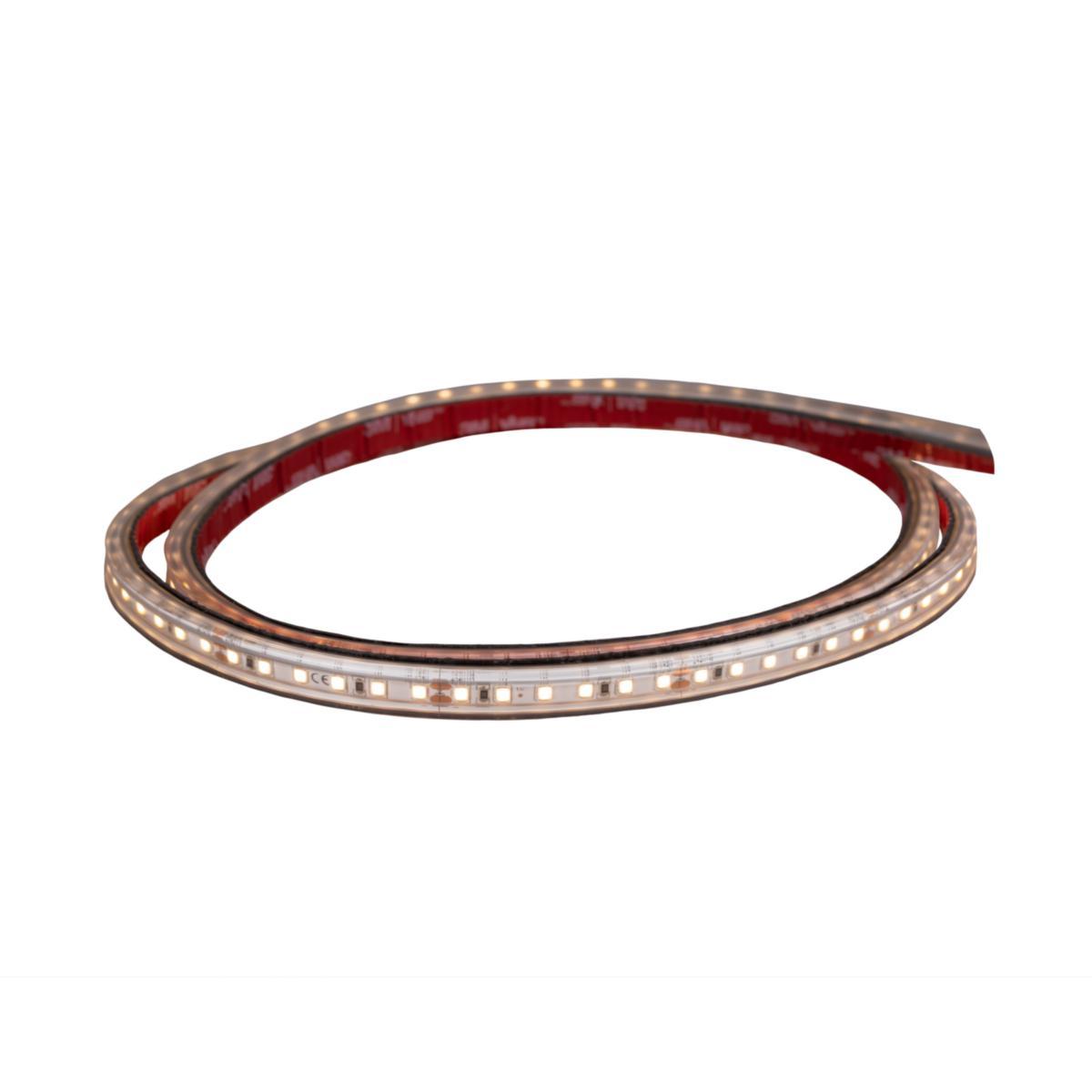

LEDstrip 24V Midlum, Hide-a-Lite
LEDSTRIP 24V IP67 M.LUM 927 5M
Article number: Suppl. article no:
7507429
7507429
to see price and stock

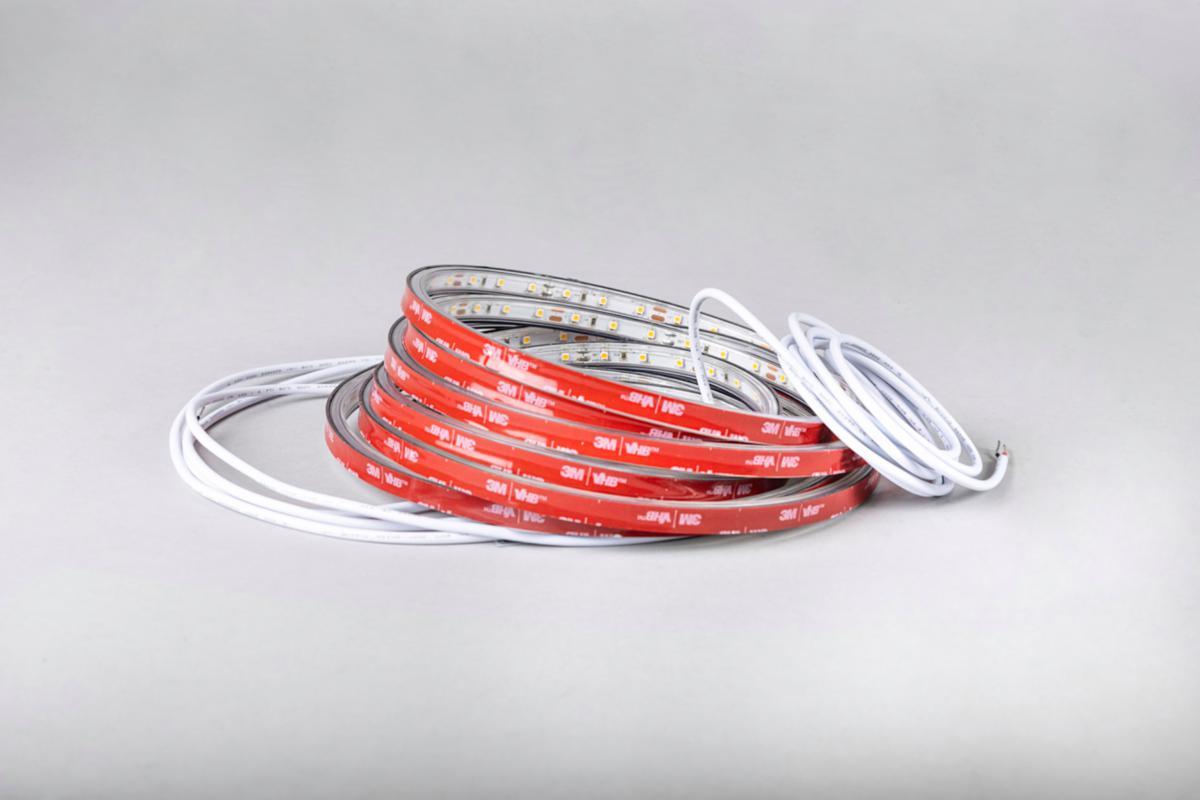

Basic version of our 24V LED strip, with 120 LED / m you get a lot of light and good efficiency. The shorter distance between the diodes gives a homogeneous light with an opal cover even in lower profiles. Delivered in 5m lengths with self-adhesive tape, 2m connection cable, 1m extra connection cable and 2 10cm shrink tubing, 10 clips and 20 screws. Can also be made to measure in desired lengths, cutting interval 50mm and maximum length 10m. Drive device separate after desired fog technology and location.
- Article number: 7507429
- Suppl. article no: 7507429
- Ean no: 7392971141930
- Material class QT762A
Technical data
- Packagin Size: 1 ST/15 ST
- Energy label: F
- Max. system power: 12 W
- Colour temperature: 2700 K
- Length: 5 m
- Length of particular segments: 50 mm
- Lamp power per meter: 12 W
- Number of nodes per meter: 120
- Degree of protection (IP): IP67
- Width: 10 mm
- Height/depth: 6 mm
- Lamp voltage: 24 V
- Voltage type: DC
- Self-adhesive: Yes
- Beam angle: 120 °
- With connection set: Yes
- With end piece: No
- Lowest bending radius: 30 mm
- Model: Strip
- Number of nodes per foot: 40
- Number of poles: 2
- Type of control gear: LED operating device voltage-controlled
- Colour rendering index CRI: 90-100
- Lamp power per foot: 4 W
- Conductor cross section: 0.5 mm²
- Luminous flux per meter: 970 lm
- Colour of light: White
- Lamp type: LED not exchangeable
- With protective cover: Yes
- Mounting method: Surface mounting/recessed mounting
- Rated lifetime L70/B50 at 25 °C: 50000 h
- Protection class according to IEC 61140: III
- Type of wiring: Ending
- Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq): 77 %
- Beam angle adjustable: No
- Colour of light adjustable: No
- Constant light output (CLO): No
- Luminous flux adjustable: Continuously variable
- Suitable for dimmer: Yes
- Connection type: Solder
- REACH Date: 2022-06-01
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- REACH Information obligation: No
