Hide-a-lite

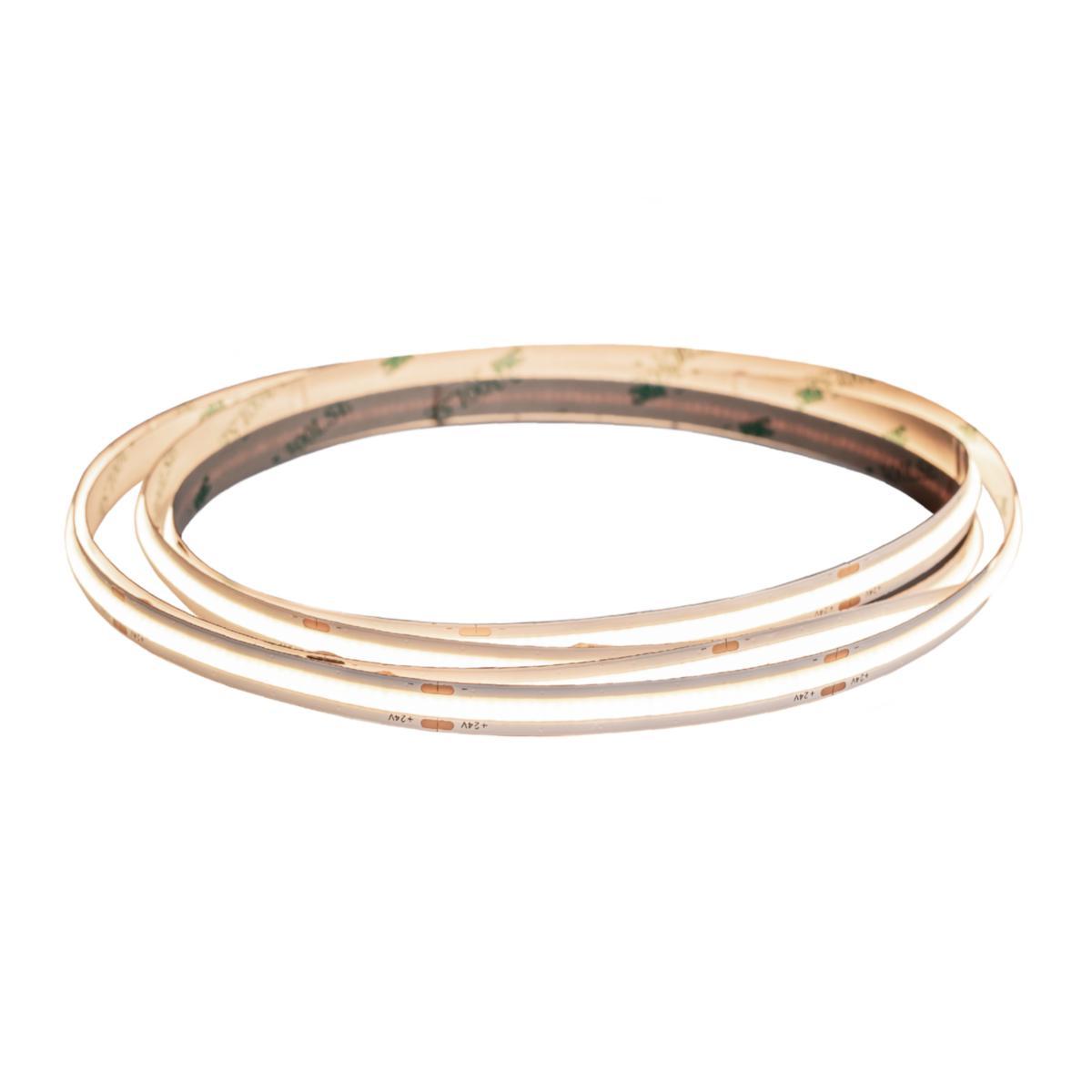

LED strip Line 24V, Hide-a-Lite
LEDSTRIP 24V LINE IP20 927 5M LINE
Article number: Suppl. article no:
7506515
7506515
to see price and stock

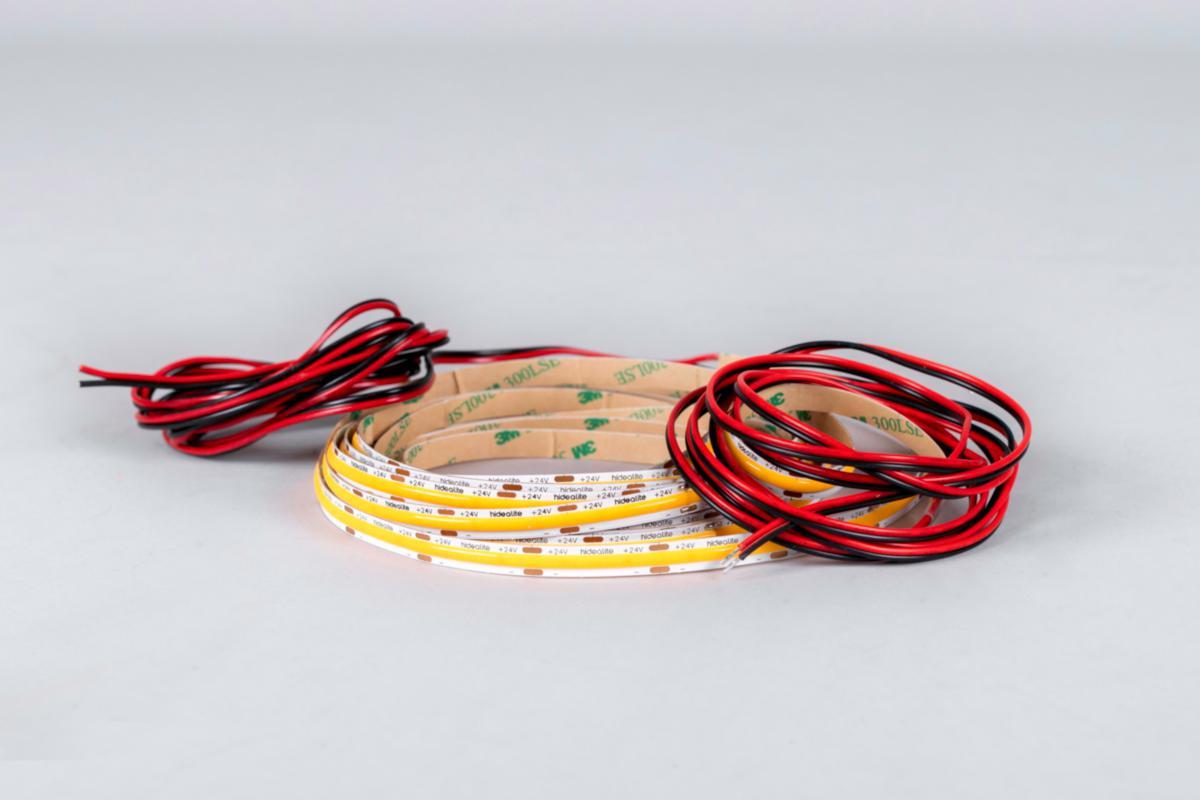

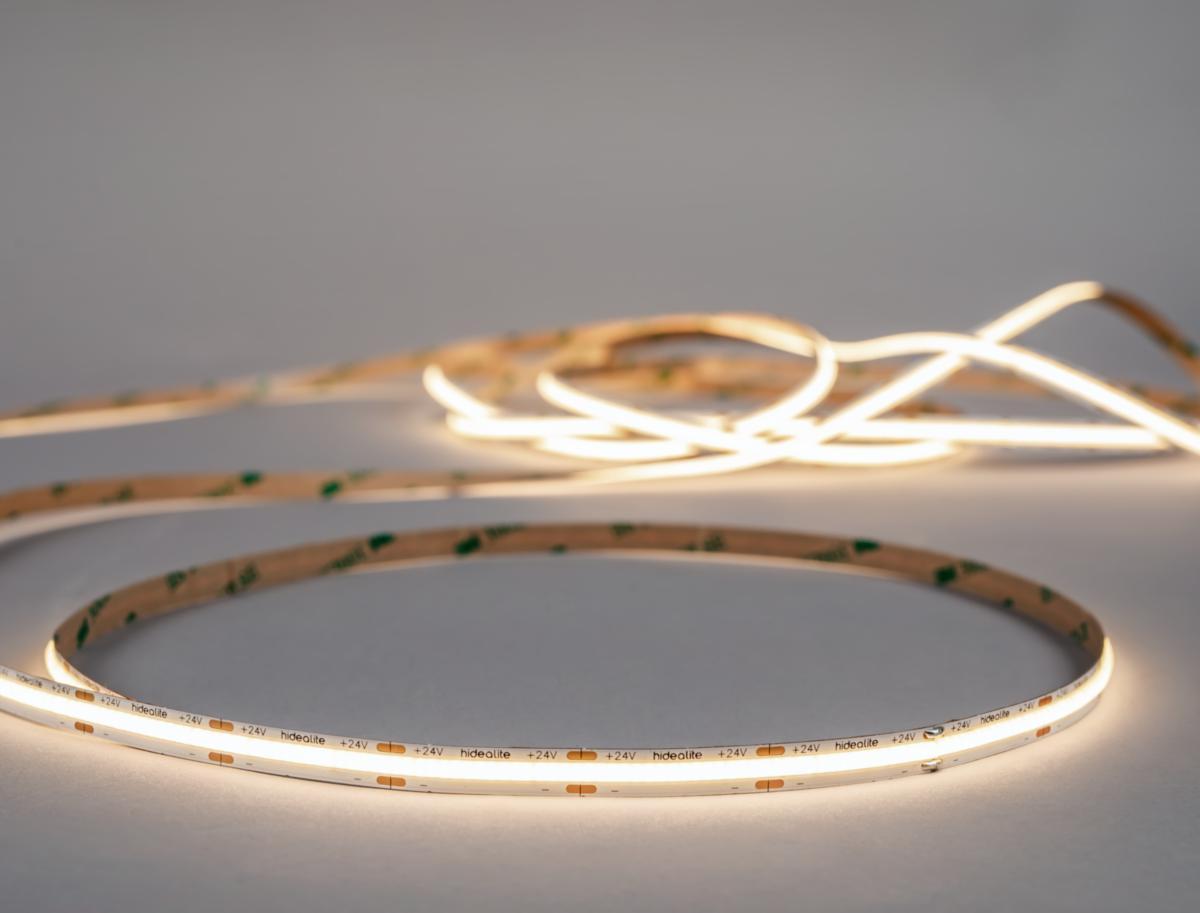

LED strip with technology that hides LED chips and electronics under a homogeneous phosphor / silicone layer. With a short distance between diodes, an evenly luminous line is created without a profile or cover cap. COB technology with high luminous flux and very good efficiency. Cutting interval 30 mm and seamless splicing make it easy to create custom lengths. Delivered as standard in rolls of 5 m with self-adhesive tape and 2 m connecting cable. Drives are ordered separately according to the desired fog technology and location. Maximum length 5m. Can also be purchased per running meter.
- Article number: 7506515
- Suppl. article no: 7506515
- Ean no: 7392971139180
- Material class QT7620
Technical data
- Packagin Size: 1 ST/45 ST
- Energy label: F
- Max. system power: 11 W
- Colour temperature: 2700 K
- Length: 5000 mm
- Length of particular segments: 30 mm
- Lamp power per meter: 10 W
- Number of nodes per meter: 512
- Degree of protection (IP): IP20
- Width: 8 mm
- Height/depth: 2 mm
- Lamp voltage: 24 V
- Self-adhesive: Yes
- Beam angle: 150 °
- With connection set: Yes
- With end piece: No
- Lowest bending radius: 60 mm
- Model: Strip
- Number of poles: 2
- Type of control gear: LED operating device voltage-controlled
- Colour rendering index CRI: 90-100
- Conductor cross section: 0.5 mm²
- Luminous flux per meter: 900 lm
- Colour of light: White
- Lamp type: LED not exchangeable
- With protective cover: No
- Mounting method: Surface mounting
- Rated lifetime L70/B50 at 25 °C: 50000 h
- Protection class according to IEC 61140: III
- Type of wiring: Suitable for loop-through wiring
- Connection type: Solder
- REACH Date: 2022-06-01
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- REACH Information obligation: No
