Hide-a-lite

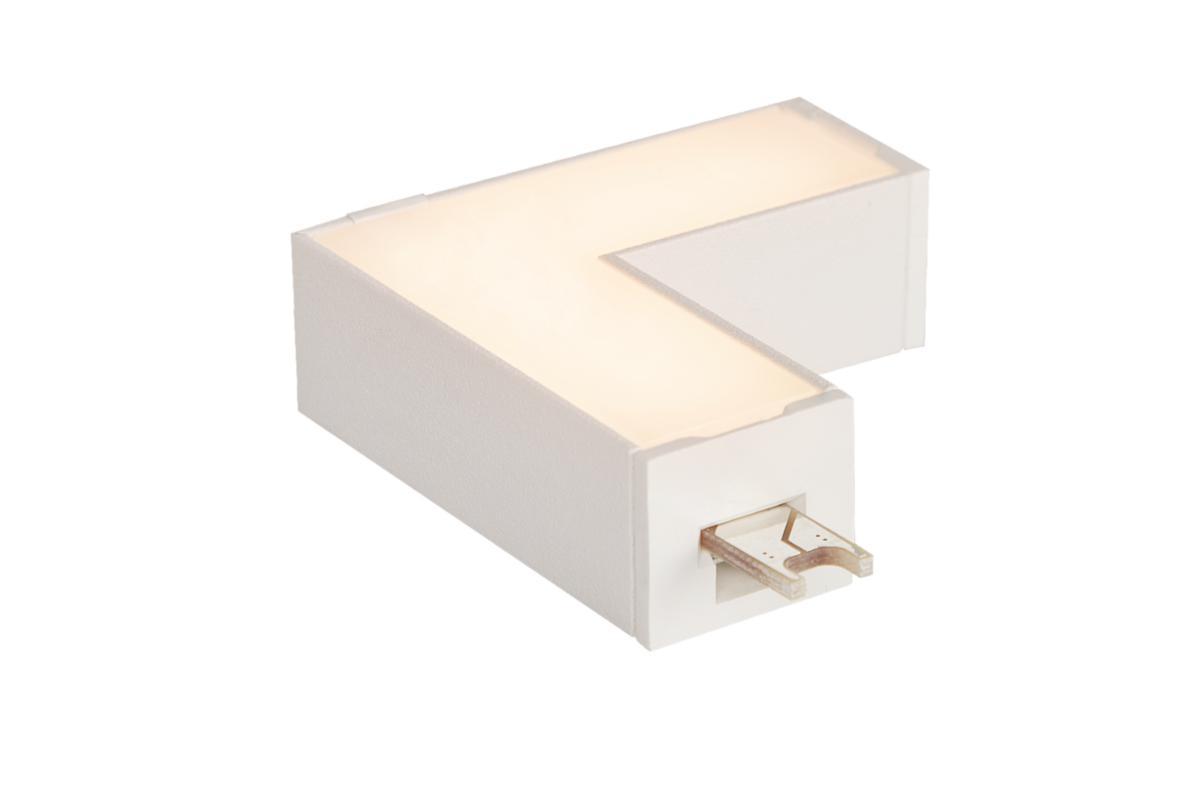

LED strip Extend G2 Corner, Hide-a-lite
LED STRIP EXTE G2 CORNER 2700K LEDLIST EXTEND G2 CORNER 2700K
Article number: Suppl. article no:
7503996
7503996
to see price and stock
LED strip in 90 ° angle of white lacquered aluminum with high luminous flux, good color reproduction and an evenly homogeneous light. Mounted with double-sided adhesive tape and screws or with hidden clips. Perfect alternative to fluorescent lamps and spotlights as base cabinet lighting. Can be linked together up to 4m with link pins and / or link cables. Supplied with connection cable 2m, link cable 25cm, link pins and brackets. Connects to LED transformer 24VDC. Linkable touch dimmer is available as an accessory.
- Article number: 7503996
- Suppl. article no: 7503996
- Ean no: 7392971132594
- Material class QT762A
Technical data
- Packagin Size: 1 ST/100 ST
- Max. system power: 1.1 W
- Colour temperature: 2700 K
- Length: 50 mm
- Lamp power per meter: 12 W
- Number of nodes per meter: 112
- Degree of protection (IP): IP21
- Width: 19 mm
- Height/depth: 16 mm
- Lamp voltage: 24 V
- Voltage type: DC
- Self-adhesive: No
- Beam angle: 110 °
- With connection set: Yes
- With end piece: Yes
- Model: Strip
- Number of poles: 2
- Type of control gear: LED operating device voltage-controlled
- Colour rendering index CRI: 90-100
- Colour of light: White
- Lamp type: LED not exchangeable
- With protective cover: Yes
- Mounting method: Surface mounting
- Rated lifetime L70/B50 at 25 °C: 90000 h
- Protection class according to IEC 61140: III
- Type of wiring: Loop-through wiring included
- REACH Date: 2022-06-01
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- REACH Information obligation: No
