AhlsellProductsElectricLighting 70-8375 General use luminairesLight strips and accessoriesLight strips LED
SG Armaturen
Slimline Pro, SG-Armaturen

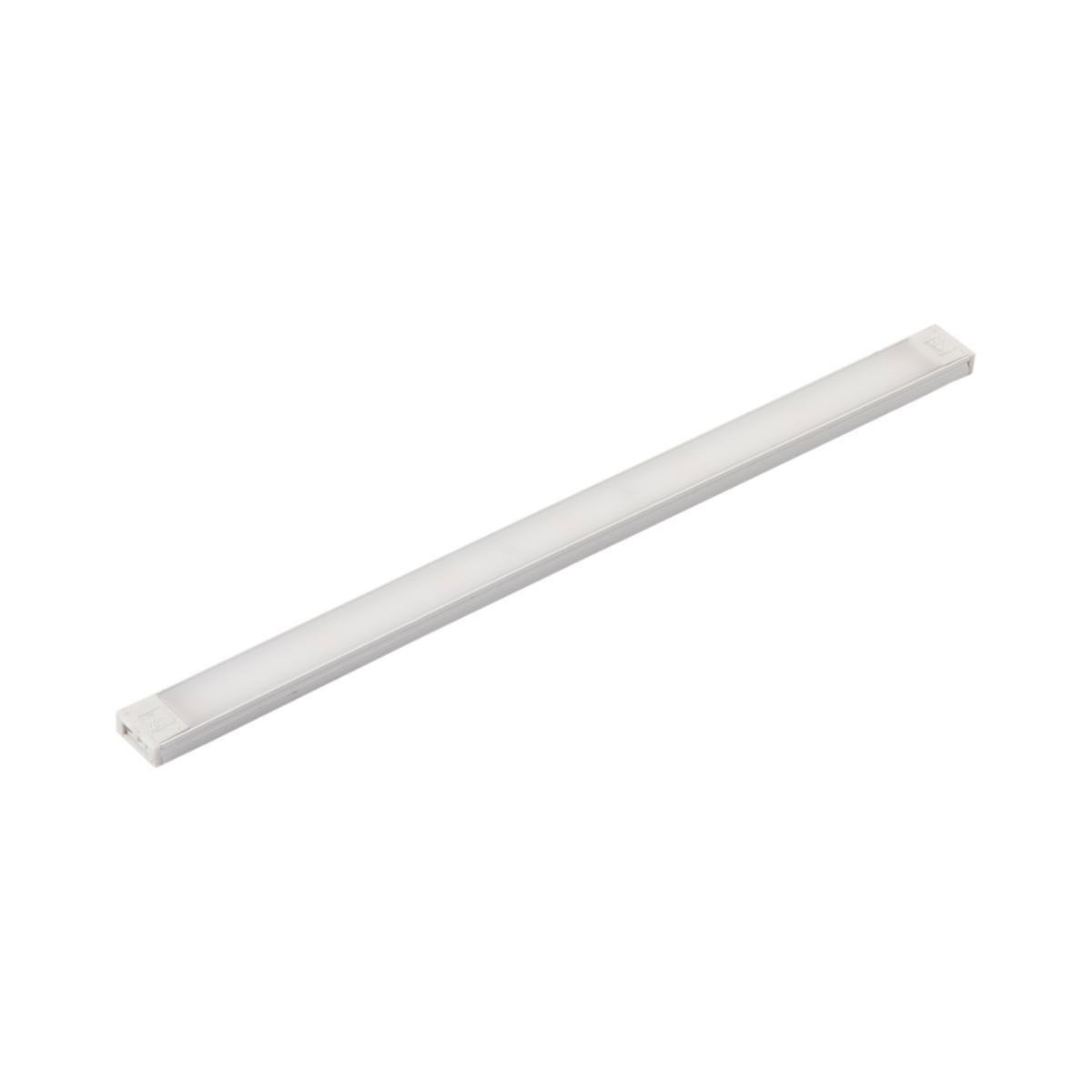

LUMINAIRE LED 4W 27K 300LM SLIMLINE PRO 270MM 2700K
Article number: Suppl. article no:
7503721
391230
to see price and stock
Slimline is a complete LED system for shelf and bench lighting and is available in three lengths and two color temperatures. Can be easily connected for a seamless length of your choice. End piece, straight joint and screw and clips are included with each luminaire. High luminous flux, wide light scattering and excellent color reproduction make Slimline useful in many places. Slimline Pro is brighter without visible diodes in the same thin profile.
- Article number: 7503721
- Suppl. article no: 391230
- Ean no: 7021983912305
- Material class QT0300
Technical data
- Packagin Size: 1 ST/20 ST/20 ST/5120 ST
- Max. system power: 4 W
- Colour temperature: 2700 K
- Length: 294 mm
- Length of particular segments: 270 mm
- Lamp power per meter: 13 W
- Number of nodes per meter: 144
- Degree of protection (IP): IP20
- Width: 17 mm
- Height/depth: 7 mm
- Lamp voltage: 24 V
- Voltage type: DC
- Self-adhesive: Yes
- Diameter: 0 mm
- Beam angle: 110 °
- With connection set: No
- With end piece: Yes
- Lowest bending radius: 0 mm
- Model: Strip
- Number of nodes per foot: 43
- Number of poles: 2
- Type of control gear: LED operating device voltage-controlled
- Power factor: 100
- Colour rendering index CRI: 90-100
- Lamp power per foot: 4 W
- Conductor cross section: 0 mm²
- Luminous flux per meter: 1815 lm
- Colour of light: White
- Lamp type: LED not exchangeable
- With protective cover: No
- Mounting method: Surface mounting
- Rated lifetime L70/B50 at 25 °C: 50000 h
- Protection class according to IEC 61140: III
- Degree of protection (NEMA): Other
- Type of wiring: Ending
- Beam angle adjustable: No
- IFTTT support available: No
- Compatible with Amazon Alexa: No
- Compatible with Apple HomeKit: No
- Compatible with Google Assistant: No
- Connection type: Other
- REACH Date: 2021-12-17
- Lowest energy efficiency class of the exchangeable lamp: A+
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- REACH Information obligation: No
- Highest energy efficiency class of the exchangeable lamp: A+
- Energy efficiency class of the provided exchangeable built-in lamp: A+
