AhlsellProductsElectricLighting 70-8375 General use luminairesLight strips and accessoriesLight strips LED
Hide-a-lite
LEDstrip R IP20, Hide-a-lite

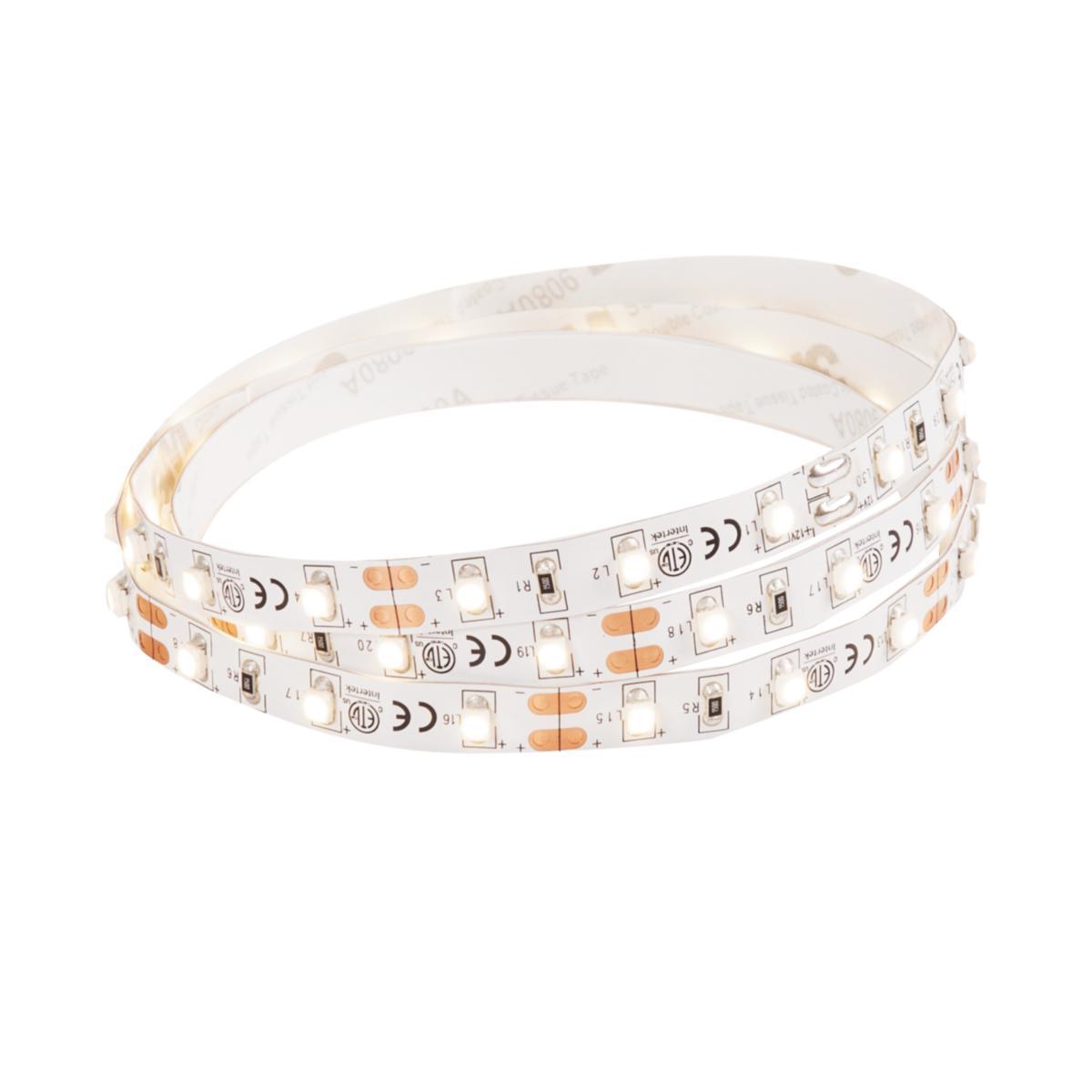

LEDSTRIP R IP20 12V 3000K 5M
Article number: Suppl. article no:
7501313
7501313
to see price and stock
LED strip R has a good light quality and high colour reproduction, RA>90. Is mounted in a suitable aluminium profile or on another suitable (heat resistant) surface. Length 5 m, supplied with self adhesive tape for simple installation.
- Article number: 7501313
- Suppl. article no: 7501313
- Ean no: 7392971125589
- Material class QT7620
Technical data
- Packagin Size: 1 ST/40 ST
- Energy label: G
- Type: LEDSTRIP R
- Max. system power: 26.4 W
- Colour temperature: 3000 K
- Length: 5000 mm
- Length of particular segments: 100 mm
- Lamp power per meter: 4.8 W
- Number of nodes per meter: 60
- Degree of protection (IP): IP20
- Width: 8 mm
- Height/depth: 3 mm
- Lamp voltage: 12 V
- Voltage type: DC
- Self-adhesive: Yes
- Beam angle: 120 °
- With connection set: Yes
- With end piece: Yes
- Lowest bending radius: 10 mm
- Model: Strip
- Number of nodes per foot: 18
- Number of poles: 2
- Type of control gear: LED operating device voltage-controlled
- Colour rendering index CRI: 90-100
- Lamp power per foot: 1 W
- Conductor cross section: 0.5 mm²
- Luminous flux per meter: 275 lm
- Colour of light: White
- Lamp type: LED not exchangeable
- With protective cover: No
- Mounting method: Surface mounting
- Rated lifetime L70/B50 at 25 °C: 50000 h
- Protection class according to IEC 61140: III
- Type of wiring: Loop-through wiring included
- REACH Date: 2022-06-01
- Spreading angle: 120°
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- REACH Information obligation: No
