Designlight

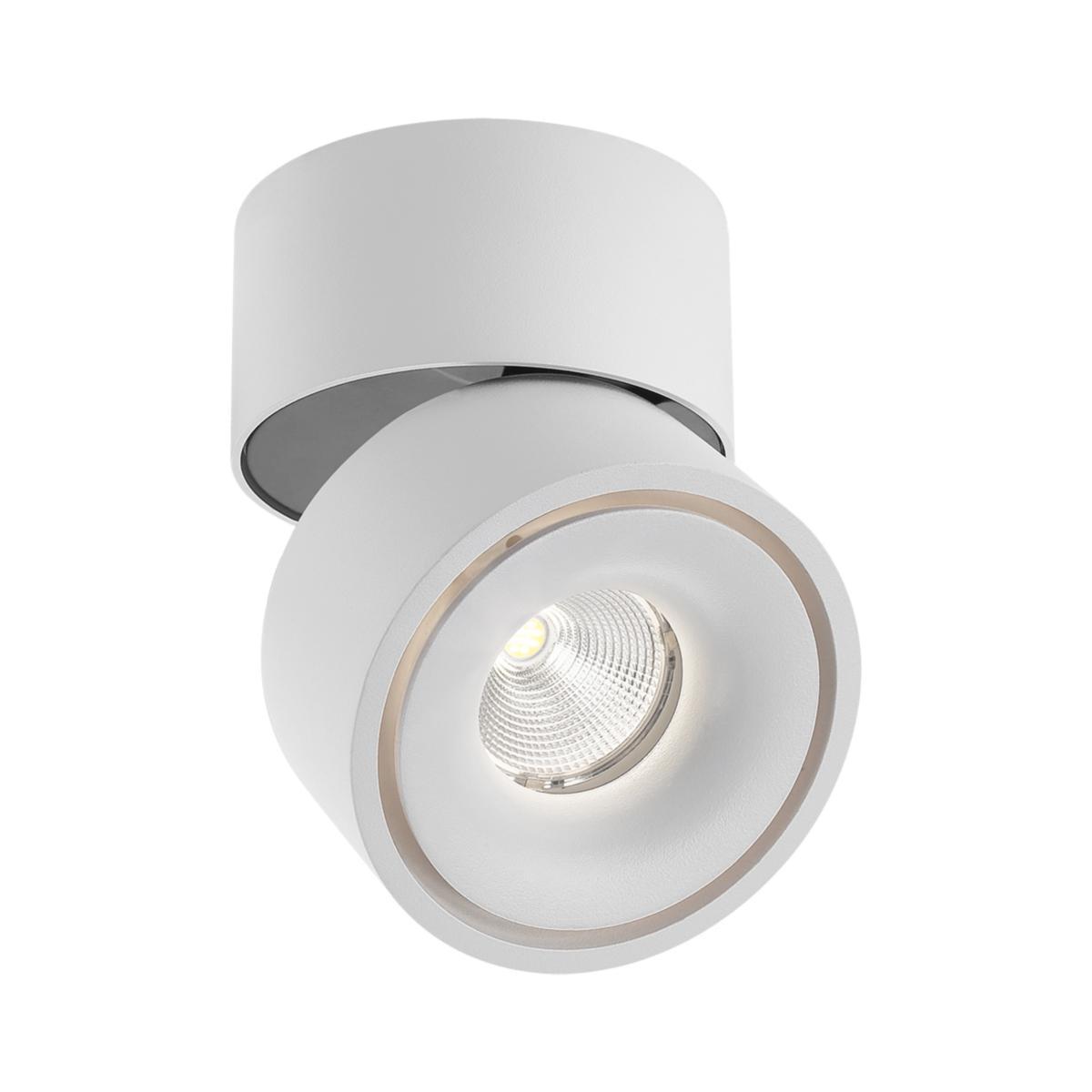

Downlight Moon exterior, Designlight
DOWNL MOON TILT 12W P-186MW
Article number: Suppl. article no:
7474463
P-186MW
to see price and stock
Moon is a series of lamps with a cohesive, stylish design, whether you need recessed, surface-mounted or directional lamps. The lamp's design lets light through the reflector, which contributes to a light cone with diffuse wide spread combined with stronger directed light. lamp gives a full 943 lumens with high light quality (Ra93). Surface-mounted Moon lamps are adjustable in all directions and angular with a full 90 °. the directional lights.
Technical: The lamps are delivered including plug / screw for direct mounting to the ceiling. The back of the lamp has a keyhole with a hole made adapted for the device and ceiling box (cc 70 & 60mm). The lamp's actuator is equipped with a quick connection for both input and parallel connection to the next lamp.
Technical: The lamps are delivered including plug / screw for direct mounting to the ceiling. The back of the lamp has a keyhole with a hole made adapted for the device and ceiling box (cc 70 & 60mm). The lamp's actuator is equipped with a quick connection for both input and parallel connection to the next lamp.
- Article number: 7474463
- Suppl. article no: P-186MW
- Ean no: 7340123803045
- Material class QT4440
Technical data
- Packagin Size: 1 ST/18 ST/18 ST
- Energy label: F
- Type: P-186MW
- Design: 1x12 W
- Max. system power: 12 W
- Colour temperature: 3000 K
- Housing colour: White
- Luminous flux: 943 lm
- Surface brushed: No
- Beam angle: Medium beam 21-40°
- Outer diameter: 100 mm
- Height/depth: 106 mm
- Lamp type: LED not exchangeable
- Adjustability: Rotatable
- With light source: Yes
- Colour of light: White
- With control gear: Yes
- Type of control gear: LED operating device current-controlled
- Luminous intensity: 2238 cd
- Reflector: High-gloss
- Housing material: Aluminium
- Dimming phase cut-off (trailing edge): Yes
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Width: 100 mm
- Dimming phase cut-on (leading edge): Yes
- Degree of protection (IP): IP20
- Dimmable: Yes
- Light distribution: Symmetric
- Protection class according to IEC 61140: I
- Light distributor: Reflector
- Light outlet: Direct
- Suitable for built-in mounting: No
- Colour rendering index CRI: 90-100
- Suitable for clamp-mounting: No
- Suitable for pedestal/floor mounting: No
- Suitable for suspended mounting: No
- Suitable for light-track mounting: No
- Suitable for traverse mounting: No
- Suitable for wall mounting: Yes
- Suitable for surface mounting: Yes
- Length: 100 mm
- With light sensor: No
- With movement sensor: No
- Nominal voltage: 230 V
- Voltage type: AC
- Rated lifetime L70/B50 at 25 °C: 40000 h
- Suitable for ceiling mounting: Yes
- Surface protection: Powder coating
- Colour consistency (McAdam ellipse): SDCM2
- Covering of the luminaire with thermally insulating material possible: No
- Flickering value Pst LM: 0.64
- Beam angle adjustable: No
- Colour of light adjustable: No
- Constant light output (CLO): No
- Luminous flux adjustable: No
- Emergency power supply integrated: No
- Stroboscope effect value SVM: 0.003
- Exchangeable control gear: Yes
- Energy efficiency class of the light source according to EU regulation 2019/2015: F
- REACH Date: 2021-08-16
- LED nominal current at constant current: 300 mA
- REACH Information obligation: No
