AhlsellProductsElectricLighting 70-8374 Downlights, spotlightsSurface-mounted downlights and accessoriesDownlights
SG Armaturen

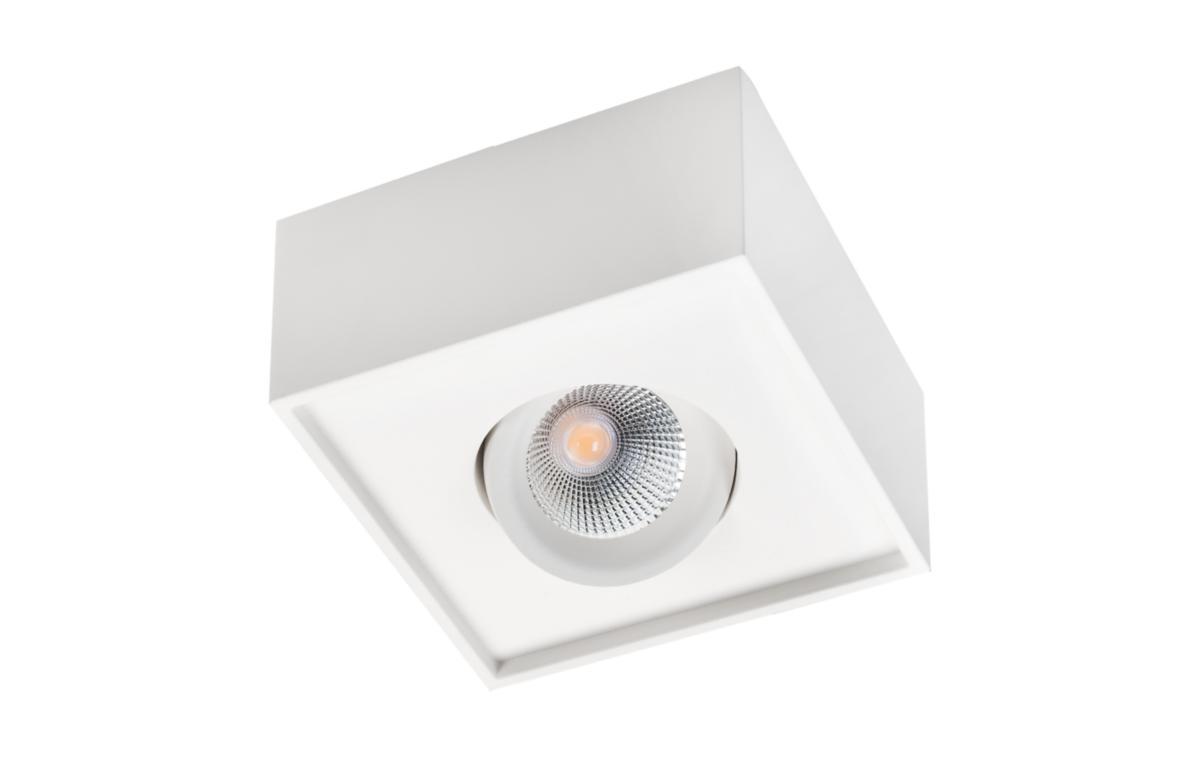

Downlight Cube Lux
DOWNL 7W 540LM 27K IP21 WH CUBE LUX
Article number: Suppl. article no:
7473144
902539
to see price and stock
Effective surface-mounted downlight for indoor and outdoor can be directed 30 ° in all directions in a 360 ° stepless slope. Can be mounted thick roof or against roof box. Quick coupling between luminaire housing and ceiling mount. The luminaire housing is clicked firmly and secured completely by two concealed screws on the sides with the Allen key.
- Article number: 7473144
- Suppl. article no: 902539
- Ean no: 7021989025399
- Replaces art.nbr: 7467885
- Material class QT442A
Technical data
- Packagin Size: 1 ST/20 ST/360 ST/360 ST
- Design: 1x7 W
- Max. system power: 8 W
- Rated luminous flux according to IEC 62722-2- 1: 580 lm
- Colour temperature: 2700 K
- Housing colour: White
- Surface brushed: No
- Beam angle: 41-80° - Wide beam
- Dimming DALI: No
- Dimming DALI-2: No
- Outer diameter: 0 mm
- Built-in diameter: 0 mm
- Height/depth: 65 mm
- Lamp type: LED not exchangeable
- Adjustability: Swivelling
- With light source: Yes
- Colour of light: White
- With control gear: Yes
- Type of control gear: LED operating device current-controlled
- Reflector: High-gloss
- Housing material: Aluminium
- Suitable for workplace according to EN 12464-1: No
- Number of poles: 2
- Dimming phase cut-off (trailing edge): Yes
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Width: 132 mm
- Dimming with push-button: No
- Dimming Sine Wave Reduction: No
- Dimming mains voltage modulation: No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming LineSwitch: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Rated ambient temperature according to IEC 62722-2-1: -40-105 °C
- Power factor: 0.9
- Photobiological safety according to EN 62471: RG1
- Dimming phase cut-on (leading edge): No
- Filament test according to IEC 60695-2-11: None
- Material cover: Glass transparent
- Degree of protection (IP): IP21
- Dimmable: Yes
- Lamp holder: None
- Conductor cross section: 1 mm²
- Light distribution: Symmetric
- Protection class according to IEC 61140: I
- Light distributor: Other
- Light outlet: Direct
- Luminaire efficacy: 73 lm/W
- Suitable for number of light sources: 1
- Colour rendering index CRI: 90-100
- Suitable for built-in mounting: No
- Suitable for clamp-mounting: No
- Suitable for lamp power: 7 W
- Suitable for low voltage cable system: No
- Suitable for pedestal/floor mounting: No
- Suitable for suspended mounting: No
- Suitable for light-track mounting: No
- Suitable for traverse mounting: No
- Suitable for wall mounting: Yes
- Suitable for surface mounting: No
- Length: 132 mm
- With light sensor: No
- With movement sensor: No
- Nominal voltage: 220-240 V
- Voltage type: AC
- Rated lifetime L70/B50 at 25 °C: 0 h
- Rated life time L80/B10 at 25 °C: 0 h
- Suitable for ceiling mounting: Yes
- Degree of protection (NEMA): Other
- Impact strength: IK00
- Dimming Touch and Dim: No
- Type of wiring: Suitable for loop-through wiring
- Connectable conductor cross section: 0.5-2.5 mm²
- Colour consistency (McAdam ellipse): SDCM1
- Covering of the luminaire with thermally insulating material possible: No
- Beam angle adjustable: No
- Colour of light adjustable: No
- Compatible with Amazon Alexa: No
- Compatible with Apple HomeKit: No
- Compatible with Google Assistant: No
- Luminous flux adjustable: No
- IFTTT support available: No
- Exchangeable control gear: No
- Operation by Bluetooth: No
- Connection type: Other
- Luminous flux: 658-763 lm
- Built-in width: 0 mm
- Rated life time L90/B10 at 25 °C: 100000 h
- Rated life time L90/B50 at 25 °C: 0 h
- Built-in length: 0 mm
- Built-in diameter: 0 mm
- REACH Date: 2022-08-29
- Built-in height/depth: 0 mm
- REACH contains candidate substances: Bly
- Lowest energy efficiency class of the exchangeable lamp: A++
- Suitable for wall mounting: Yes
- Suitable for light line configuration: No
- Suitable for emergency lighting: No
- With air slots: No
- Highest energy efficiency class of the exchangeable lamp: A++
- Energy efficiency class of the provided exchangeable built-in lamp: A++
- Dimming GPRS: No
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- REACH Information obligation: Yes
- Emergency power supply integrated: No
- Surface protection housing: Other
- Dimming depending on control gear: No
