SG Armaturen

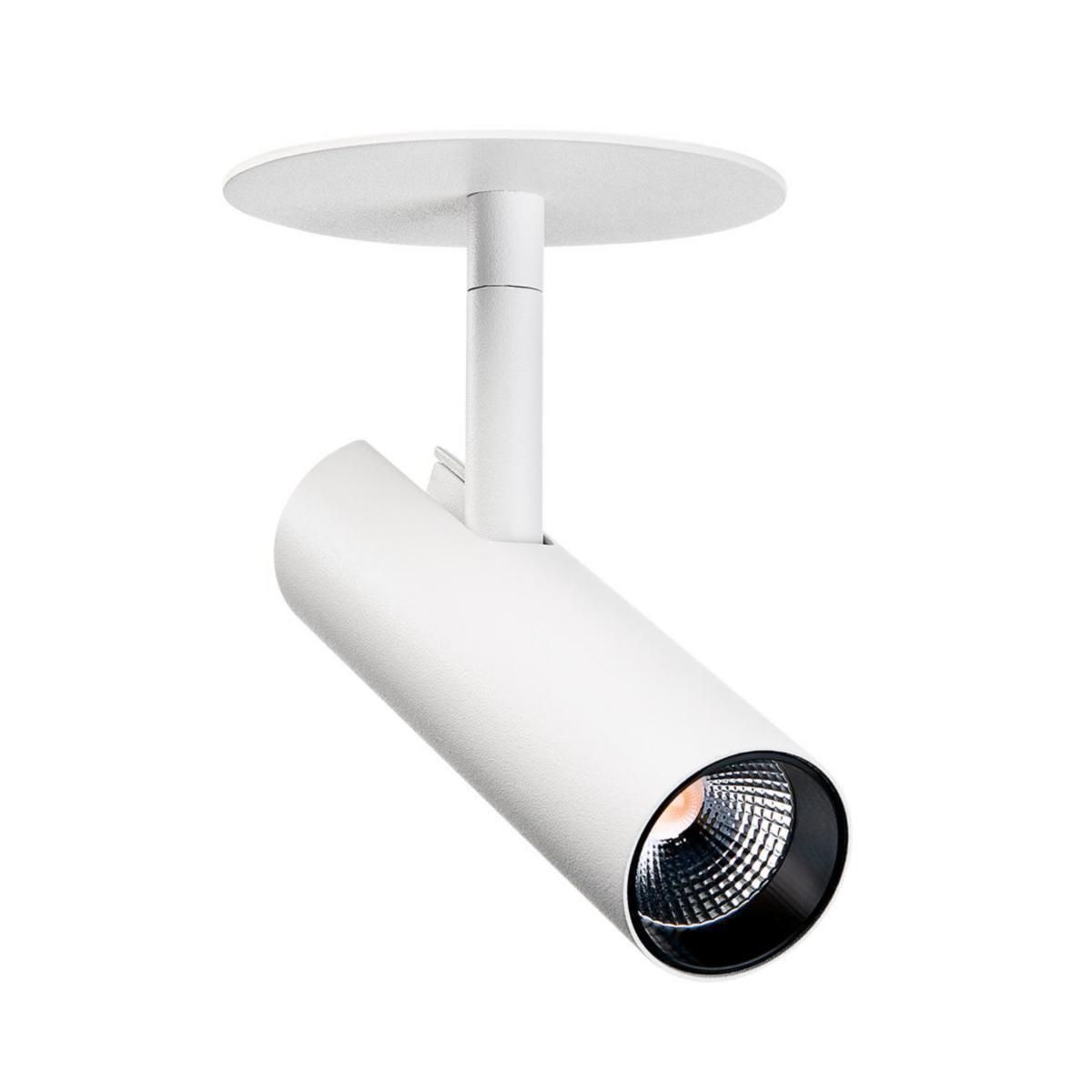

Spotlight Tube Micro R
Tube Micro R White 2700K
Article number: Suppl. article no:
7451852
320707
to see price and stock
Micro R Tube; an elegant and minimalist spotlight for mounting against ceilings or sloping ceilings. It has a powerful light that can be used indirectly for general lighting or directly to emphasize parts of the environment. The spotlight can be rotated and angled and is easy to mount with springs in a Ø68-83 hole and can be connected in series. The luminaire also fits SG's rehab rings (accessories) up to Ø 250. The driver and junction box are IsoSafe and can be mounted directly in the insulation. Tube Micro R is delivered with black baffle as standard, as an option there is a baffle in white and gold.
- Article number: 7451852
- Suppl. article no: 320707
- Ean no: 7021983207074
- Material class QT4420
Technical data
- Packagin Size: 1 PCS/10 PCS
- Max. system power: 15 W
- Rated luminous flux according to IEC 62722-2- 1: 680 lm
- Colour temperature: 2700 K
- Housing colour: White
- Housing material: Aluminium
- Type of control gear: LED operating device current-controlled
- With control gear: Yes
- Outer diameter: 94 mm
- Length: 135 mm
- Beam angle: 21-40° - Medium beam
- Degree of protection (IP): IP20
- Protection class according to IEC 61140: II
- Reflector: High-gloss
- Colour rendering index CRI: 90-100
- Adjustability: Rotating and swivelling
- Colour of light: White
- Light distribution: Symmetric
- Lamp type: LED not exchangeable
- Connectable conductor cross section: 0.75-2.5 mm²
- Number of poles: 2
- Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq): 90 %
- Width: 39 mm
- Dimming phase cut-off (trailing edge): Yes
- Failure rate at median useful life of 100,000 h at 25 °C ambient (tq): 10 %
- Colour consistency (McAdam ellipse): SDCM2
- Height/depth: 135 mm
- Built-in diameter: 68-83 mm
- Conductor cross section: 1 mm²
- Luminous flux adjustable: Positions
- Light distributor: Reflector
- Luminaire efficacy: 45 lm/W
- Light outlet: Direct
- Suitable for number of light sources: 1
- Suitable for built-in mounting: Yes
- Suitable for lamp power: 15 W
- Suitable for ceiling mounting: Yes
- Material cover: Glass transparent
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 69
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 69
- With light source: Yes
- Nominal voltage: 220-240 V
- Rated ambient temperature according to IEC 62722-2-1: 25 °C
- Impact strength: IK00
- Voltage type: AC
- Type of wiring: Suitable for loop-through wiring
- Surface protection: Powder coating
- Covering of the luminaire with thermally insulating material possible: Yes
- Energy efficiency class: A++
- Nominal current: 200-350 mA
- Built-in height: 51 mm
- Connection type: Push-in clamp
- REACH Date: 2022-08-24
- REACH contains candidate substances: Bly
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- REACH Information obligation: Yes
