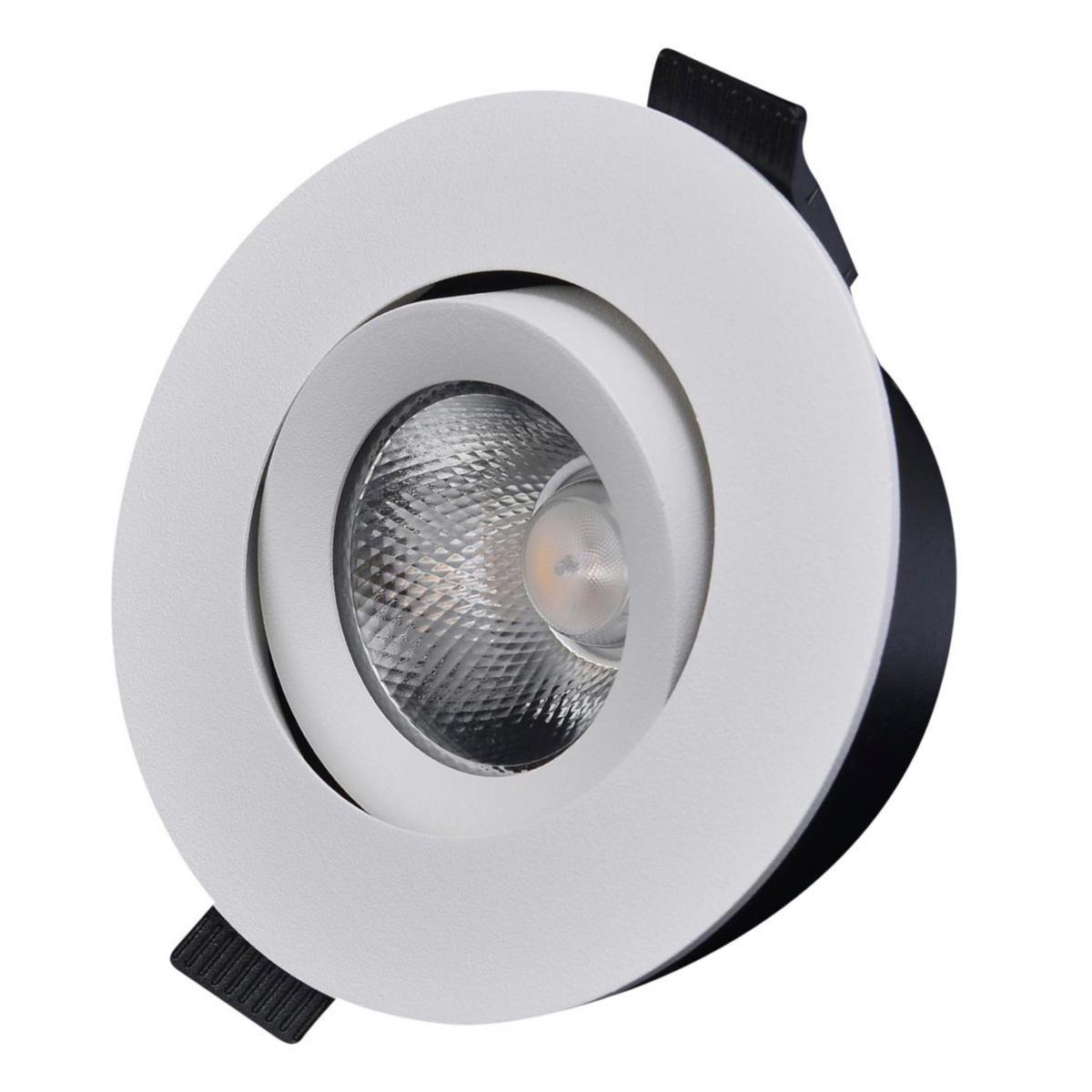

Downlight D-007
Downl D-007 2700K White
Article number: Suppl. article no:
7476911
D-007MW27
to see price and stock
D-007 is equipped with the latest technology in terms of lens and reflector, which gives both an exclusive expression and a qualitative light. For those who are looking for a downlight that stands out, a luminaire front can be ordered as an accessory in the colors gold and chrome. Equipped with a solid junction box with quick connection to make it easy for the installer and which also saves time and money. The fixture has a modular design and can be easily taken apart, which means that the life cycle is extended to finally be recycled properly. High protection class and angled bar enable many different areas of use such as kitchens, bathrooms and also in pitched roofs indoors.
- Article number: 7476911
- Suppl. article no: D-007MW27
- Ean no: 7340132804804
- Material class QT4440
Technical data
- Packagin Size: 1 PCS/36 PCS
- Energy label: F
- Max. system power: 7.4 W
- Rated luminous flux according to IEC 62722-2- 1: 480 lm
- Colour temperature: 2700 K
- Housing colour: White
- Surface brushed: No
- Beam angle: 21-40° - Medium beam
- Dimming DALI: No
- Dimming DALI-2: No
- Outer diameter: 95 mm
- Built-in diameter: 73-83 mm
- Built-in width: 73 mm
- Built-in height: 38 mm
- Built-in length: 73 mm
- Height/depth: 41 mm
- Lamp type: LED exchangeable
- Adjustability: Swivelling
- With light source: Yes
- Colour of light: White
- With control gear: Yes
- Type of control gear: LED operating device current-controlled
- Luminous intensity: 1334 cd
- Reflector: High-gloss
- Housing material: Aluminium
- Dimming phase cut-off (trailing edge): Yes
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Width: 95 mm
- Dimming potentiometer (integrated): No
- Power factor: 0.9
- Dimming phase cut-on (leading edge): Yes
- Degree of protection (IP): IP44
- Dimmable: Yes
- Light distribution: Symmetric
- Protection class according to IEC 61140: II
- Light outlet: Direct
- Luminaire efficacy: 74 lm/W
- Colour rendering index CRI: 90-100
- Suitable for built-in mounting: Yes
- Suitable for clamp-mounting: No
- Suitable for lamp power: 5.2 W
- Suitable for pedestal/floor mounting: No
- Suitable for suspended mounting: No
- Suitable for light-track mounting: No
- Suitable for traverse mounting: No
- Suitable for wall mounting: No
- Suitable for surface mounting: No
- Length: 95 mm
- With light sensor: No
- With movement sensor: No
- Nominal voltage: 230 V
- Voltage type: AC
- Rated lifetime L70/B50 at 25 °C: 50000 h
- Suitable for ceiling mounting: Yes
- Type of wiring: Ending
- Surface protection: Lacquered
- Covering of the luminaire with thermally insulating material possible: Yes
- Beam angle adjustable: No
- Colour of light adjustable: No
- Constant light output (CLO): No
- Luminous flux adjustable: No
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 100
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 200
- Exchangeable control gear: Yes
- Energy efficiency class of the light source according to EU regulation 2019/2015: F
- Reflector colour: Silver
- Connection type: Push-in clamp
- Luminous flux: 523 lm
- REACH Date: 2023-11-15
- REACH Information obligation: No
- Emergency power supply integrated: No
