Hide-a-lite
Downlight Comfort Quick G4 Quick ISO Tilt
G4 Q ISO Tilt White 36° Tune
Artikelnummer: Lev. artikelnr:
7475838
7475838
för att se saldo och pris

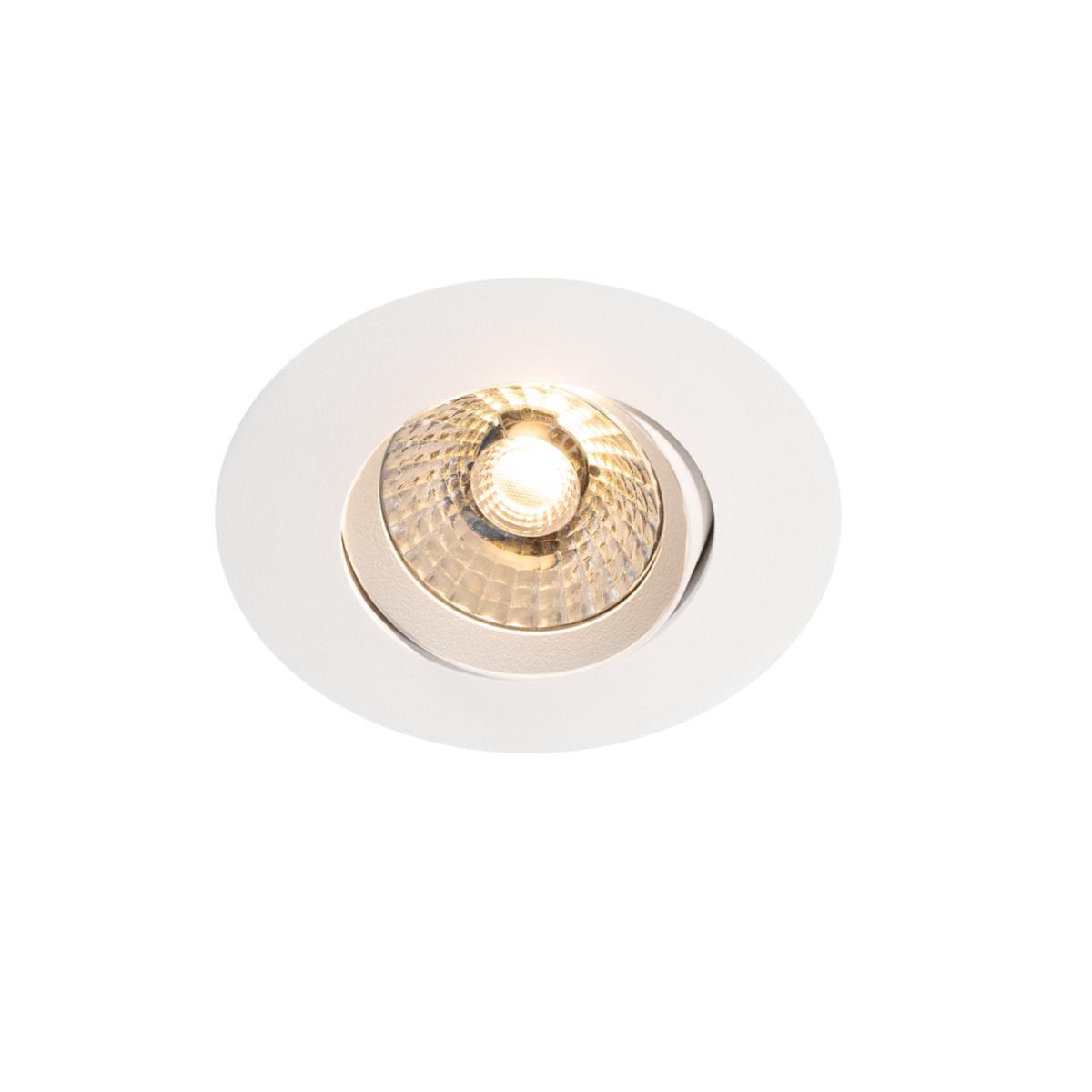

High-performance downlight built for a sustainable future - via a modular system, you can easily disassemble the luminaire and save time when it needs to be taken care of. Comfort G4 Quick ISO Tilt is a downlight with lens technology, high luminous flux and ISO cover for mounting in thin panel 28mm and approved for mounting directly against insulation. Easy to install with very good color reproduction, Ra>95, fits just as well indoors as outdoors. The tiltable version (30°) is the perfect luminaire choice for angled ceilings. Drive with cover that can be adjusted without tools for cable or flex hose 16mm. 3-pin quick-release terminal block for forwarding and strain relief. The luminaire is dimmable with the most common dimmers on the market.
- Article number: 7475838
- Suppl. article no: 7475838
- Ean no: 7392971146508
- Material class QT4320
Teknisk data
- Packagin Size: 1 PCS/20 PCS
- Design: 36°
- Max. system power: 7.5 W
- Rated luminous flux according to IEC 62722-2-1: 520 lm
- Colour temperature: 2000-2700 K
- Housing colour: White
- Beam angle: 21-40° - Medium beam
- Dimming DALI-2: No
- Outer diameter: 95 mm
- Built-in diameter: 73-85 mm
- Height/depth: 41 mm
- Lamp type: LED exchangeable
- Adjustability: Swivelling
- With light source: Yes
- Colour of light: White
- With control gear: Yes
- Type of control gear: LED operating device current-controlled
- Luminous intensity: 1170 cd
- Housing material: Aluminium
- Number of poles: 3
- Dimming phase cut-off (trailing edge): Yes
- Total harmonic distortion: 20
- Rated ambient temperature according to IEC 62722-2-1: -20-40 °C
- Power factor: 0.95
- Dimming phase cut-on (leading edge): No
- Degree of protection (IP): IP44
- Dimmable: Yes
- Conductor cross section: 1.5 mm²
- Light distribution: Symmetric
- Protection class according to IEC 61140: II
- Light distributor: Focal lens
- Light outlet: Direct
- Luminaire efficacy: 69 lm/W
- Suitable for number of light sources: 1
- Colour rendering index CRI: 90-100
- Suitable for built-in mounting: Yes
- Suitable for clamp-mounting: No
- Suitable for low voltage cable system: No
- Suitable for pedestal/floor mounting: No
- Suitable for suspended mounting: No
- Suitable for light-track mounting: No
- Suitable for traverse mounting: No
- Suitable for wall mounting: No
- Suitable for surface mounting: No
- With light sensor: No
- With movement sensor: No
- Nominal voltage: 220-240 V
- Voltage type: AC
- Rated lifetime L70/B50 at 25 °C: 100000 h
- Suitable for ceiling mounting: Yes
- Type of wiring: Suitable for loop-through wiring
- Connectable conductor cross section: 0.5-1.5 mm²
- Surface protection: Powder coating
- Colour consistency (McAdam ellipse): SDCM3
- Covering of the luminaire with thermally insulating material possible: Yes
- Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq): 82 %
- Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq): 90 %
- Flickering value Pst LM: 0.003
- Beam angle adjustable: No
- Colour of light adjustable: Continuously variable
- Luminous flux adjustable: Continuously variable
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 87
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 91
- Stroboscope effect value SVM: 0.02
- Exchangeable control gear: Yes
- Energy efficiency class of the light source according to EU regulation 2019/2015: F
- Nominal current: 180 mA
- Built-in height/depth: 38 mm
- Connection type: Push-in clamp
- REACH Date: 2022-10-17
- REACH Information obligation: No
