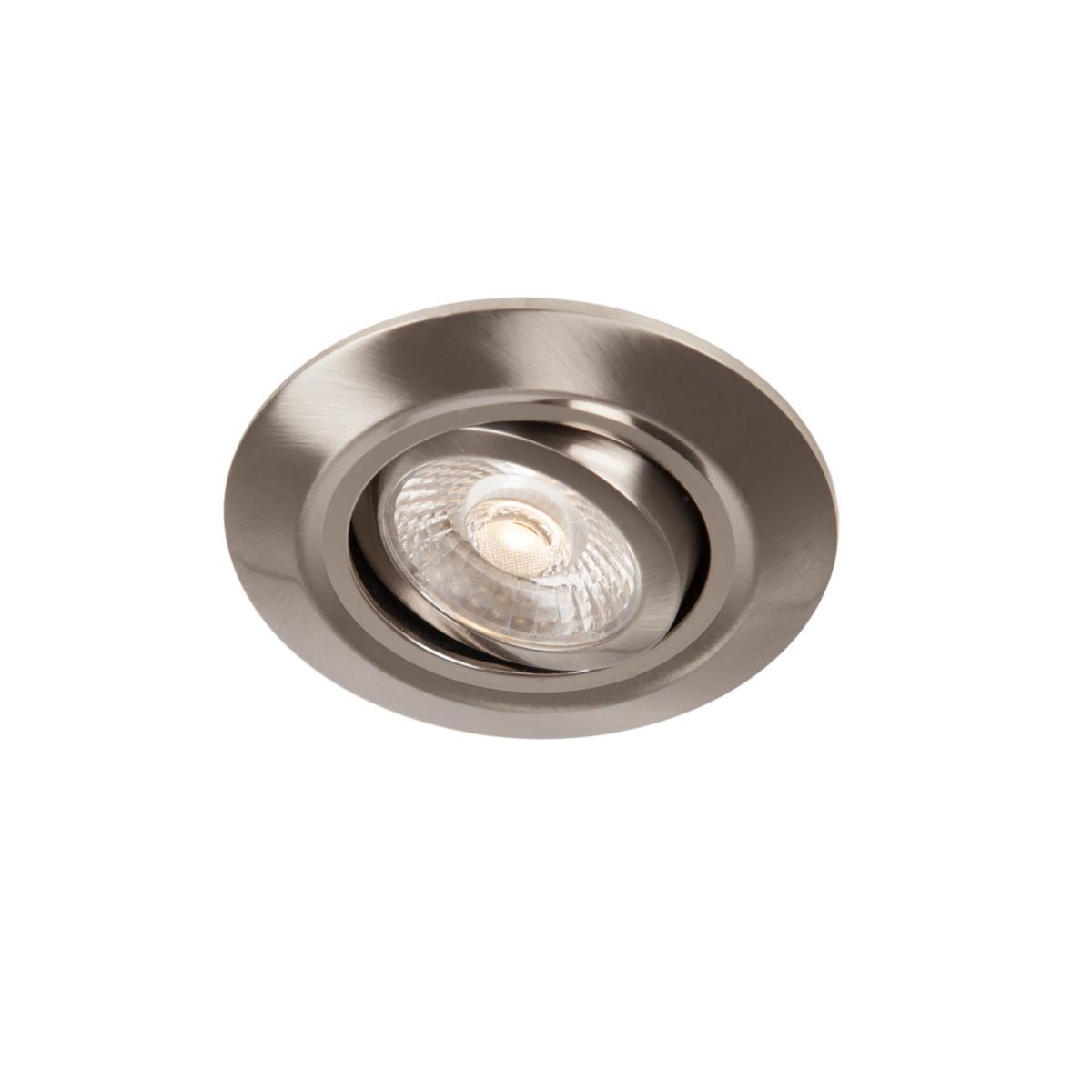

Downlight Comfort Twist

DL Comfort Twist ISO White

Article number:

7475444

Suppl. article no:

7475444

Normally in stock

to view the store status of the store

to see price and stock

Dimmable multifunctional all-round downlight for 230V with Comfort lens. The twist function makes it possible to turn the luminaire ring 2x150° and tilt 30° – perfect where you want to be able to direct the light or e.g. install in ridge roof. Selectable color temperature via DIP switch ColourTemp, directly in the luminaire. IP44 luminaire suitable for both indoor and outdoor use. Can be mounted directly against insulation, in 28mm thin panel with 13mm plaster. Complete with dimmable driver, 3-pole quick terminal for further connection and strain relief for cable or flex hose 16mm. Dimmable with the most common dimmers on the market.

Article number:
7475444
Copy to clipboard
Suppl. article no:
7475444
Copy to clipboard
Ean no:
7392971144634
Copy to clipboard
Material class
QT4320
Copy to clipboard

Technical data

Packagin Size: 1 PCS/20 PCS
Max. system power: 6.5 W
Rated luminous flux according to IEC 62722-2- 1: 470 lm
Colour temperature: 2700-4000 K
Housing colour: White
Surface brushed: No
Beam angle: 21-40° - Medium beam
Outer diameter: 95 mm
Built-in diameter: 73-85 mm
Built-in height: 36 mm
Height/depth: 40 mm
Lamp type: LED not exchangeable
Adjustability: Rotatable
With light source: Yes
Colour of light: White
With control gear: Yes
Type of control gear: LED operating device current-controlled
Luminous intensity: 750 cd
Housing material: Aluminium
Suitable for workplace according to EN 12464-1: No
Number of poles: 3
Dimming phase cut-off (trailing edge): Yes
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
Rated ambient temperature according to IEC 62722-2-1: -20-40 °C
Dimming phase cut-on (leading edge): No
Filament test according to IEC 60695-2-11: 650 °C - 30 s
Degree of protection (IP): IP44
Dimmable: Yes
Lamp holder: None
Conductor cross section: 1.5 mm²
Light distribution: Symmetric
Protection class according to IEC 61140: II
Light distributor: Focal lens
Light outlet: Direct
Luminaire efficacy: 72 lm/W
Suitable for number of light sources: 1
Colour rendering index CRI: 90-100
Suitable for built-in mounting: Yes
Suitable for clamp-mounting: No
Suitable for low voltage cable system: No
Suitable for pedestal/floor mounting: No
Suitable for suspended mounting: No
Suitable for light-track mounting: No
Suitable for traverse mounting: No
Suitable for wall mounting: No
Suitable for surface mounting: No
With light sensor: No
With movement sensor: No
Nominal voltage: 220-240 V
Voltage type: AC
Rated lifetime L70/B50 at 25 °C: 100000 h
Suitable for ceiling mounting: Yes
Type of wiring: Suitable for loop-through wiring
Connectable conductor cross section: 0.5-1.5 mm²
Surface protection: Powder coating
Colour consistency (McAdam ellipse): SDCM3
Covering of the luminaire with thermally insulating material possible: Yes
Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq): 81 %
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq): 90 %
Flickering value Pst LM: 0.02
Beam angle adjustable: No
Colour of light adjustable: Positions
Constant light output (CLO): No
Luminous flux adjustable: Continuously variable
Max. number of luminaires per miniature circuit breaker B16 (MCB): 100
Max. number of luminaires per miniature circuit breaker C16 (MCB): 125
Stroboscope effect value SVM: 0.315
Exchangeable control gear: Yes
Nominal current: 160 mA
Connection type: Push-in clamp
Luminous flux: 420-510 lm
REACH Date: 2022-05-24
REACH Information obligation: No
