Westal
Downlight WLD M64
DL WLD M64 3-KIT WHITE 3K
Article number: Suppl. article no:
7475115
21-4-81
to see price and stock

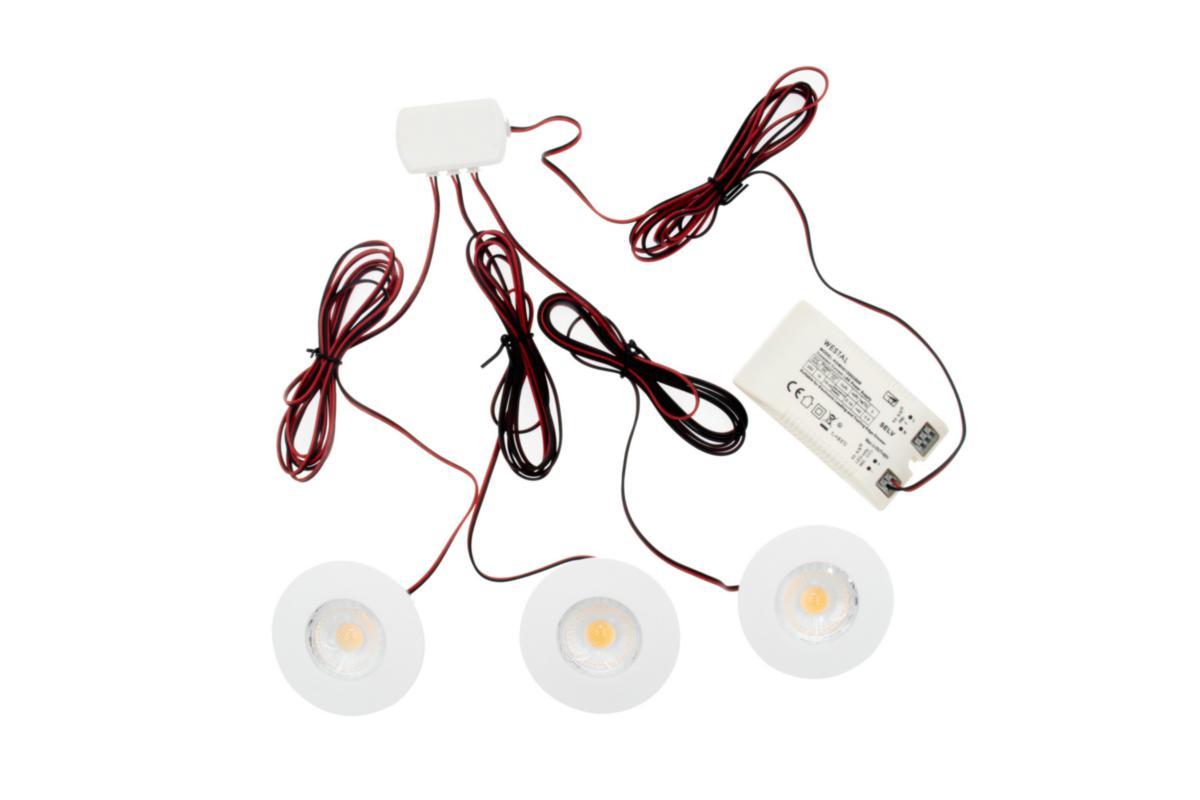

M64 is a thin downlight for installations where height is crucial. The luminaire is made of white or black lacquered aluminum. M64 is available both as a 3-pack complete with driver or individually without driver 350mA LED at 4W and 3000K. 3-pack is delivered complete with drive unit that is dimmable with front or rear edge dimmer. Easy recessed installation (perforation 60-64mm) or with the help of an expansion frame that is available as an accessory Suitable for installations where the luminaire must be low, such as ceilings with low installation space, furniture and other furnishings.
- Article number: 7475115
- Suppl. article no: 21-4-81
- Ean no: 7393044214810
- Material class QT4410
Technical data
- Max. system power: 12 W
- Rated luminous flux according to IEC 62722-2- 1: 300 lm
- Colour temperature: 3000 K
- Housing colour: White
- Beam angle: 41-80° - Wide beam
- Outer diameter: 75 mm
- Built-in diameter: 60-64 mm
- Built-in height: 20 mm
- Height/depth: 22 mm
- Lamp type: LED not exchangeable
- Adjustability: Not adjustable
- With control gear: Yes
- Type of control gear: LED operating device current-controlled
- Reflector: Other
- Housing material: Aluminium
- Number of poles: 2
- Dimming phase cut-off (trailing edge): Yes
- Power factor: 0.9
- Dimming phase cut-on (leading edge): Yes
- Degree of protection (IP): IP44
- Lamp holder: None
- Conductor cross section: 0.75 mm²
- Light distribution: Symmetric
- Protection class according to IEC 61140: II
- Light distributor: Refractor lens
- Light outlet: Direct
- Luminaire efficacy: 75 lm/W
- Suitable for built-in mounting: Yes
- Colour rendering index CRI: 90-100
- Suitable for clamp-mounting: No
- Suitable for pedestal/floor mounting: No
- Suitable for suspended mounting: No
- Suitable for light-track mounting: No
- Suitable for traverse mounting: No
- Suitable for wall mounting: No
- Suitable for surface mounting: Yes
- With light sensor: No
- With movement sensor: No
- Nominal voltage: 220-240 V
- Voltage type: AC
- Rated lifetime L70/B50 at 25 °C: 50000 h
- Suitable for ceiling mounting: Yes
- Type of wiring: Ending
- Connectable conductor cross section: 0.75-1.5 mm²
- Surface protection: Powder coating
- Colour consistency (McAdam ellipse): SDCM3
- Colour of light adjustable: No
- Luminous flux adjustable: Continuously variable
- Energy efficiency class: A++
- Connection type: Push-in clamp
- Luminous flux: 300 lm
- REACH Date: 2021-12-08
- LED nominal current at constant current: 350 mA
- REACH Information obligation: No
