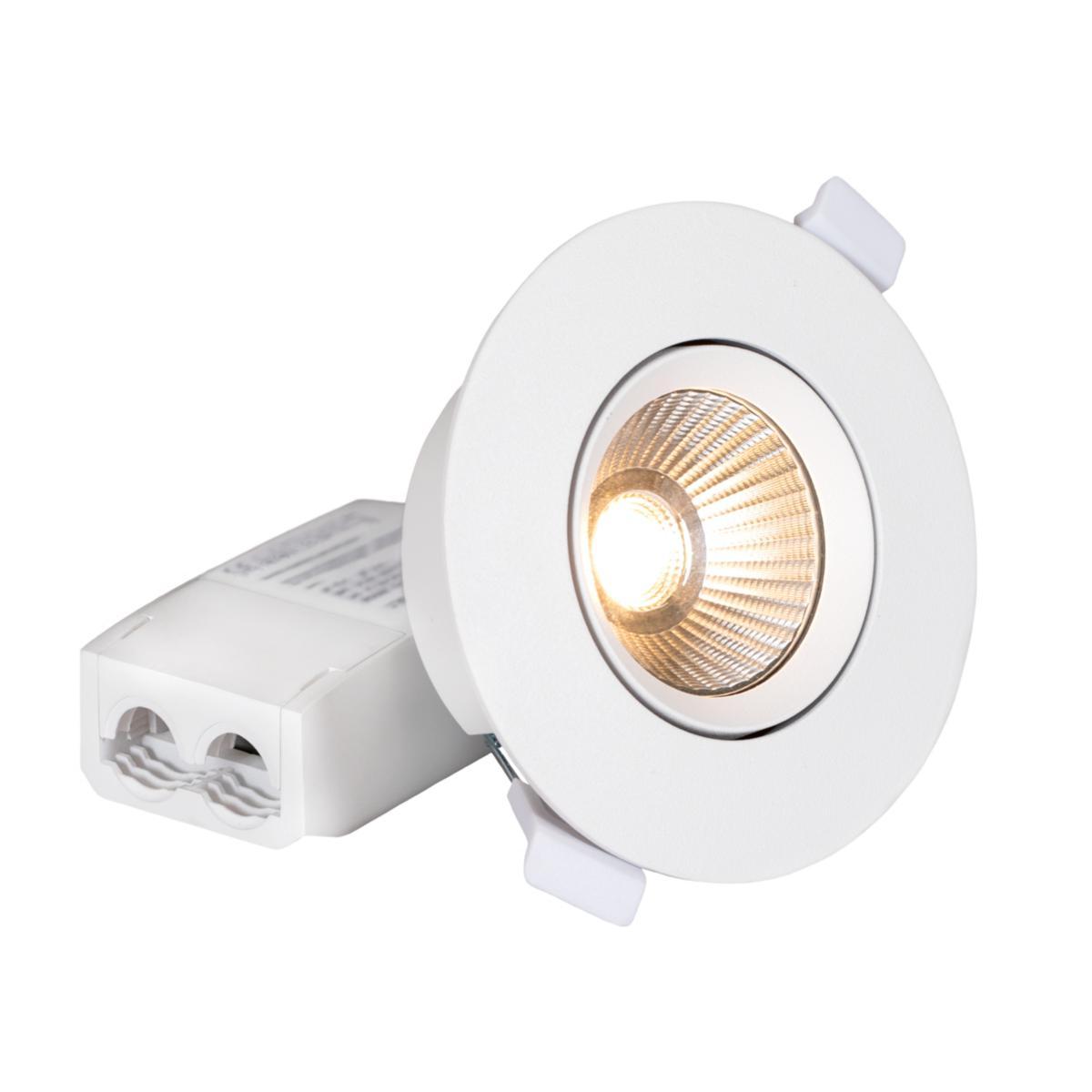

Downlight Optic L Quick ISO, Hide-a-Lite
DL OPTIC L QUICK ISO W TUNE QPTIC L QUICK ISO TUNE
Article number: Suppl. article no:
7474816
7474816
to see price and stock
Low-profile, efficient and tiltable downlight, adapted for mounting in a sparse panel 28mm and approved for mounting directly against insulation. Modern LED and reflector technology provides high light output with a distinct and well-dimmed light image with very good color reproduction, Ra95. An easy-to-install IP44 luminaire, complete with phase-dimmable drive device, 3-pin quick-release terminal for forwarding and strain relief for cable or flex hose 16mm. Dimmable with the most common dimmers on the market.
- Article number: 7474816
- Suppl. article no: 7474816
- Ean no: 7392971141374
- Material class QT4320
Technical data
- Packagin Size: 1 ST/20 ST/20 ST
- Max. system power: 7.5 W
- Rated luminous flux according to IEC 62722-2- 1: 460 lm
- Colour temperature: 2000-2700 K
- Housing colour: White
- Surface brushed: No
- Beam angle: 21-40° - Medium beam
- Dimming DALI: No
- Dimming DALI-2: No
- Outer diameter: 95 mm
- Built-in diameter: 83-85 mm
- Built-in height: 38 mm
- Height/depth: 41 mm
- Lamp type: LED not exchangeable
- Adjustability: Swivelling
- With light source: Yes
- Colour of light: Multi-coloured
- With control gear: Yes
- Type of control gear: LED operating device current-controlled
- Luminous intensity: 780 cd
- Reflector: High-gloss
- Housing material: Aluminium
- Suitable for workplace according to EN 12464-1: No
- Number of poles: 3
- Dimming phase cut-off (trailing edge): Yes
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Dimming with push-button: No
- Dimming Sine Wave Reduction: No
- Dimming mains voltage modulation: No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming LineSwitch: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Rated ambient temperature according to IEC 62722-2-1: -20-40 °C
- Power factor: 0.85
- Dimming phase cut-on (leading edge): Yes
- Material cover: None
- Degree of protection (IP): IP44
- Dimmable: Yes
- Lamp holder: None
- Conductor cross section: 1.5 mm²
- Light distribution: Symmetric
- Protection class according to IEC 61140: II
- Light distributor: Reflector
- Light outlet: Direct
- Luminaire efficacy: 61 lm/W
- Suitable for number of light sources: 1
- Colour rendering index CRI: 90-100
- Suitable for built-in mounting: Yes
- Suitable for clamp-mounting: No
- Suitable for low voltage cable system: No
- Suitable for pedestal/floor mounting: No
- Suitable for suspended mounting: No
- Suitable for light-track mounting: No
- Suitable for traverse mounting: No
- Suitable for wall mounting: No
- Suitable for surface mounting: No
- With light sensor: No
- With movement sensor: No
- Nominal voltage: 220-240 V
- Voltage type: AC
- Rated life time L80/B10 at 25 °C: 100000 h
- Suitable for ceiling mounting: Yes
- Dimming Touch and Dim: No
- Type of wiring: Suitable for loop-through wiring
- Connectable conductor cross section: 0.5-1.5 mm²
- Surface protection: Powder coating
- Colour consistency (McAdam ellipse): SDCM3
- Covering of the luminaire with thermally insulating material possible: Yes
- Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq): 82 %
- Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq): 90 %
- Beam angle adjustable: No
- Colour of light adjustable: Continuously variable
- Constant light output (CLO): No
- Luminous flux adjustable: Continuously variable
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 90
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 150
- Exchangeable control gear: Yes
- Energy efficiency class: A+
- Connection type: Push-in clamp
- Luminous flux: 460 lm
- LED nominal current at constant current: 180 mA
- REACH Date: 2022-06-01
- Dimming GPRS: No
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- REACH Information obligation: No
- Emergency power supply integrated: No
- Dimming depending on control gear: No
