Hide-a-lite
Downlight Optic Deep ISO, Hide-a-Lite
DL OPTIC QUICK DEEP ISO W 927 DL OPTIC QUICK DEEP ISO
Article number: Suppl. article no:
7474363
7474363
to see price and stock
Downlight with reflector technology and deep recessed light source approved for mounting directly against insulation. Provides a discreet and well-dimmed light with very good color rendering, up to Ra95. Fits in both private and public environments where a pleasant general light is desired. Black front ring is available as an accessory. Complete with phase dimmable drive, 3-pole quick-release terminal for relaying, strain relief for cable or flex hose 16mm. Dimmable with the most common dimmers on the market.
- Article number: 7474363
- Suppl. article no: 7474363
- Ean no: 7392971138725
- Material class QT432A
Technical data
- Packagin Size: 1 ST/20 ST
- Max. system power: 6 W
- Rated luminous flux according to IEC 62722-2- 1: 390 lm
- Colour temperature: 2700 K
- Housing colour: White
- Surface brushed: No
- Beam angle: 21-40° - Medium beam
- Dimming DALI: No

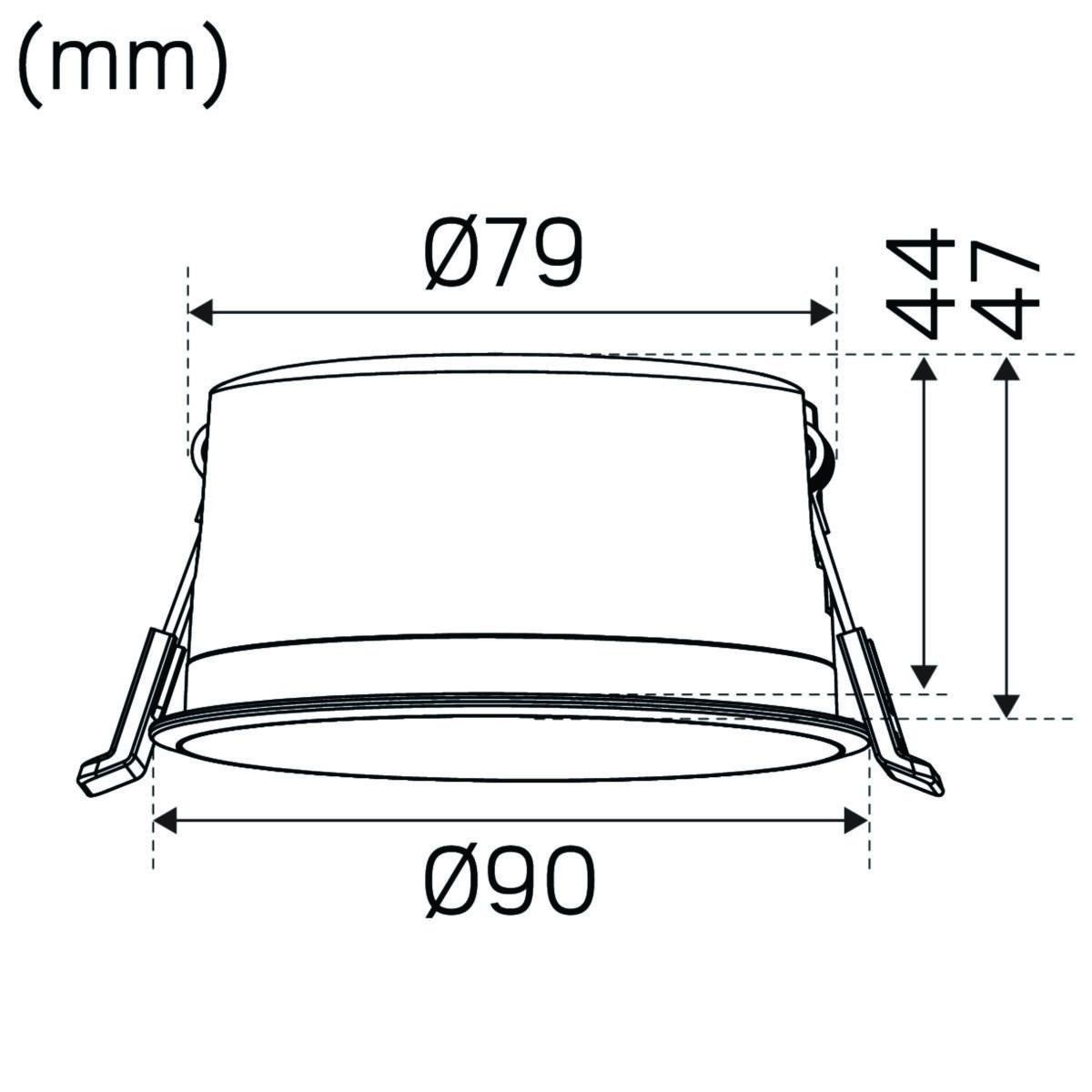

- Outer diameter: 90 mm
- Built-in diameter: 82 mm
- Built-in height: 44 mm
- Height/depth: 47 mm
- Lamp type: LED not exchangeable
- Adjustability: Not adjustable
- With light source: Yes
- Colour of light: White
- With control gear: Yes
- Type of control gear: LED operating device current-controlled
- Luminous intensity: 650 cd
- Reflector: High-gloss
- Housing material: Aluminium
- Suitable for workplace according to EN 12464-1: No
- Number of poles: 3
- Dimming phase cut-off (trailing edge): Yes
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Dimming with push-button: No
- Dimming Sine Wave Reduction: No
- Dimming mains voltage modulation: No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming LineSwitch: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Rated ambient temperature according to IEC 62722-2-1: -20-40 °C
- Dimming phase cut-on (leading edge): Yes
- Filament test according to IEC 60695-2-11: 650 °C - 30 s
- Material cover: None
- Degree of protection (IP): IP44
- Dimmable: Yes
- Conductor cross section: 1.5 mm²
- Light distribution: Symmetric
- Protection class according to IEC 61140: II
- Light distributor: Reflector
- Light outlet: Direct
- Luminaire efficacy: 65 lm/W
- Suitable for number of light sources: 1
- Colour rendering index CRI: 90-100
- Suitable for built-in mounting: Yes
- Suitable for clamp-mounting: No
- Suitable for low voltage cable system: No
- Suitable for pedestal/floor mounting: No
- Suitable for suspended mounting: No
- Suitable for light-track mounting: No
- Suitable for traverse mounting: No
- Suitable for wall mounting: No
- Suitable for surface mounting: No
- With light sensor: No
- With movement sensor: No
- Nominal voltage: 220-240 V
- Voltage type: AC
- Suitable for ceiling mounting: Yes
- Dimming Touch and Dim: No
- Type of wiring: Suitable for loop-through wiring
- Connectable conductor cross section: 0.5-1.5 mm²
- Colour consistency (McAdam ellipse): SDCM3
- Covering of the luminaire with thermally insulating material possible: Yes
- Connection type: Push-in clamp
- Luminous flux: 390 lm
- LED nominal current at constant current: 270 mA
- REACH Date: 2022-06-01
- Dimming GPRS: No
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- REACH Information obligation: No
- Dimming depending on control gear: No
