Downlight Sabina LP, Scan Products
DOWNL SABINA LP 5.4W 27K 10301 SABINA LP
Article number: Suppl. article no:
7474197
10301
to see price and stock

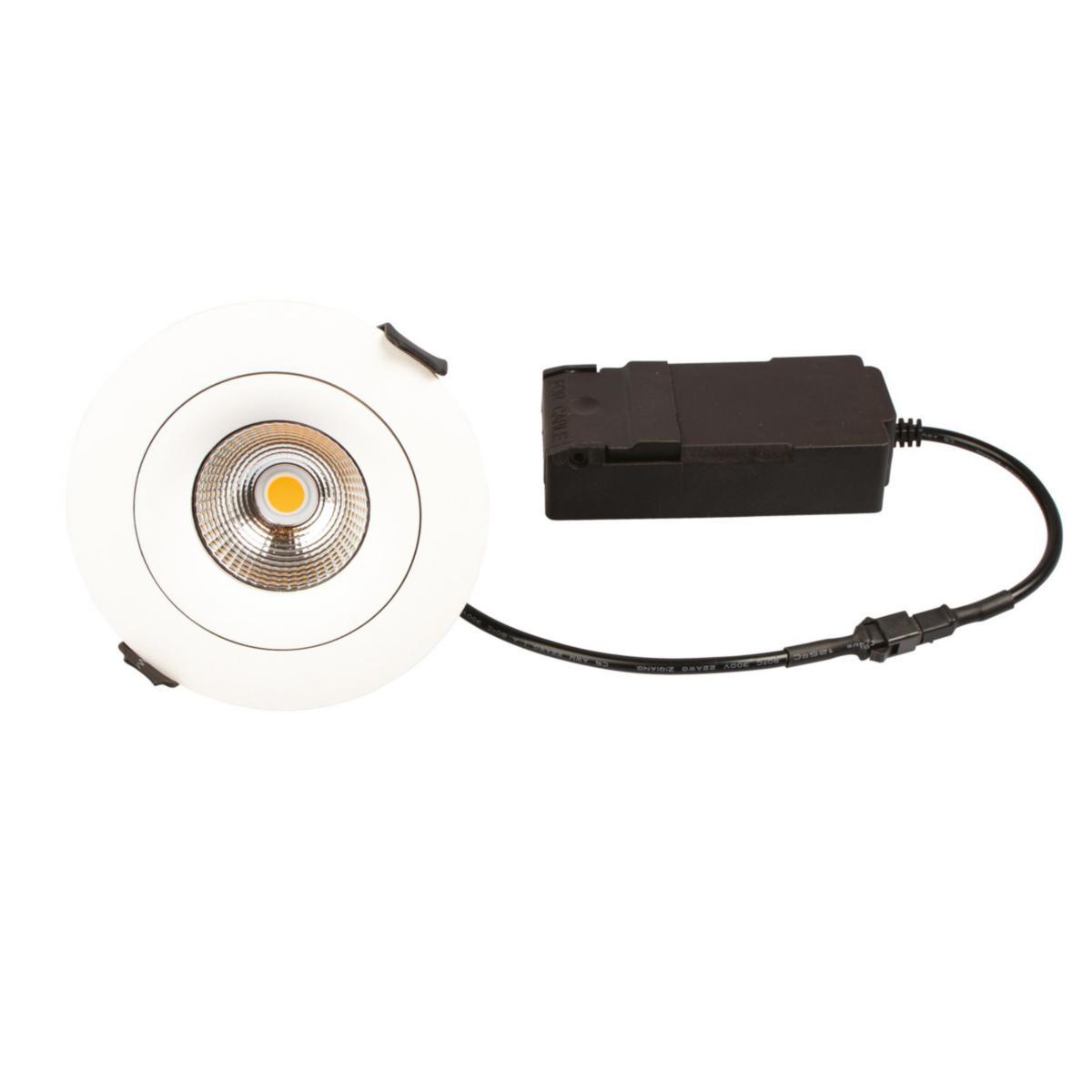

Sabina LP is an innovative, elegant and flicker-free LED downlight with high light output and high color rendering. Approved for installation directly in insulation and combustible material. Minimal glare due to the deep placement of the LED chip as well as the advanced reflector. The installation height of only 33 mm makes it possible to install Sabina LP in most places. The actuator can easily be separated from the luminaire, which can be an advantage in painting work. It is possible for mounting with cable or 16 mm flex pipe.
- Article number: 7474197
- Suppl. article no: 10301
- Ean no: 5713080103015
- Material class QT437A
Technical data
- Packagin Size: 1 ST/45 ST/360 ST
- Max. system power: 5.4 W
- Rated luminous flux according to IEC 62722-2-1: 400 lm
- Colour temperature: 2700 K
- Housing colour: White
- Surface brushed: No
- Beam angle: 21-40° - Medium beam
- Dimming DALI: No
- Outer diameter: 95 mm
- Lamp type: LED not exchangeable
- Adjustability: Swivelling
- With light source: Yes
- Colour of light: White
- With control gear: Yes
- Type of control gear: LED operating device current-controlled
- Luminous intensity: 450 cd
- Reflector: High-gloss
- Housing material: Aluminium
- Suitable for workplace according to EN 12464-1: No
- Number of poles: 3
- Dimming phase cut-off (trailing edge): Yes
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Dimming with push-button: No
- Dimming Sine Wave Reduction: No
- Dimming mains voltage modulation: No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming LineSwitch: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Rated ambient temperature according to IEC 62722-2-1: -20-40 °C
- Power factor: 0.9
- Dimming phase cut-on (leading edge): No
- Degree of protection (IP): IP44
- Lamp holder: None
- Light distribution: Symmetric
- Protection class according to IEC 61140: II
- Light distributor: Reflector
- Light outlet: Direct
- Luminaire efficacy: 74 lm/W
- Suitable for number of light sources: 1
- Colour rendering index CRI: 90-100
- Suitable for built-in mounting: Yes
- Suitable for clamp-mounting: No
- Suitable for low voltage cable system: No
- Suitable for pedestal/floor mounting: No
- Suitable for suspended mounting: No
- Suitable for light-track mounting: No
- Suitable for traverse mounting: No
- Suitable for surface mounting: No
- With light sensor: No
- With movement sensor: No
- Nominal voltage: 220-240 V
- Voltage type: AC
- Suitable for ceiling mounting: No
- Dimming Touch and Dim: No
- Type of wiring: Suitable for loop-through wiring
- Connectable conductor cross section: 1.5 mm²
- Surface protection: Powder coating
- Colour consistency (McAdam ellipse): SDCM3
- Covering of the luminaire with thermally insulating material possible: Yes
- Energy efficiency class: A+
- Built-in height/depth: 33 mm
- Connection type: Push-in clamp
- LED nominal current at constant current: 250 mA
- REACH Date: 2021-11-24
- Dimming GPRS: No
- Energy efficiency class of the built-in lamp: A+
- REACH Information obligation: No
- Dimming depending on control gear: No
