Designlight

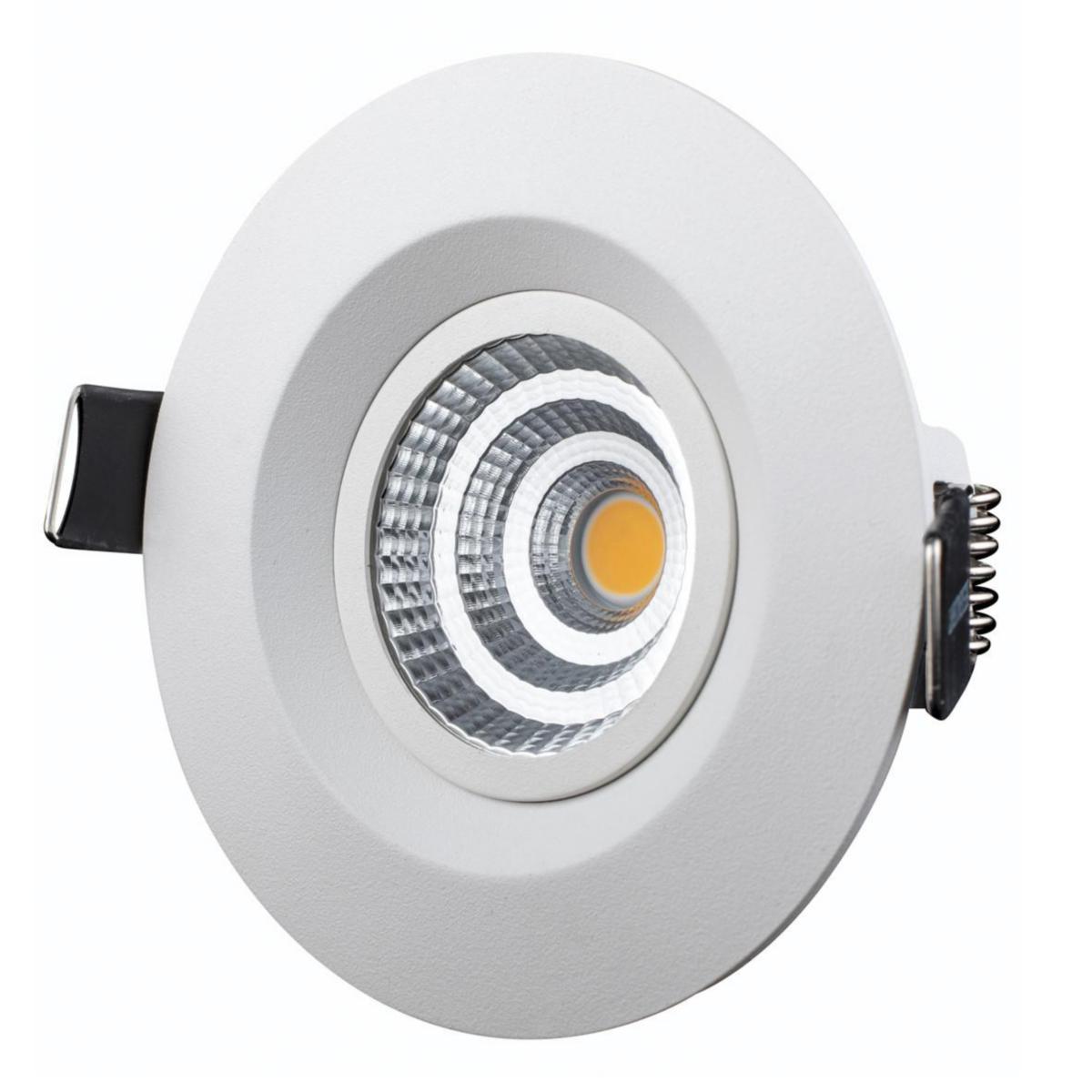

Downlight M-Penny, Designlight
DOWNL MP-276MW FIXED 7W 6-P MP-276MW
Article number: Suppl. article no:
7473488
MP-276MW
to see price and stock
A dimmable and user-friendly luminaire with good performance where mounting can be done directly against the insulation. 2700K and 3000K. IP44, 6-pack.
- Article number: 7473488
- Suppl. article no: MP-276MW
- Ean no: 7340132802763
- Material class QT4441
Technical data
- Packagin Size: 1 FRP/6 FRP
- Max. system power: 7.4 W
- Colour temperature: 2700 K
- Housing colour: White
- Surface brushed: No
- Beam angle: Medium beam 21-40°
- Dimming DALI: No
- Outer diameter: 90 mm
- Height/depth: 39.5 mm
- Lamp type: LED not exchangeable
- Adjustability: Not adjustable
- With light source: Yes
- Colour of light: White
- With control gear: Yes
- Type of control gear: LED operating device current-controlled
- Luminous intensity: 533 cd
- Housing material: Aluminium
- Dimming phase cut-off (trailing edge): Yes
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Dimming with push-button: No
- Dimming Sine Wave Reduction: Yes
- Dimming mains voltage modulation: Yes
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming LineSwitch: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Dimming phase cut-on (leading edge): Yes
- Degree of protection (IP): IP44
- Dimmable: Yes
- Lamp holder: None
- Light distribution: Symmetric
- Protection class according to IEC 61140: III
- Light outlet: Direct
- Luminaire efficacy: 94 lm/W
- Colour rendering index CRI: 90-100
- Suitable for built-in mounting: Yes
- Suitable for clamp-mounting: No
- Suitable for pedestal/floor mounting: No
- Suitable for suspended mounting: No
- Suitable for light-track mounting: No
- Suitable for traverse mounting: No
- Suitable for wall mounting: No
- Suitable for surface mounting: No
- With light sensor: No
- With movement sensor: No
- Nominal voltage: 230 V
- Rated lifetime L70/B50 at 25 °C: 50000 h
- Suitable for ceiling mounting: Yes
- Dimming Touch and Dim: No
- Surface protection: Powder coating
- Colour consistency (McAdam ellipse): SDCM3
- Covering of the luminaire with thermally insulating material possible: Yes
- Beam angle adjustable: No
- Colour of light adjustable: No
- Constant light output (CLO): No
- Luminous flux adjustable: No
- Emergency power supply integrated: No
- Energy efficiency class: A++
- Built-in height/depth: 37 mm
- Luminous flux: 510 lm
- LED nominal current at constant current: 350 mA
- REACH Date: 2021-08-16
- Dimming GPRS: No
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- REACH Information obligation: No
- Dimming depending on control gear: No
