Hide-a-lite

Downlight Optic Box, Hide-a-Lite

DOWNL OPTIC BOX I VIT TUNE OPTIC BOX I
Article number:
7473413
Suppl. article no:
7473413





 to see price and stock
Produkten är bedömd hos Byggvarubedömningen med totalbedömningen Accepteras.

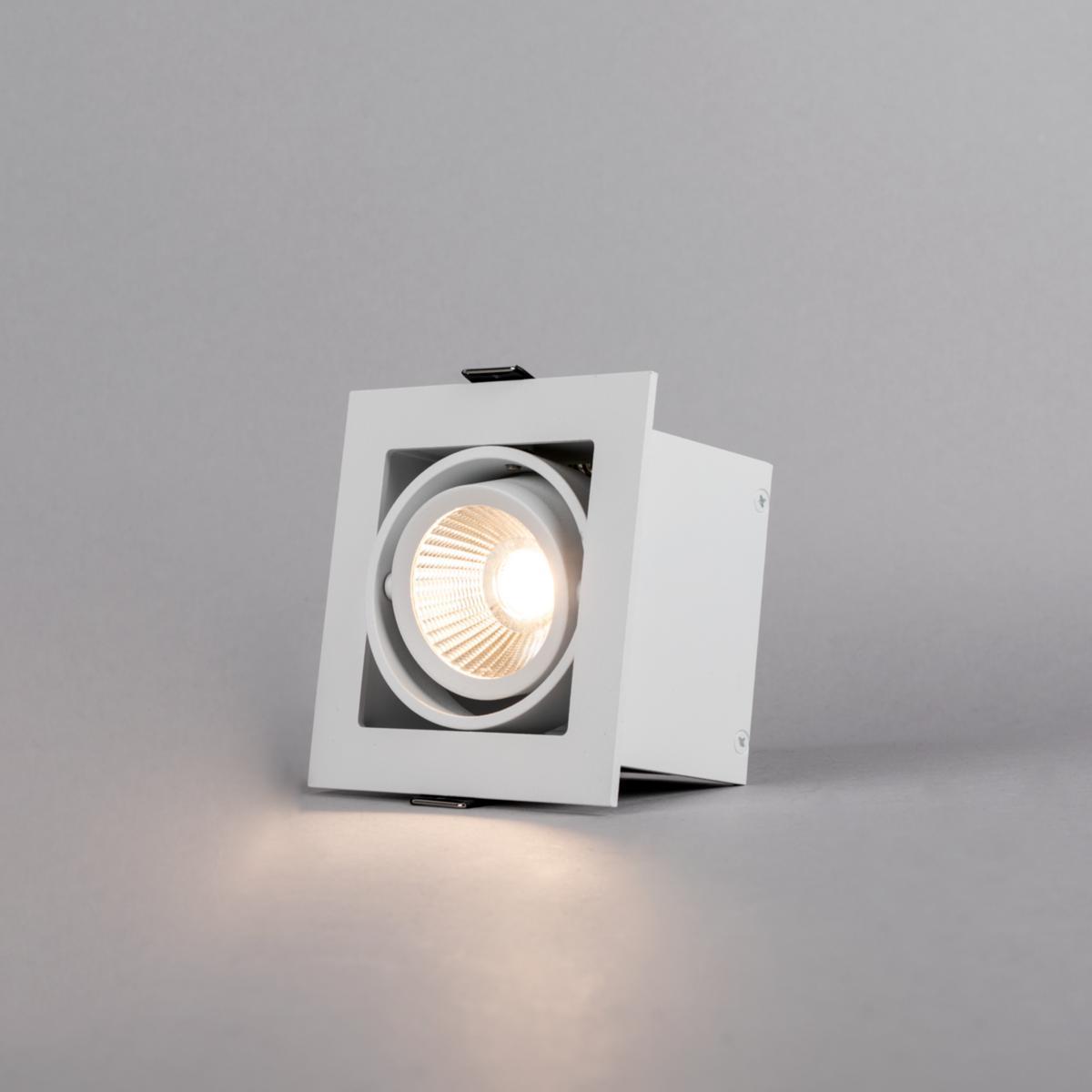

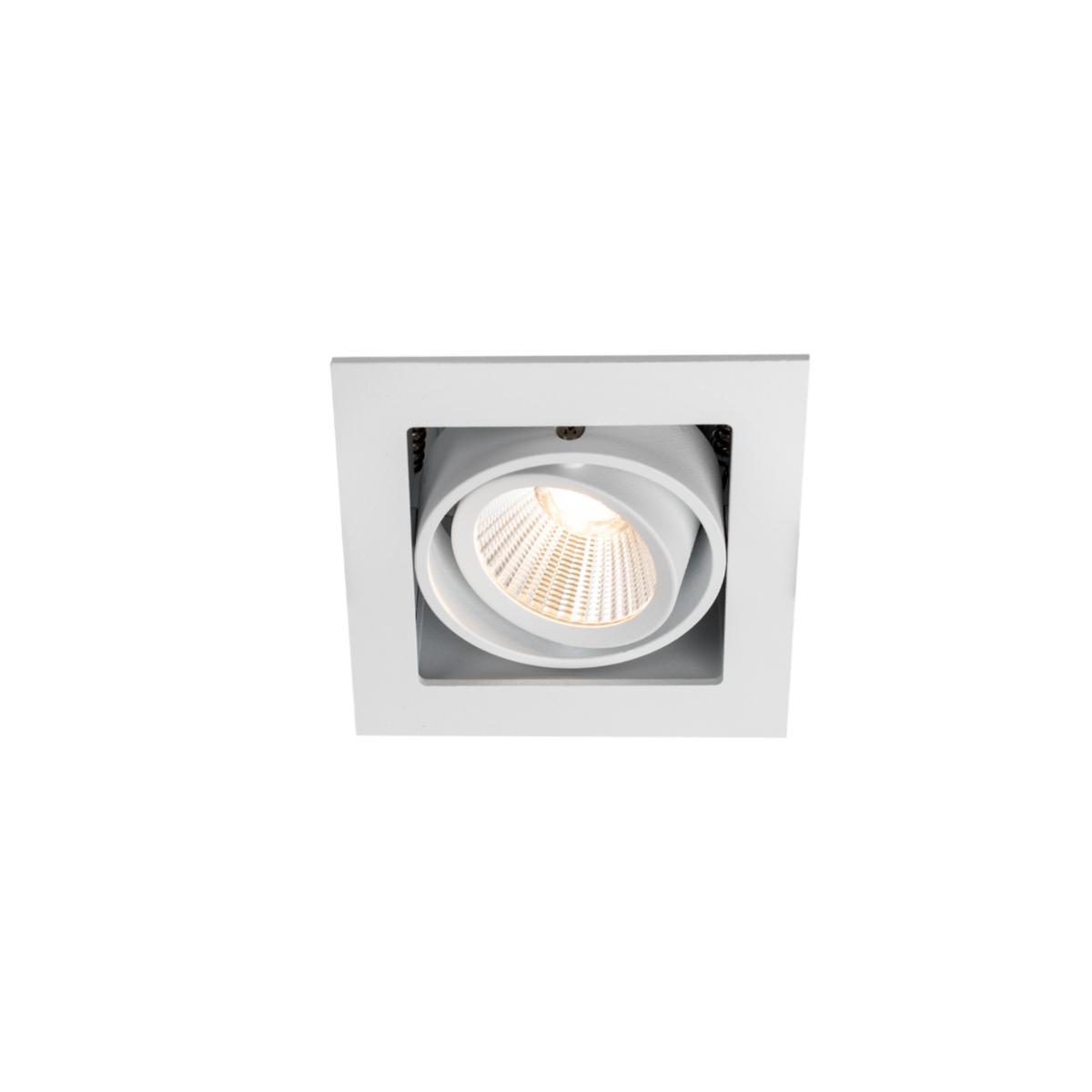

Complete 230V downlight in box design with reflector technology and phase dimmable drive. Fits with its square design excellent in both private and public environment where a discreet and comfortable general light is desired. Available in several color temperatures, as well as Tune. Very good color rendering Ra> 95. Can be mounted under barrier with Spot Guard Gles. Complete with phase dimmable drive with quick-release terminal and screw-free tension relief. Dimmable with the most common dimmers on the market.
  • Article number:
    7473413
  • Suppl. article no:
    7473413
  • Ean no:
    7392971137438
  • Material class
    QT432A
Technical data
  • Type: BOX I
  • Max. system power: 7.5 W
  • Rated luminous flux according to IEC 62722-2-1: 465 lm
  • Colour temperature: 2000-2700 K
  • Housing colour: White
  • Luminous flux: 465 lm
  • Surface brushed: No
  • Beam angle: Medium beam 21-40°
  • Dimming DALI: No
  • Height/depth: 63 mm
  • Lamp type: LED not exchangeable
  • Adjustability: Rotating and swivelling
  • With light source: Yes
  • Colour of light: White
  • With control gear: Yes
  • Type of control gear: LED operating device current-controlled
  • Luminous intensity: 800 cd
  • Reflector: High-gloss
  • Housing material: Aluminium
  • Suitable for workplace according to EN 12464-1: No
  • Number of poles: 3
  • Dimming phase cut-off (trailing edge): Yes
  • Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
  • Width: 101 mm
  • Built-in length: 88 mm
  • Dimming with push-button: No
  • Dimming Sine Wave Reduction: No
  • Dimming mains voltage modulation: No
  • Dimming 0-10 V: No
  • Dimming 1-10 V: No
  • Dimming DMX: No
  • Dimming DSI: No
  • Dimming LineSwitch: No
  • Dimming RF: No
  • Dimming Zigbee: No
  • Dimming potentiometer (integrated): No
  • Dimming programmable: No
  • Dimming manufacturer's proprietary system: No
  • Rated ambient temperature according to IEC 62722-2-1: -20-40 °C
  • Power factor: 0.9
  • Photobiological safety according to EN 62471: Other
  • Dimming phase cut-on (leading edge): Yes
  • Filament test according to IEC 60695-2-11: 650 °C - 30 s
  • Material cover: Glass transparent
  • Built-in width: 88 mm
  • Degree of protection (IP): IP21
  • Dimmable: Yes
  • Lamp holder: Other
  • Light distribution: Symmetric
  • Protection class according to IEC 61140: II
  • Light distributor: Reflector
  • Light outlet: Direct
  • Luminaire efficacy: 62 lm/W
  • Suitable for number of light sources: 1
  • Colour rendering index CRI: 90-100
  • Suitable for built-in mounting: Yes
  • Suitable for clamp-mounting: No
  • Suitable for low voltage cable system: No
  • Suitable for pedestal/floor mounting: No
  • Suitable for suspended mounting: No
  • Suitable for light-track mounting: No
  • Suitable for traverse mounting: No
  • Suitable for wall mounting: No
  • Suitable for surface mounting: No
  • Length: 101 mm
  • With light sensor: No
  • With movement sensor: No
  • Nominal voltage: 220-240 V
  • Voltage type: AC
  • Suitable for ceiling mounting: Yes
  • Impact strength: Other
  • Dimming Touch and Dim: No
  • Type of wiring: Suitable for loop-through wiring
  • Connectable conductor cross section: 0.5-2.5 mm²
  • Colour consistency (McAdam ellipse): SDCM3
  • Covering of the luminaire with thermally insulating material possible: No
  • Built-in height/depth: 60 mm
  • Connection type: Push-in clamp
  • Dimming GPRS: No
  • Dimming depending on control gear: No
  • Energy efficiency class of the built-in lamp: A++, A+, A (LED)
  • LED nominal current at constant current: 180 mA
  • REACH Date: 2022-06-01
  • REACH Information obligation: No
