Hide-a-lite

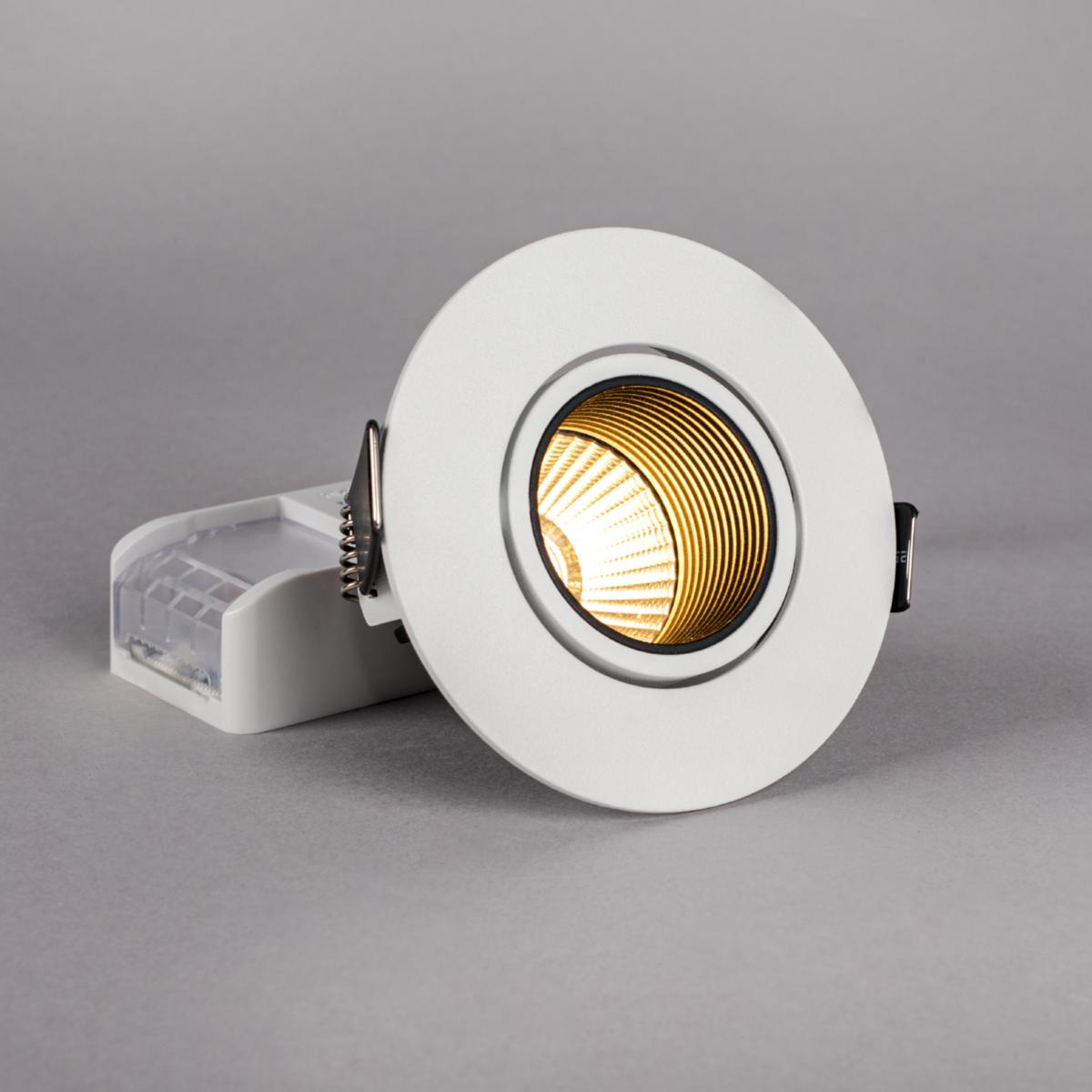

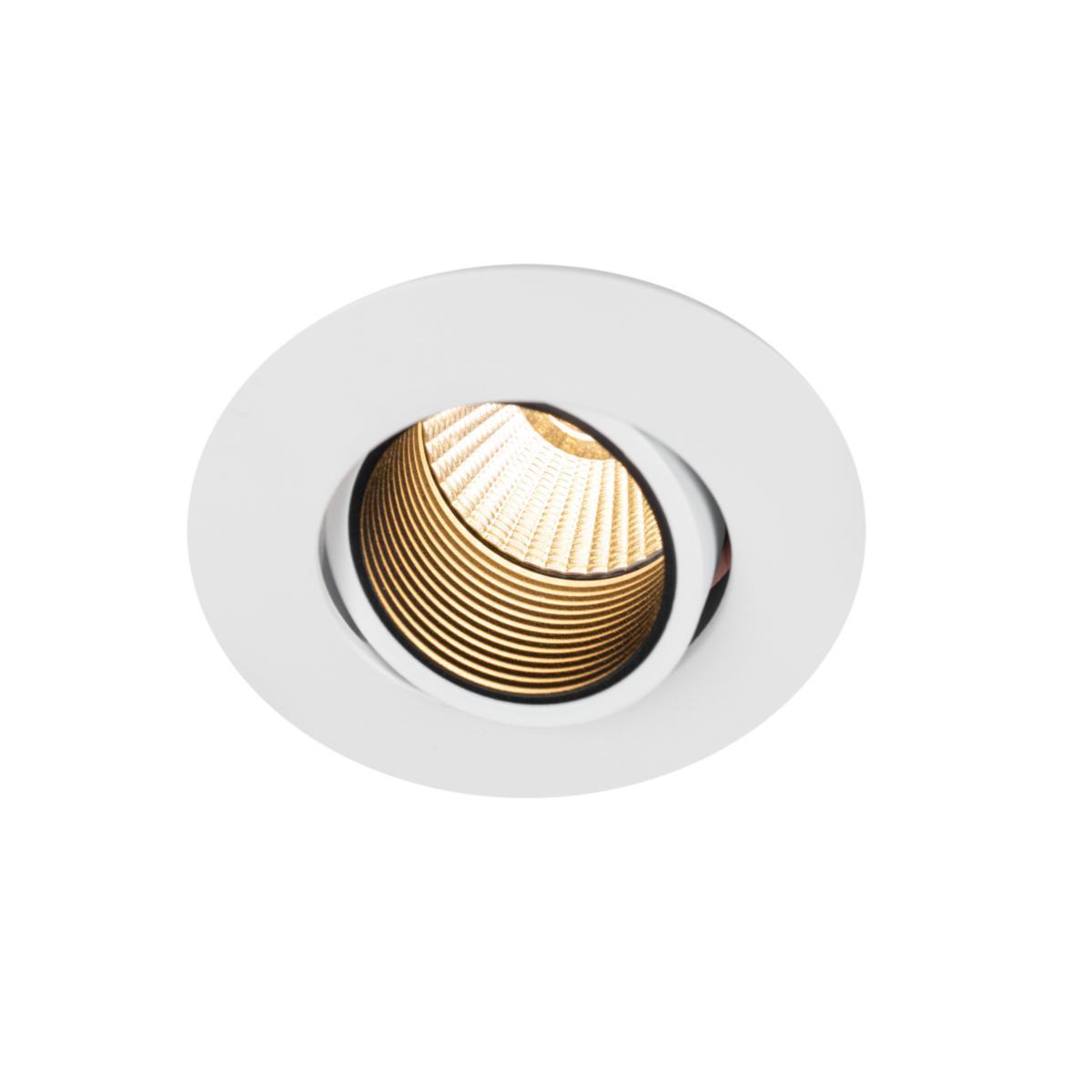

Downlight Optic Focus, Hide-a-Lite
DOWNL OPTIC FOCUS VIT 2700K OPTIC FOCUS
Article number: Suppl. article no:
7473411
7473411
Normally in stock
to view the store status of the store
to see price and stock
Complete 230V downlight with deep light source and black inside for extra well dimmed light. The reflector technology and design provide a distinct, well-defined light image. Pleasant public light in both private and public environments. Available in several color temperatures as well as Tune. Very good color rendering Ra> 90, Tune Ra> 95. Can be mounted under barrier with Spot Guard Gles. Complete with phase dimmable drive with quick-release terminal and screw-free tension relief. Dimmable with the most common dimmers on the market.
- Article number: 7473411
- Suppl. article no: 7473411
- Ean no: 7392971137414
- Material class QT432A
Technical data
- Max. system power: 9.5 W
- Rated luminous flux according to IEC 62722-2- 1: 385 lm
- Colour temperature: 2700 K
- Housing colour: White
- Surface brushed: No
- Beam angle: 21-40° - Medium beam
- Dimming DALI: No
- Outer diameter: 95 mm
- Built-in diameter: 83 mm
- Height/depth: 58 mm
- Lamp type: LED not exchangeable
- Adjustability: Not adjustable
- With light source: Yes
- Colour of light: White
- With control gear: Yes
- Type of control gear: LED operating device current-controlled
- Luminous intensity: 1400 cd
- Reflector: High-gloss
- Housing material: Aluminium
- Suitable for workplace according to EN 12464-1: No
- Number of poles: 3
- Dimming phase cut-off (trailing edge): Yes
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Dimming with push-button: No
- Dimming Sine Wave Reduction: No
- Dimming mains voltage modulation: No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming LineSwitch: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Rated ambient temperature according to IEC 62722-2-1: -20-40 °C
- Power factor: 0.9
- Photobiological safety according to EN 62471: Other
- Dimming phase cut-on (leading edge): Yes
- Filament test according to IEC 60695-2-11: 650 °C - 30 s
- Material cover: Glass transparent
- Degree of protection (IP): IP21
- Dimmable: Yes
- Lamp holder: Other
- Light distribution: Symmetric
- Protection class according to IEC 61140: II
- Light distributor: Reflector
- Light outlet: Direct
- Luminaire efficacy: 41 lm/W
- Suitable for number of light sources: 1
- Colour rendering index CRI: 90-100
- Suitable for built-in mounting: Yes
- Suitable for clamp-mounting: No
- Suitable for low voltage cable system: No
- Suitable for pedestal/floor mounting: No
- Suitable for suspended mounting: No
- Suitable for light-track mounting: No
- Suitable for traverse mounting: No
- Suitable for wall mounting: No
- Suitable for surface mounting: No
- With light sensor: No
- With movement sensor: No
- Nominal voltage: 220-240 V
- Voltage type: AC
- Suitable for ceiling mounting: Yes
- Impact strength: Other
- Dimming Touch and Dim: No
- Type of wiring: Suitable for loop-through wiring
- Connectable conductor cross section: 0.5-2.5 mm²
- Colour consistency (McAdam ellipse): SDCM3
- Covering of the luminaire with thermally insulating material possible: No
- Connection type: Push-in clamp
- Luminous flux: 385 lm
- LED nominal current at constant current: 180 mA
- REACH Date: 2022-06-01
- Built-in height/depth: 55 mm
- Dimming GPRS: No
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- REACH Information obligation: No
- Dimming depending on control gear: No
