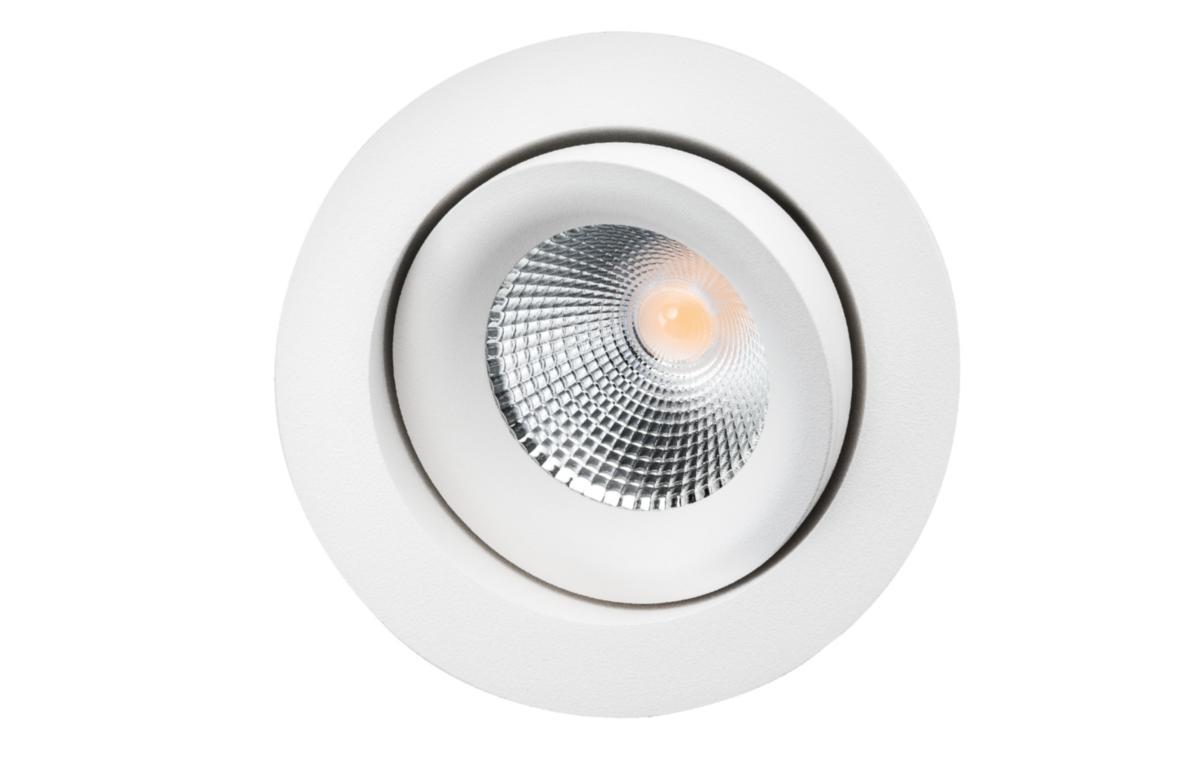

Downlight Junistar Lux, SG-Armaturen
JUNISTAR LUX WHITE 2700K JUNISTAR LUX
Article number: Suppl. article no:
7473101
902500
to see price and stock
Junistar LUX has a harmonious, flicker-free light with superb color rendering. Patented solution with 30 ° seamless adjustability in all directions in a 360 ° stepless slope and 10 year warranty. Comes with a new junction box that provides better strain relief for several cable types, more coupling space and mounting for flex hose.
- Article number: 7473101
- Suppl. article no: 902500
- Ean no: 7021989025009
- Replaces art.nbr: 7467776
- Material class QT4421
Technical data
- Packagin Size: 1 ST/20 ST/480 ST/480 ST
- Max. system power: 8 W
- Rated luminous flux according to IEC 62722-2-1: 540 lm
- Colour temperature: 2700 K
- Housing colour: White
- Surface brushed: No
- Beam angle: 41-80° - Wide beam
- Dimming DALI: No
- Outer diameter: 94 mm
- Built-in diameter: 83 mm
- Height/depth: 50 mm
- Lamp type: LED not exchangeable
- Adjustability: Swivelling
- With light source: Yes
- Colour of light: White
- With control gear: Yes
- Type of control gear: LED operating device current-controlled
- Luminous intensity: 0 cd
- Reflector: High-gloss
- Housing material: Aluminium
- Suitable for workplace according to EN 12464-1: No
- Number of poles: 2
- Dimming phase cut-off (trailing edge): Yes
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Width: 0 mm
- Built-in length: 83 mm
- Dimming with push-button: No
- Dimming Sine Wave Reduction: No
- Dimming mains voltage modulation: No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming LineSwitch: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Total harmonic distortion: 0
- Rated ambient temperature according to IEC 62722-2-1: -40-105 °C
- Power factor: 0.9
- Photobiological safety according to EN 62471: RG1
- Dimming phase cut-on (leading edge): No
- Filament test according to IEC 60695-2-11: None
- Material cover: Glass transparent
- Built-in width: 0 mm
- Degree of protection (IP): IP44
- Dimmable: Yes
- Lamp holder: None
- Conductor cross section: 1 mm²
- Light distribution: Symmetric
- Protection class according to IEC 61140: II
- Light distributor: Other
- Light outlet: Direct
- Luminaire efficacy: 68 lm/W
- Suitable for number of light sources: 1
- Colour rendering index CRI: 90-100
- Suitable for built-in mounting: Yes
- Suitable for clamp-mounting: No
- Suitable for lamp power: 7 W
- Suitable for low voltage cable system: No
- Suitable for pedestal/floor mounting: No
- Suitable for suspended mounting: No
- Suitable for light-track mounting: No
- Suitable for traverse mounting: No
- Suitable for wall mounting: No
- Suitable for surface mounting: No
- Length: 0 mm
- With light sensor: No
- With movement sensor: No
- Nominal voltage: 220-240 V
- Voltage type: AC
- Rated lifetime L70/B50 at 25 °C: 0 h
- Rated life time L80/B10 at 25 °C: 0 h
- Suitable for ceiling mounting: Yes
- Degree of protection (NEMA): Other
- Impact strength: IK00
- Dimming Touch and Dim: No
- Type of wiring: Suitable for loop-through wiring
- Connectable conductor cross section: 0.5-2.5 mm²
- Surface protection: Powder coating
- Colour consistency (McAdam ellipse): SDCM1
- Covering of the luminaire with thermally insulating material possible: No
- Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq): 90 %
- Compatible with Amazon Alexa: No
- Compatible with Apple HomeKit: No
- Compatible with Google Assistant: No
- IFTTT support available: No
- Emergency power supply integrated: No
- Built-in height/depth: 48 mm
- Connection type: Other
- Luminous flux: 500-999 lm
- LED nominal current at constant current: 0 mA
- REACH Date: 2022-08-29
- REACH contains candidate substances: Bly
- Energy efficiency class of the provided exchangeable built-in lamp: A++
- Dimming GPRS: No
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- REACH Information obligation: Yes
- Dimming depending on control gear: No
