Hide-a-lite

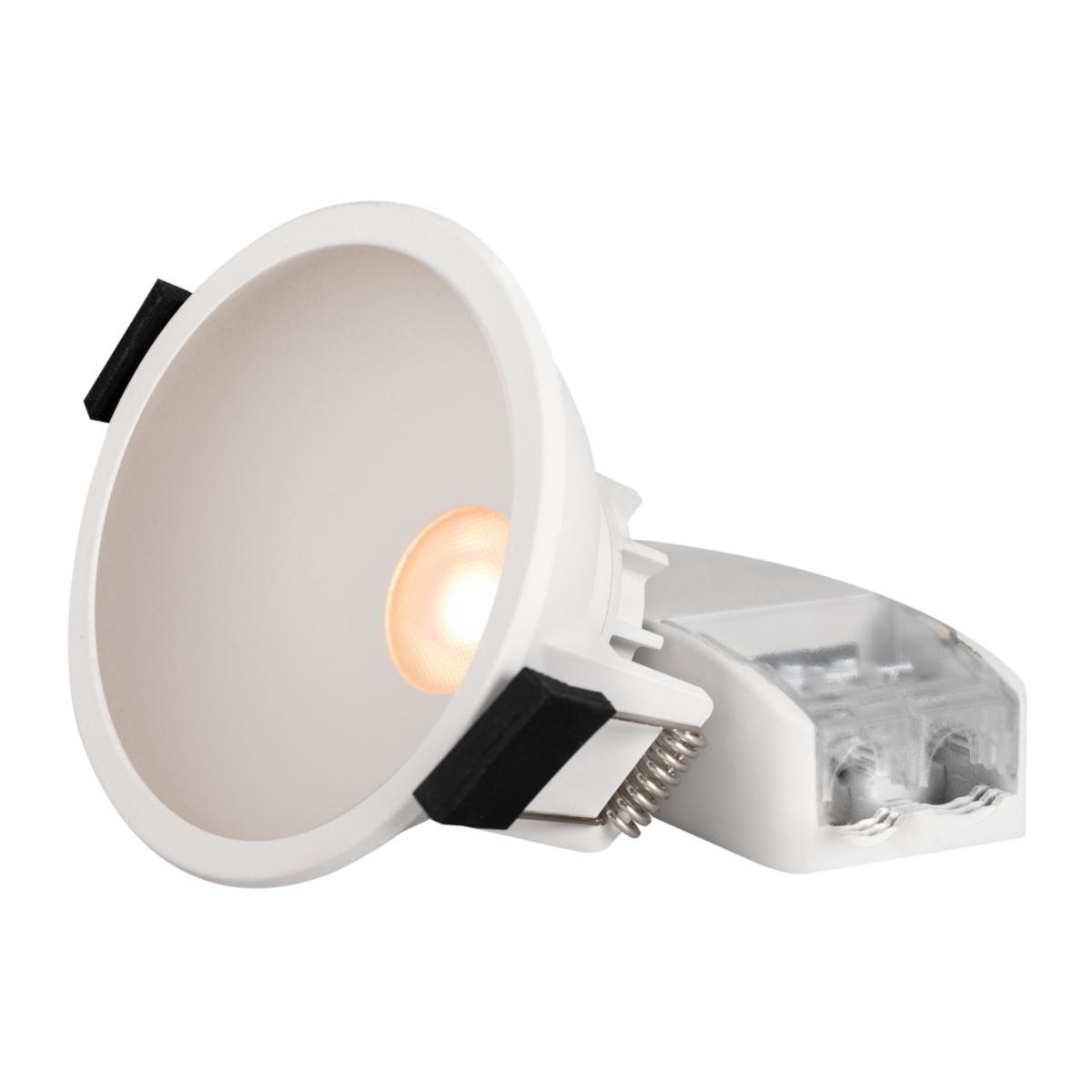

Downlight Globe G2, Hide and Lite
DL GLOBE G2 RECESSED WHI 2700K 36° SPRID GLOBE G2 RECESSED
Artikelnummer: Lev. artikelnr:
7471916
7471916
för att se saldo och pris
Exclusive downlight in modern design with bowl-shaped reflector. High light fluxes, deeply placed light source provides a well-dimmed light. The appearance of the luminaire can be enhanced with reflectors in different colors to match the choice of material and interior. Globe G2 is the obvious choice for both the home environment and the hotel and restaurant environment. Complete with phase-dimmable drive device, 3-pin quick-release terminal for forwarding and strain relief for cable or flex hose 16mm. Dimmable with the most common dimmers on the market.
- Article number: 7471916
- Suppl. article no: 7471916
- Ean no: 7392971136127
- Material class QT432A
Teknisk data
- Packagin Size: 1 ST/18 ST/18 ST
- Max. system power: 8 W
- Rated luminous flux according to IEC 62722-2-1: 640 lm
- Colour temperature: 2700 K
- Housing colour: White
- Surface brushed: No
- Beam angle: Medium beam 21-40°
- Dimming DALI: No
- Outer diameter: 103 mm
- Built-in diameter: 92 mm
- Height/depth: 58 mm
- Lamp type: LED not exchangeable
- Adjustability: Not adjustable
- With light source: Yes
- Colour of light: White
- With control gear: Yes
- Type of control gear: LED operating device current-controlled
- Luminous intensity: 1360 cd
- Reflector: Matt
- Housing material: Aluminium
- Suitable for workplace according to EN 12464-1: No
- Number of poles: 3
- Dimming phase cut-off (trailing edge): Yes
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Dimming with push-button: No
- Dimming Sine Wave Reduction: No
- Dimming mains voltage modulation: No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming LineSwitch: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Rated ambient temperature according to IEC 62722-2-1: -20-40 °C
- Dimming phase cut-on (leading edge): Yes
- Filament test according to IEC 60695-2-11: 650 °C - 30 s
- Material cover: None
- Degree of protection (IP): IP44
- Dimmable: Yes
- Lamp holder: None
- Conductor cross section: 0.75 mm²
- Light distribution: Symmetric
- Protection class according to IEC 61140: II
- Light distributor: Focal lens
- Light outlet: Direct
- Luminaire efficacy: 80 lm/W
- Suitable for number of light sources: 1
- Colour rendering index CRI: 90-100
- Suitable for built-in mounting: Yes
- Suitable for clamp-mounting: No
- Suitable for lamp power: 8 W
- Suitable for low voltage cable system: No
- Suitable for pedestal/floor mounting: No
- Suitable for suspended mounting: No
- Suitable for light-track mounting: No
- Suitable for traverse mounting: No
- Suitable for wall mounting: No
- Suitable for surface mounting: No
- With movement sensor: No
- Nominal voltage: 220-240 V
- Voltage type: AC
- Rated lifetime L70/B50 at 25 °C: 80000 h
- Suitable for ceiling mounting: Yes
- Dimming Touch and Dim: No
- Type of wiring: Suitable for loop-through wiring
- Connectable conductor cross section: 0.5-2.5 mm²
- Colour consistency (McAdam ellipse): SDCM3
- Covering of the luminaire with thermally insulating material possible: No
- Built-in height/depth: 55 mm
- Luminous flux: 640 lm
- LED nominal current at constant current: 180 mA
- REACH Date: 2022-06-01
- Dimming GPRS: No
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- REACH Information obligation: No
- Dimming depending on control gear: No
