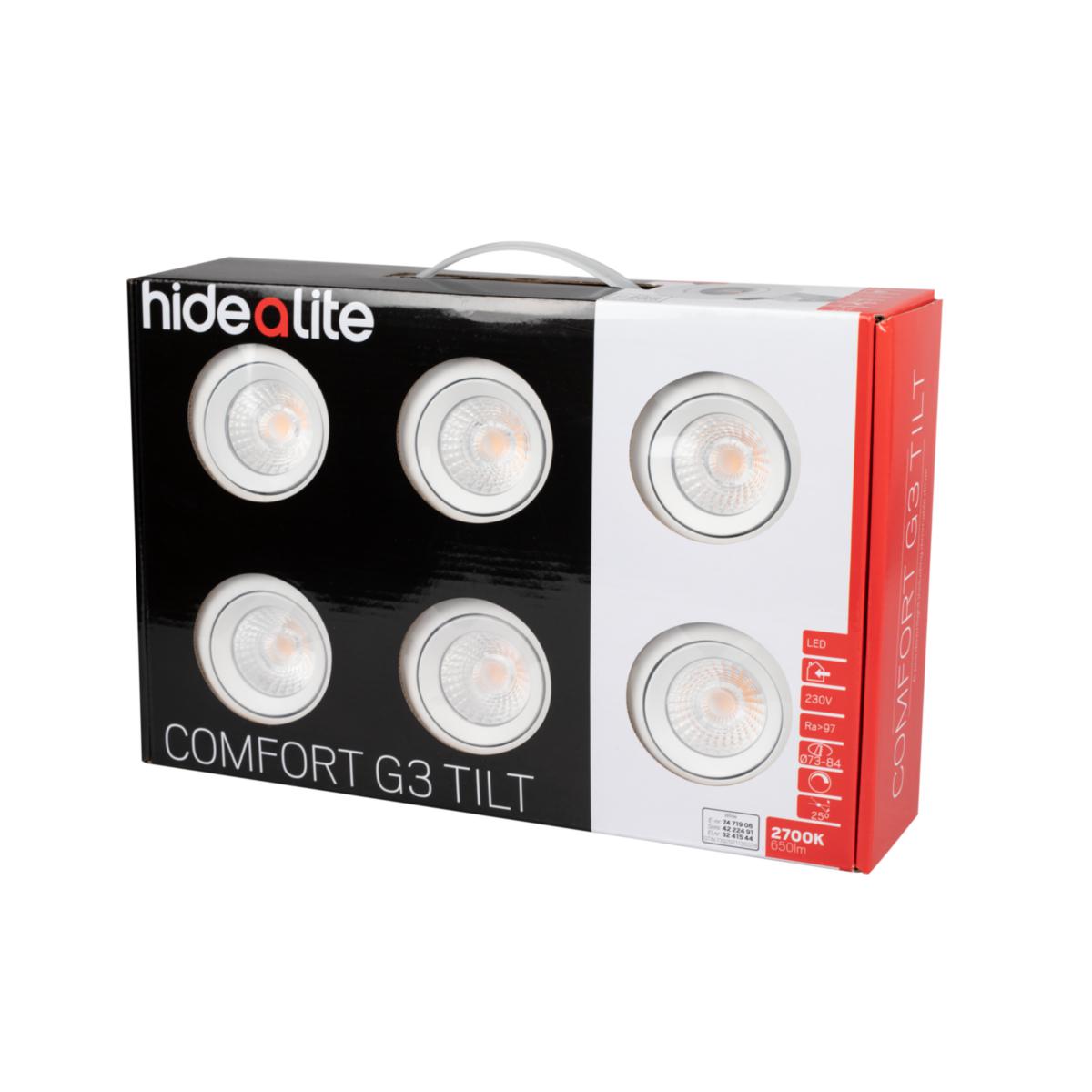

Downlight Comfort G3 Tilt, Hide and Lite
DL COMF G3 TILT 6-P WHI 2700K VIT 36° SPRID COMFORT G3
Article number: Suppl. article no:
7471906
7471906
to see price and stock
With its high luminous flux, fantastic color reproduction and high efficiency, the Comfort G3 is in a class of its own. High-performance downlight IP44, fits just as well as general lighting in the home environment as in the public space. Luminaire with hole punching dimensions Ø73-84mm. Can be mounted in 28mm sparse panel with 13mm plaster when drilling Ø90mm. Complete with phase-dimmable drive device, 3-pin quick-release terminal for forwarding and strain relief for cable or flex hose 16mm. Dimmable with the most common dimmers on the market.
- Article number: 7471906
- Suppl. article no: 7471906
- Ean no: 7392971136028
- Material class QT4320
Technical data
- Packagin Size: 1 FRP/3 FRP/3 FRP
- Max. system power: 7.5 W
- Rated luminous flux according to IEC 62722-2- 1: 650 lm
- Colour temperature: 2700 K
- Housing colour: White
- Surface brushed: No
- Beam angle: 21-40° - Medium beam
- Dimming DALI: No
- Outer diameter: 95 mm
- Height/depth: 41 mm
- Lamp type: LED not exchangeable
- Adjustability: Rotating and swivelling
- With light source: Yes
- Colour of light: White
- With control gear: Yes
- Type of control gear: LED operating device current-controlled
- Luminous intensity: 1470 cd
- Reflector: Matt
- Housing material: Aluminium
- Suitable for workplace according to EN 12464-1: No
- Number of poles: 3
- Dimming phase cut-off (trailing edge): Yes
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Dimming with push-button: No
- Dimming Sine Wave Reduction: No
- Dimming mains voltage modulation: No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming LineSwitch: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Rated ambient temperature according to IEC 62722-2-1: -20-40 °C
- Dimming phase cut-on (leading edge): Yes
- Degree of protection (IP): IP44
- Dimmable: Yes
- Lamp holder: None
- Conductor cross section: 0.75 mm²
- Light distribution: Symmetric
- Protection class according to IEC 61140: II
- Light distributor: Focal lens
- Light outlet: Direct
- Luminaire efficacy: 87 lm/W
- Suitable for number of light sources: 1
- Colour rendering index CRI: 90-100
- Suitable for built-in mounting: Yes
- Suitable for clamp-mounting: No
- Suitable for lamp power: 7.5 W
- Suitable for low voltage cable system: No
- Suitable for pedestal/floor mounting: No
- Suitable for suspended mounting: No
- Suitable for light-track mounting: No
- Suitable for traverse mounting: No
- Suitable for surface mounting: No
- With light sensor: No
- With movement sensor: No
- Nominal voltage: 220-240 V
- Voltage type: AC
- Rated life time L80/B10 at 25 °C: 100000 h
- Suitable for ceiling mounting: Yes
- Dimming Touch and Dim: No
- Type of wiring: Suitable for loop-through wiring
- Connectable conductor cross section: 0.5-2.5 mm²
- Surface protection: Powder coating
- Colour consistency (McAdam ellipse): SDCM3
- Covering of the luminaire with thermally insulating material possible: No
- Luminous flux: 650 lm
- LED nominal current at constant current: 180 mA
- REACH Date: 2022-06-01
- Built-in height/depth: 38 mm
- Dimming GPRS: No
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- REACH Information obligation: No
- Dimming depending on control gear: No
