Hide-a-lite

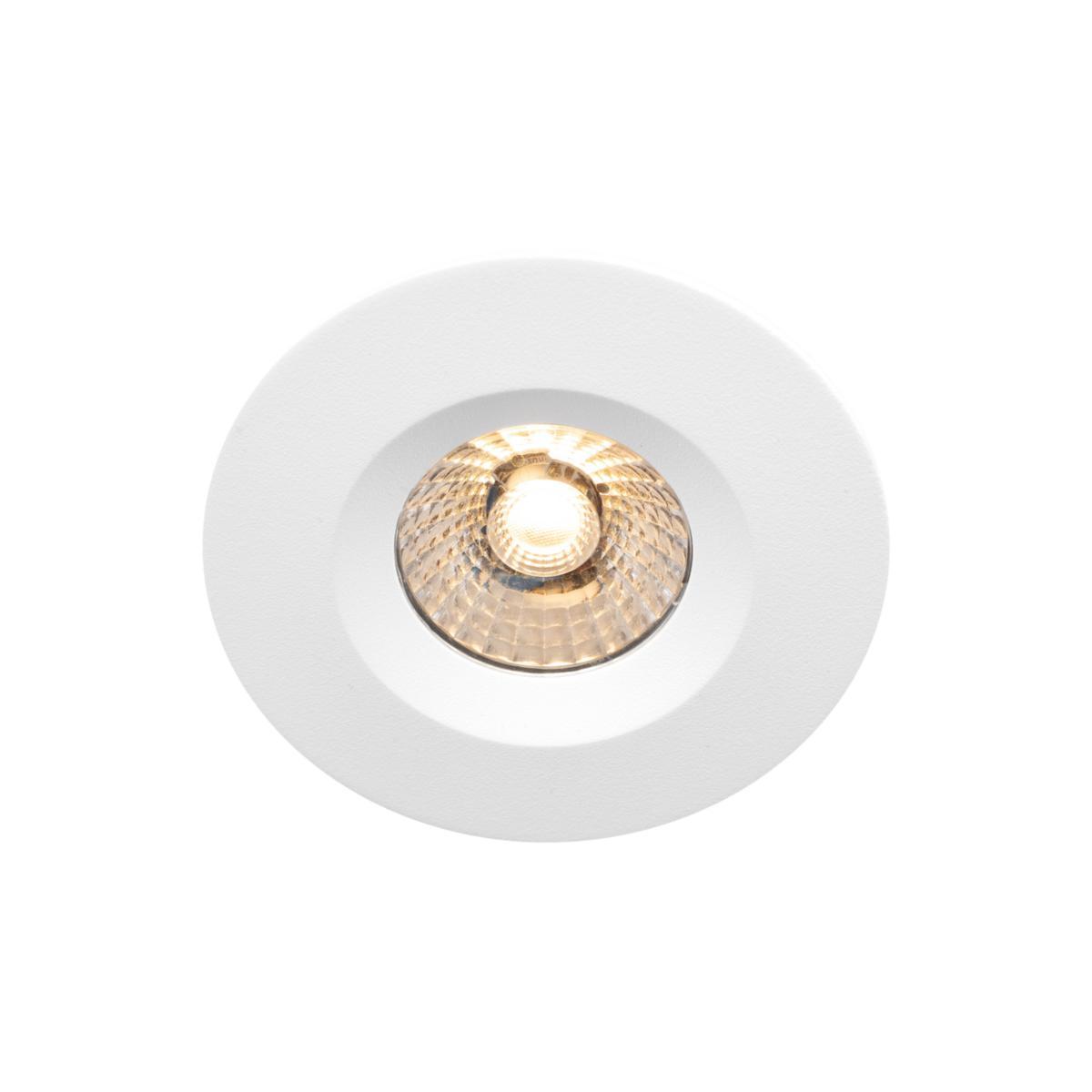

Downlight Comfort G3, Hide and Lite

DL COMFORT G3 WHITE TUNE 36° SPRID COMFORT G3
Artikelnummer:
7471896
Lev. artikelnr:
7471896





 för att se saldo och pris
Produkten är miljöbedömd av SundaHusProdukten är bedömd hos Byggvarubedömningen med totalbedömningen Accepteras.

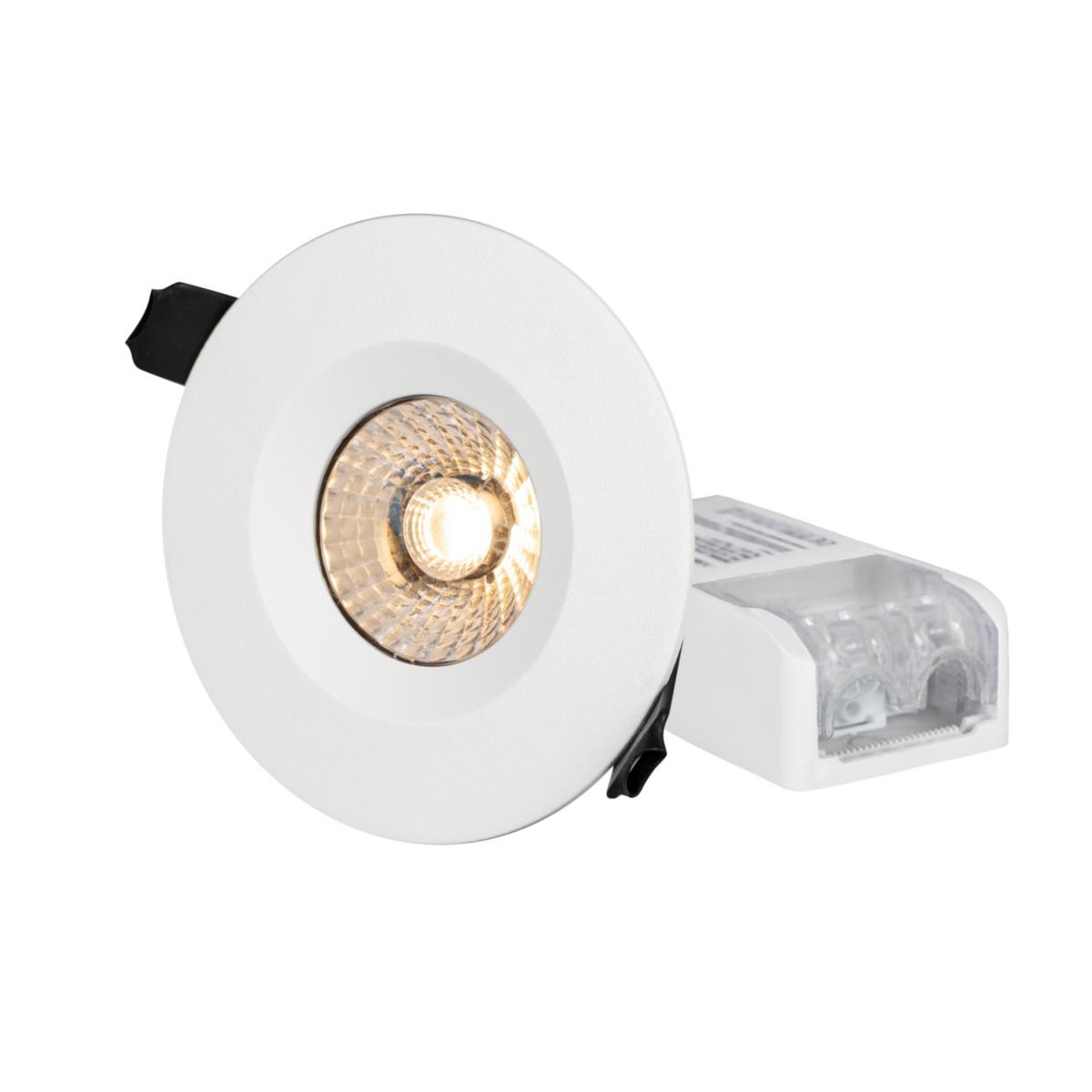

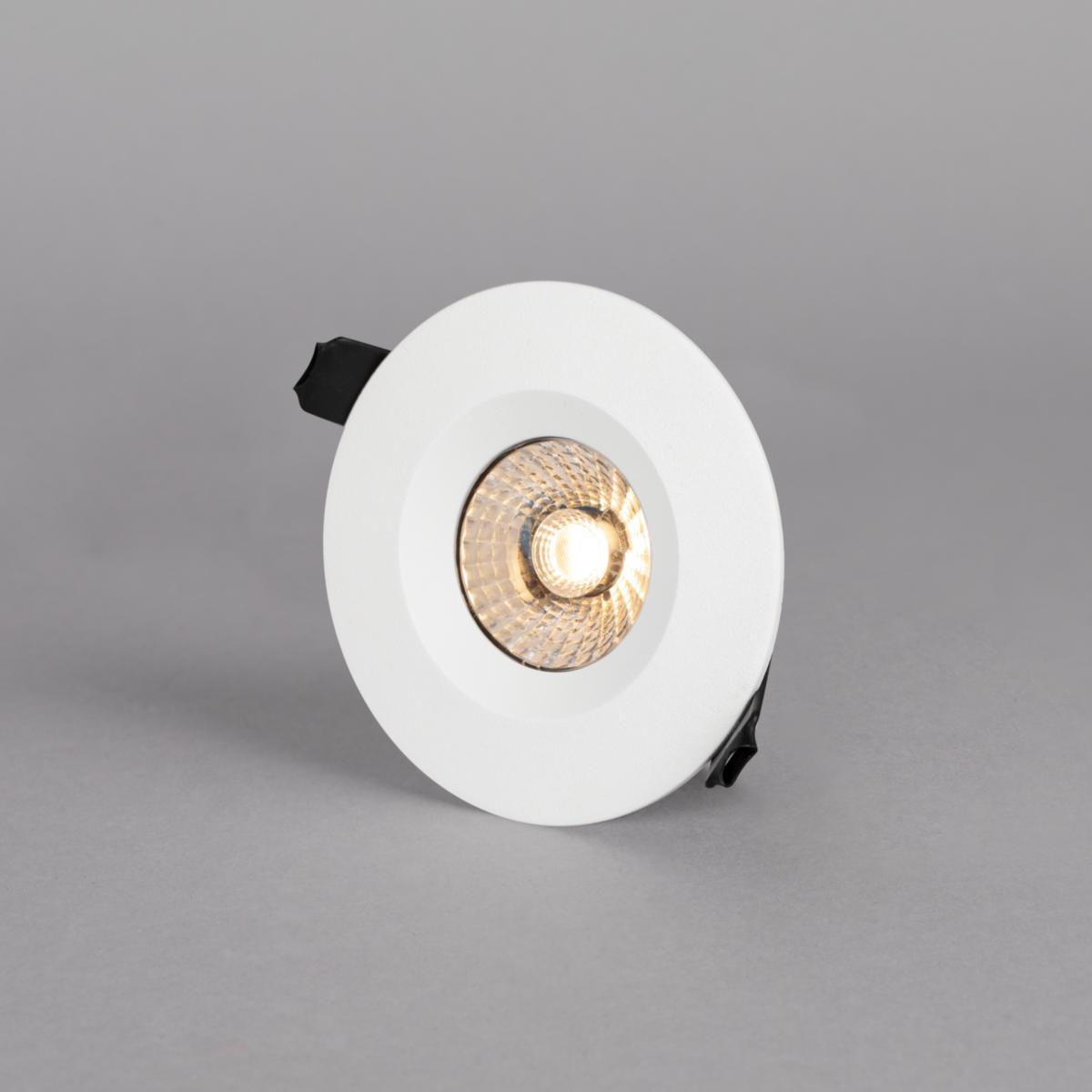

With its high luminous flux, fantastic color reproduction and high efficiency, the Comfort G3 is in a class of its own. High-performance downlight IP44, suitable as well as general lighting for the home environment as in the public space. Luminaire with hole punching dimensions Ø73-84mm. Can be mounted in 28mm sparse panel with 13mm plaster when drilling Ø90mm. Complete with phase-dimmable drive device, 3-pin quick-release terminal for forwarding and strain relief for cable or flex hose 16mm. Dimmable with the most common dimmers on the market.
  • Article number:
    7471896
  • Suppl. article no:
    7471896
  • Ean no:
    7392971135922
  • Material class
    QT432A
Teknisk data
  • Packagin Size: 1 ST/20 ST/20 ST
  • Max. system power: 7.5 W
  • Rated luminous flux according to IEC 62722-2-1: 520 lm
  • Colour temperature: 2000-2700 K
  • Housing colour: White
  • Surface brushed: No
  • Beam angle: Medium beam 21-40°
  • Dimming DALI: No
  • Outer diameter: 95 mm
  • Built-in diameter: 73 mm
  • Height/depth: 41 mm
  • Lamp type: LED not exchangeable
  • Adjustability: Not adjustable
  • With light source: Yes
  • Colour of light: White
  • With control gear: Yes
  • Type of control gear: LED operating device current-controlled
  • Luminous intensity: 1170 cd
  • Reflector: Matt
  • Housing material: Aluminium
  • Suitable for workplace according to EN 12464-1: No
  • Number of poles: 3
  • Dimming phase cut-off (trailing edge): Yes
  • Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
  • Dimming with push-button: No
  • Dimming Sine Wave Reduction: No
  • Dimming mains voltage modulation: No
  • Dimming 0-10 V: No
  • Dimming 1-10 V: No
  • Dimming DMX: No
  • Dimming DSI: No
  • Dimming LineSwitch: No
  • Dimming RF: No
  • Dimming Zigbee: No
  • Dimming potentiometer (integrated): No
  • Dimming programmable: No
  • Dimming manufacturer's proprietary system: No
  • Rated ambient temperature according to IEC 62722-2-1: -20-40 °C
  • Dimming phase cut-on (leading edge): Yes
  • Material cover: None
  • Degree of protection (IP): IP44
  • Dimmable: Yes
  • Lamp holder: None
  • Conductor cross section: 0.75 mm²
  • Light distribution: Symmetric
  • Protection class according to IEC 61140: II
  • Light distributor: Focal lens
  • Light outlet: Direct
  • Luminaire efficacy: 69 lm/W
  • Suitable for number of light sources: 1
  • Colour rendering index CRI: 90-100
  • Suitable for built-in mounting: Yes
  • Suitable for clamp-mounting: No
  • Suitable for lamp power: 7.5 W
  • Suitable for low voltage cable system: No
  • Suitable for pedestal/floor mounting: No
  • Suitable for suspended mounting: No
  • Suitable for light-track mounting: No
  • Suitable for traverse mounting: No
  • Suitable for wall mounting: No
  • Suitable for surface mounting: No
  • With movement sensor: No
  • Nominal voltage: 220-240 V
  • Voltage type: AC
  • Suitable for ceiling mounting: Yes
  • Dimming Touch and Dim: No
  • Type of wiring: Suitable for loop-through wiring
  • Connectable conductor cross section: 0.5-2.5 mm²
  • Colour consistency (McAdam ellipse): SDCM3
  • Covering of the luminaire with thermally insulating material possible: No
  • Built-in height/depth: 38 mm
  • Luminous flux: 520 lm
  • LED nominal current at constant current: 180 mA
  • REACH Date: 2022-06-01
  • Dimming GPRS: No
  • Energy efficiency class of the built-in lamp: A++, A+, A (LED)
  • REACH Information obligation: No
  • Dimming depending on control gear: No
