SG Armaturen

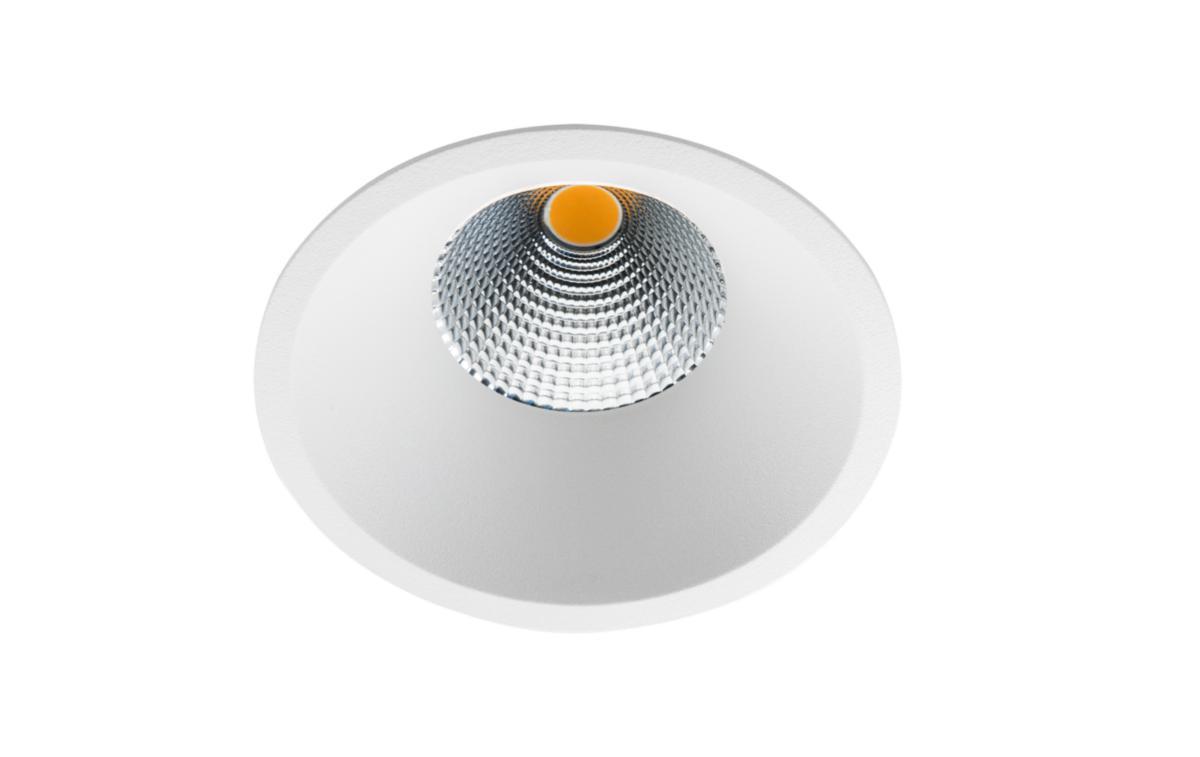

Downlight Soft Slim, SG-Armaturen

SOFT SLIM MATT-WHITE 2700K SOFT SLIM
Article number:
7470235
Suppl. article no:
903214





 to see price and stock
Produkten är bedömd hos Byggvarubedömningen med totalbedömningen Accepteras.
With a minimal edge, Soft Slim provides an exclusive wrapped look for modern homes and buildings. A downlight with an elevated light source, modern LED and reflector technology provides high light output, efficient light image and glare-free light with very good color reproduction and several color temperatures to choose from. Easy-to-install and low-profile luminaire complete with phase-dimmable actuator, quick terminals for forwarding and screw-free strain relief for easy connection.
  • Article number:
    7470235
  • Suppl. article no:
    903214
  • Ean no:
    7021989032144
  • Material class
    QT442A
Technical data
  • Packagin Size: 1 ST/20 ST/480 ST/480 ST
  • Max. system power: 10.9 W
  • Rated luminous flux according to IEC 62722-2-1: 730 lm
  • Colour temperature: 2700 K
  • Housing colour: White
  • Dimming DALI: No
  • Housing material: Aluminium
  • Type of control gear: LED operating device current-controlled
  • With control gear: Yes
  • Outer diameter: 94 mm
  • Length: 0 mm
  • Beam angle: 41-80° - Wide beam
  • Degree of protection (IP): IP54
  • Protection class according to IEC 61140: II
  • Reflector: High-gloss
  • Colour rendering index CRI: 90-100
  • Adjustability: Not adjustable
  • Luminous flux: 700-799 lm
  • Colour of light: White
  • Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
  • Light distribution: Symmetric
  • Lamp type: LED not exchangeable
  • Suitable for workplace according to EN 12464-1: No
  • Connectable conductor cross section: 0.5-2.5 mm²
  • Number of poles: 2
  • Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq): 80 %
  • Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq): 0 %
  • Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq): 90 %
  • Surface brushed: No
  • Width: 0 mm
  • Dimming with push-button: No
  • Dimmable: Yes
  • Dimming Sine Wave Reduction: No
  • Dimming mains voltage modulation: No
  • Dimming 0-10 V: No
  • Dimming 1-10 V: No
  • Dimming DALI-2: No
  • Dimming DMX: No
  • Dimming DSI: No
  • Dimming LineSwitch: No
  • Dimming RF: No
  • Dimming Zigbee: No
  • Dimming phase cut-off (trailing edge): Yes
  • Dimming phase cut-on (leading edge): No
  • Dimming Touch and Dim: No
  • Dimming potentiometer (integrated): No
  • Dimming programmable: No
  • Dimming manufacturer's proprietary system: No
  • Failure rate at median useful life of 100,000 h at 25 °C ambient (tq): 20 %
  • Failure rate at median useful life of 35,000 h at 25 °C ambient (tq): 0 %
  • Failure rate at median useful life of 50,000 h at 25 °C ambient (tq): 10 %
  • Photobiological safety according to EN 62471: Other
  • Colour consistency (McAdam ellipse): SDCM2
  • Filament test according to IEC 60695-2-11: None
  • Height/depth: 51 mm
  • Built-in width: 0 mm
  • Built-in diameter: 83 mm
  • Built-in length: 0 mm
  • Beam angle adjustable: No
  • Colour of light adjustable: No
  • Compatible with Amazon Alexa: No
  • Compatible with Apple HomeKit: No
  • Compatible with Google Assistant: No
  • Constant light output (CLO): No
  • Lamp holder: None
  • Conductor cross section: 1.5 mm²
  • Luminous flux adjustable: No
  • Light distributor: Reflector
  • Luminaire efficacy: 67 lm/W
  • Light outlet: Direct
  • Suitable for number of light sources: 1
  • Suitable for built-in mounting: Yes
  • Suitable for clamp-mounting: No
  • Suitable for lamp power: 6-9 W
  • Suitable for low voltage cable system: No
  • Suitable for pedestal/floor mounting: No
  • Suitable for suspended mounting: No
  • Suitable for light-track mounting: No
  • Suitable for ceiling mounting: Yes
  • Suitable for traverse mounting: No
  • Suitable for surface mounting: No
  • Material cover: Glass transparent
  • Max. number of luminaires per miniature circuit breaker B16 (MCB): 123
  • Max. number of luminaires per miniature circuit breaker C16 (MCB): 123
  • With light source: Yes
  • With light sensor: No
  • With movement sensor: No
  • IFTTT support available: No
  • Nominal voltage: 220-240 V
  • Rated lifetime L70/B50 at 25 °C: 0 h
  • Rated ambient temperature according to IEC 62722-2-1: 25 °C
  • Emergency power supply integrated: No
  • Degree of protection (NEMA): Other
  • Impact strength: IK00
  • Voltage type: AC
  • Type of wiring: Suitable for loop-through wiring
  • Exchangeable control gear: Yes
  • Suitable for wall mounting: No
  • Surface protection: Powder coating
  • Covering of the luminaire with thermally insulating material possible: No
  • Built-in height/depth: 51 mm
  • Connection type: Other
  • LED nominal current at constant current: 180-255 mA
  • Rated life time L80/B10 at 25 °C: 0 h
  • Energy efficiency class of the provided exchangeable built-in lamp: A++
  • Dimming GPRS: No
  • Energy efficiency class of the built-in lamp: A++, A+, A (LED)
  • Dimming depending on control gear: Yes
