Hide-a-lite

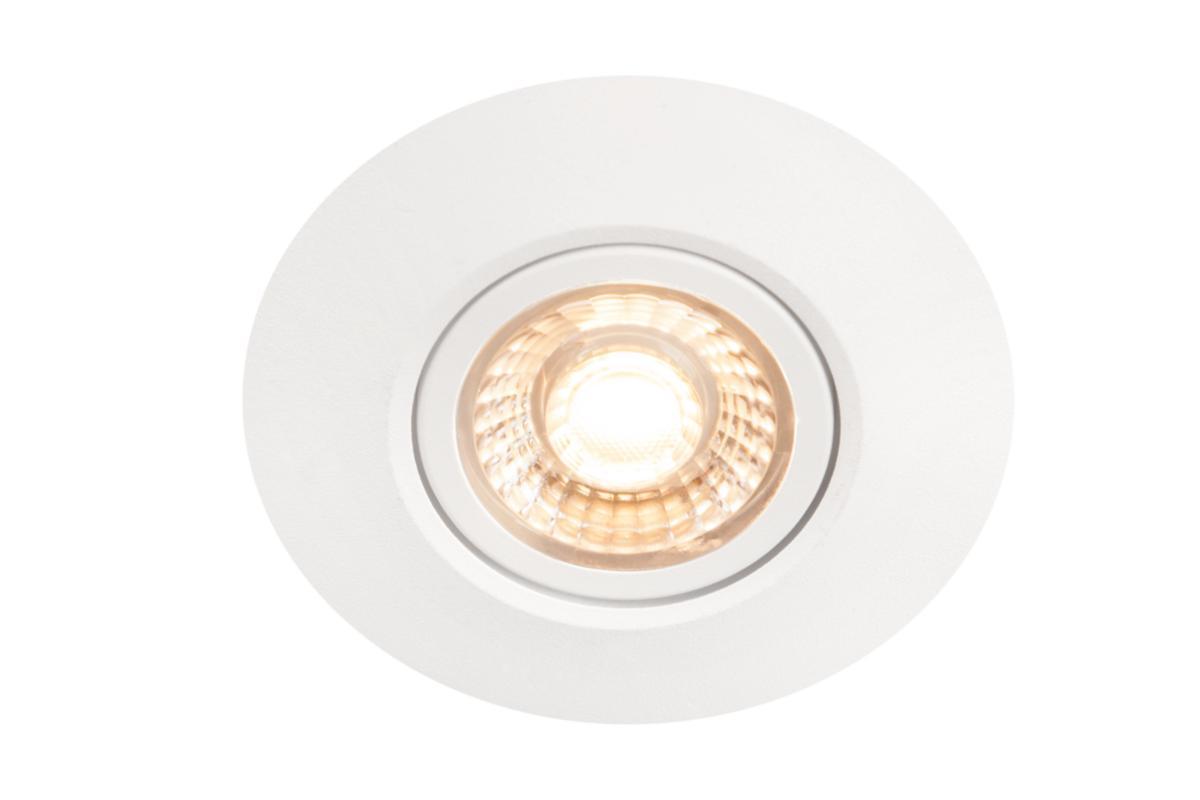

Downlight LED Comfort Smart ISO, Hide-a-lite
DL COMF SMART ISO WHITE 2700K DOWNLIGHT
Article number: Suppl. article no:
7470014
7470014
to see price and stock
Smart, easy-to-install downlight for 230V with Comfortlins, phase-dimmable drive device and switchable quick-release terminal integrated in the luminaire housing. Adapted for ceiling and connection boxes with keyhole mounting or directly in insulation with the included ISO cover. Minimum dose depth 30mm. Complete, energy-efficient ROT luminaire that requires little space, also suitable for casting via a box in a concrete roof. Available in white lacquered in 2700K, 3000K and Tune, fits in all rooms thanks to IP44 rating.
- Article number: 7470014
- Suppl. article no: 7470014
- Ean no: 7392971132440
- Material class QT432A
Technical data
- Packagin Size: 1 ST/50 ST
- Max. system power: 6 W
- Rated luminous flux according to IEC 62722-2-1: 420 lm
- Colour temperature: 2700 K
- Housing colour: White
- Luminous flux: 420 lm
- Surface brushed: No
- Beam angle: Medium beam 21-40°
- Dimming DALI: No
- Outer diameter: 100 mm
- Built-in diameter: 68 mm
- Height/depth: 36 mm
- Lamp type: LED not exchangeable
- Adjustability: Swivelling
- With light source: Yes
- Colour of light: White
- With control gear: Yes
- Type of control gear: LED operating device current-controlled
- Luminous intensity: 880 cd
- Reflector: None
- Housing material: Aluminium
- Suitable for workplace according to EN 12464-1: No
- Number of poles: 4
- Dimming phase cut-off (trailing edge): Yes
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Dimming with push-button: No
- Dimming Sine Wave Reduction: No
- Dimming mains voltage modulation: No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming LineSwitch: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Rated ambient temperature according to IEC 62722-2-1: -20-40 °C
- Dimming phase cut-on (leading edge): Yes
- Filament test according to IEC 60695-2-11: 650 °C - 30 s
- Material cover: None
- Built-in width: 83 mm
- Degree of protection (IP): IP44
- Dimmable: Yes
- Lamp holder: None
- Light distribution: Symmetric
- Protection class according to IEC 61140: II
- Light distributor: Focal lens
- Light outlet: Direct
- Luminaire efficacy: 70 lm/W
- Suitable for number of light sources: 1
- Colour rendering index CRI: 90-100
- Suitable for built-in mounting: Yes
- Suitable for clamp-mounting: No
- Suitable for low voltage cable system: No
- Suitable for pedestal/floor mounting: No
- Suitable for suspended mounting: No
- Suitable for light-track mounting: No
- Suitable for traverse mounting: No
- Suitable for wall mounting: No
- Suitable for surface mounting: No
- With light sensor: No
- With movement sensor: No
- Nominal voltage: 230 V
- Voltage type: AC
- Rated life time L70/B50 at 25 °C: 100000 h
- Suitable for ceiling mounting: Yes
- Impact strength: Other
- Dimming Touch and Dim: No
- Type of wiring: Suitable for loop-through wiring
- Connectable conductor cross section: 0.5-1.5 mm²
- Colour consistency (McAdam ellipse): SDCM3
- Covering of the luminaire with thermally insulating material possible: Yes
- Built-in height/depth: 27 mm
- Connection type: Push-in clamp
- Dimming GPRS: No
- Dimming depending on control gear: No
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- REACH Date: 2022-06-01
- REACH Information obligation: No
