SG Armaturen

Downlight LED Isosafe Uniled, SG-Armaturen

UNILED ISOSAFE MW 2700K
Article number:
7467859
Suppl. article no:
904201





 to see price and stock
Produkten är miljöbedömd av SundaHusProdukten är bedömd hos Byggvarubedömningen med totalbedömningen Accepteras.Denna produkt innehåller ett eller flera ämnen på kandidatförteckningen.

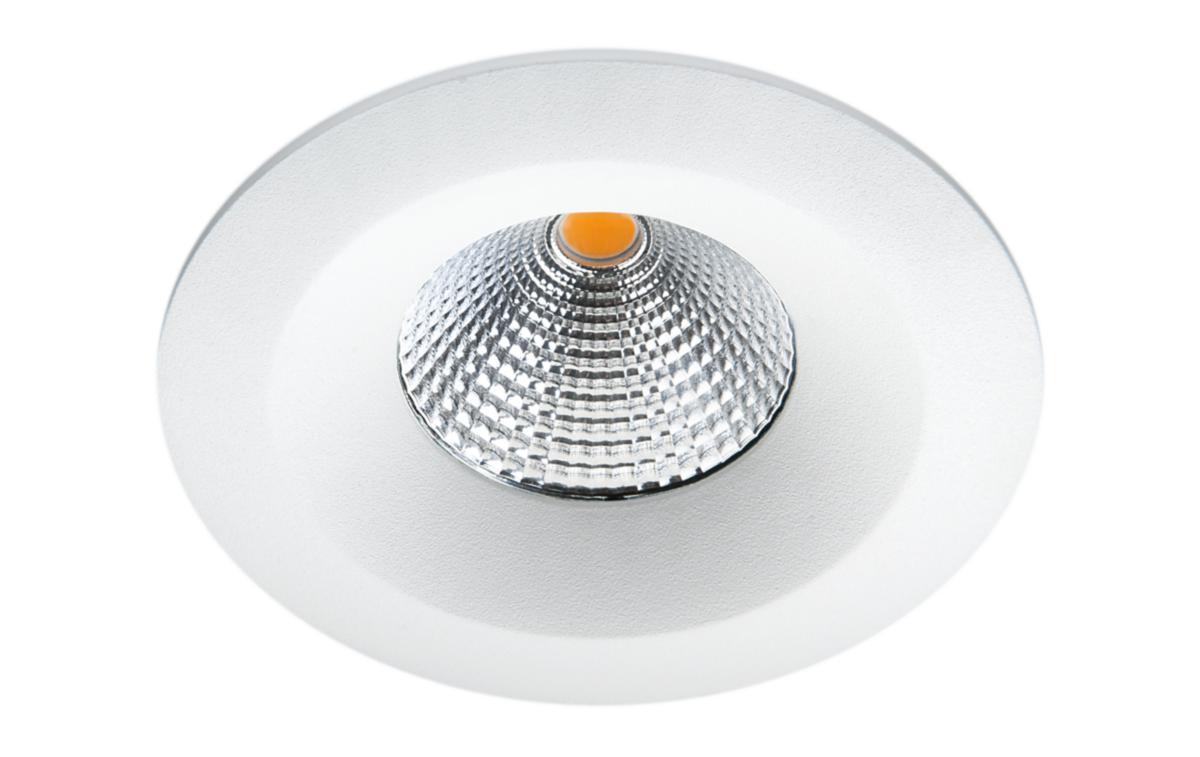

Uniled Isosafe is a recessed downlight that can be installed directly in insulation. It is low-profile 35mm and can handle 28mm sparse + plaster. The luminaire is delivered complete with drive and a quick-connect terminal block for a maximum of 2.5mm2. The high Cri value is Ra < 95 which contributes to really good color reproduction.There is a 5 year warranty on the product and a 50,000h hour burn time L90 / B10 is guaranteed.The product is fully dimmable and the recommended dimmer is 13 603 12.
Also available in DimToWarm (DTM) version.
  • Article number:
    7467859
  • Suppl. article no:
    904201
  • Ean no:
    7021989042013
  • Material class
    QT4420
Technical data
  • Packagin Size: 1 PCS/20 PCS/480 PCS/480 PCS
  • Max. system power: 7 W
  • Rated luminous flux according to IEC 62722-2-1: 610 lm
  • Colour temperature: 2700 K
  • Housing colour: White
  • Luminous flux: 500-1000 lm
  • Surface brushed: No
  • Beam angle: 41-80° - Wide beam
  • Outer diameter: 94 mm
  • Built-in diameter: 83 mm
  • Height/depth: 37 mm
  • Lamp type: LED not exchangeable
  • Adjustability: Not adjustable
  • With light source: Yes
  • Colour of light: White
  • With control gear: Yes
  • Type of control gear: LED operating device current-controlled
  • Reflector: High-gloss
  • Housing material: Aluminium
  • Suitable for workplace according to EN 12464-1: No
  • Number of poles: 2
  • Dimming phase cut-off (trailing edge): Yes
  • Rated ambient temperature according to IEC 62722-2-1: 25 °C
  • Power factor: 0.9
  • Photobiological safety according to EN 62471: Other
  • Filament test according to IEC 60695-2-11: None
  • Material cover: Glass transparent
  • Degree of protection (IP): IP54
  • Lamp holder: None
  • Conductor cross section: 1 mm²
  • Light distribution: Symmetric
  • Protection class according to IEC 61140: II
  • Light distributor: Other
  • Light outlet: Direct
  • Luminaire efficacy: 87 lm/W
  • Suitable for number of light sources: 1
  • Colour rendering index CRI: 90-100
  • Suitable for built-in mounting: Yes
  • Suitable for clamp-mounting: No
  • Suitable for lamp power: 7 W
  • Suitable for low voltage cable system: No
  • Suitable for pedestal/floor mounting: No
  • Suitable for suspended mounting: No
  • Suitable for light-track mounting: No
  • Suitable for traverse mounting: No
  • Suitable for wall mounting: No
  • Suitable for surface mounting: No
  • With light sensor: No
  • With movement sensor: No
  • Nominal voltage: 220-230 V
  • Voltage type: AC
  • Suitable for ceiling mounting: Yes
  • Degree of protection (NEMA): Other
  • Impact strength: IK00
  • Type of wiring: Suitable for loop-through wiring
  • Connectable conductor cross section: 0.5-2.5 mm²
  • Surface protection: Powder coating
  • Colour consistency (McAdam ellipse): SDCM2
  • Covering of the luminaire with thermally insulating material possible: Yes
  • Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq): 90 %
  • Failure rate at median useful life of 50,000 h at 25 °C ambient (tq): 10 %
  • Beam angle adjustable: No
  • Colour of light adjustable: No
  • Compatible with Amazon Alexa: No
  • Compatible with Apple HomeKit: No
  • Compatible with Google Assistant: No
  • Constant light output (CLO): No
  • Luminous flux adjustable: No
  • Max. number of luminaires per miniature circuit breaker B16 (MCB): 123
  • Max. number of luminaires per miniature circuit breaker C16 (MCB): 123
  • IFTTT support available: No
  • Emergency power supply integrated: No
  • Stroboscope effect value SVM: 0
  • Exchangeable control gear: No
  • Energy efficiency class: A++
  • Built-in height/depth: 35 mm
  • Connection type: Other
  • Energy efficiency class of the built-in lamp: A++, A+, A (LED)
  • REACH Date: 2022-08-25
  • REACH contains candidate substances: Bly
  • Energy efficiency class of the provided exchangeable built-in lamp: A+
  • REACH Information obligation: Yes
