SG Armaturen

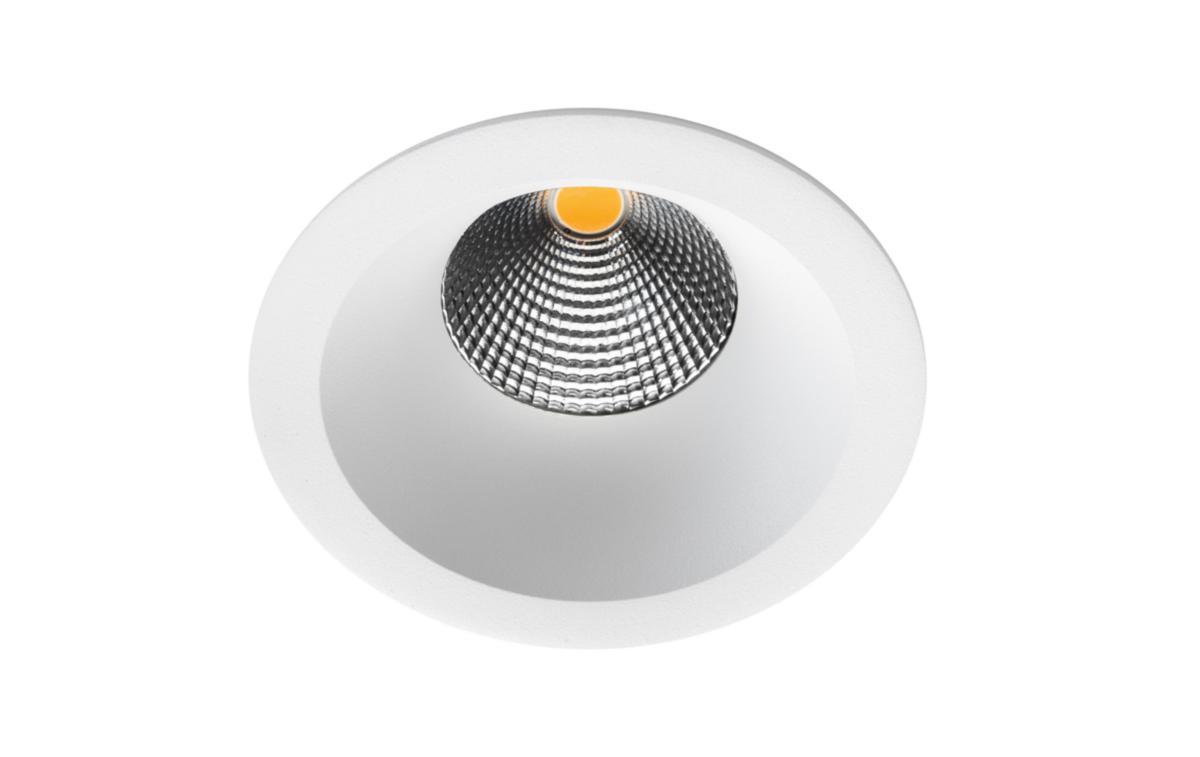

Downlight LED Junistar Soft, SG-Armaturen
JUNISTAR SOFT MW 9W 2700K
Artikelnummer: Lev. artikelnr:
7467853
903211
för att se saldo och pris
Junistar Soft is a luminaire with a reflector and light source that is moved deep into the luminaire housing. This contributes to a light with good dimming. The high protection class IP44 means that the luminaire is well suited in all environments in the home where it is approved with IP44. The product is fully dimmable and the recommended dimmer is 13 603 12.
- Article number: 7467853
- Suppl. article no: 903211
- Ean no: 7021989032113
- Material class QT4420
Teknisk data
- Packagin Size: 1 ST/20 ST/480 ST/480 ST
- Max. system power: 9 W
- Rated luminous flux according to IEC 62722-2-1: 830 lm
- Colour temperature: 2700 K
- Housing colour: White
- Surface brushed: Yes
- Beam angle: 41-80° - Wide beam
- Dimming DALI: No
- Outer diameter: 94 mm
- Built-in diameter: 83 mm
- Height/depth: 53 mm
- Lamp type: LED not exchangeable
- Adjustability: Not adjustable
- With light source: Yes
- Colour of light: White
- With control gear: Yes
- Type of control gear: LED operating device current-controlled
- Luminous intensity: 0 cd
- Reflector: High-gloss
- Housing material: Aluminium
- Suitable for workplace according to EN 12464-1: No
- Number of poles: 2
- Dimming phase cut-off (trailing edge): Yes
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Width: 94 mm
- Built-in length: 94 mm
- Dimming with push-button: No
- Dimming Sine Wave Reduction: No
- Dimming mains voltage modulation: No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming LineSwitch: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Total harmonic distortion: 0
- Rated ambient temperature according to IEC 62722-2-1: 25 °C
- Power factor: 0.9
- Photobiological safety according to EN 62471: Other
- Dimming phase cut-on (leading edge): No
- Filament test according to IEC 60695-2-11: None
- Material cover: Glass transparent
- Built-in width: 94 mm
- Degree of protection (IP): IP54
- Dimmable: Yes
- Lamp holder: None
- Conductor cross section: 2.5 mm²
- Light distribution: Symmetric
- Protection class according to IEC 61140: II
- Light distributor: Other
- Light outlet: Direct
- Luminaire efficacy: 92 lm/W
- Suitable for number of light sources: 1
- Colour rendering index CRI: 90-100
- Suitable for built-in mounting: Yes
- Suitable for clamp-mounting: No
- Suitable for lamp power: 9 W
- Suitable for low voltage cable system: No
- Suitable for pedestal/floor mounting: No
- Suitable for suspended mounting: No
- Suitable for light-track mounting: No
- Suitable for traverse mounting: No
- Suitable for wall mounting: No
- Suitable for surface mounting: No
- Length: 94 mm
- With light sensor: No
- With movement sensor: No
- Nominal voltage: 220-240 V
- Voltage type: AC
- Rated lifetime L70/B50 at 25 °C: 0 h
- Rated life time L80/B10 at 25 °C: 0 h
- Suitable for ceiling mounting: Yes
- Degree of protection (NEMA): Other
- Impact strength: IK00
- Dimming Touch and Dim: No
- Type of wiring: Suitable for loop-through wiring
- Connectable conductor cross section: 0.5-2.5 mm²
- Surface protection: Other
- Colour consistency (McAdam ellipse): SDCM2
- Covering of the luminaire with thermally insulating material possible: No
- Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq): 90 %
- Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq): 90 %
- Failure rate at median useful life of 100,000 h at 25 °C ambient (tq): 20 %
- Failure rate at median useful life of 50,000 h at 25 °C ambient (tq): 10 %
- Beam angle adjustable: No
- Colour of light adjustable: No
- Compatible with Amazon Alexa: No
- Compatible with Apple HomeKit: No
- Compatible with Google Assistant: No
- Constant light output (CLO): No
- Luminous flux adjustable: No
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 123
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 123
- IFTTT support available: No
- Emergency power supply integrated: No
- Exchangeable control gear: Yes
- Energy efficiency class: A+
- Built-in height/depth: 53 mm
- Connection type: Other
- Luminous flux: 500-999 lm
- LED nominal current at constant current: 255 mA
- Energy efficiency class of the provided exchangeable built-in lamp: A+
- Dimming GPRS: No
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- Dimming depending on control gear: No
