Downlight LED Isosafe DTW, SG-Armaturen
JUNISTAR ISOSAFE DTW MW
Article number: Suppl. article no:
7467758
901231
to see price and stock
Low-rise downlight that can be adjusted in any direction up to 30°. With a light distribution of 36 ° it gives nice light scattering.

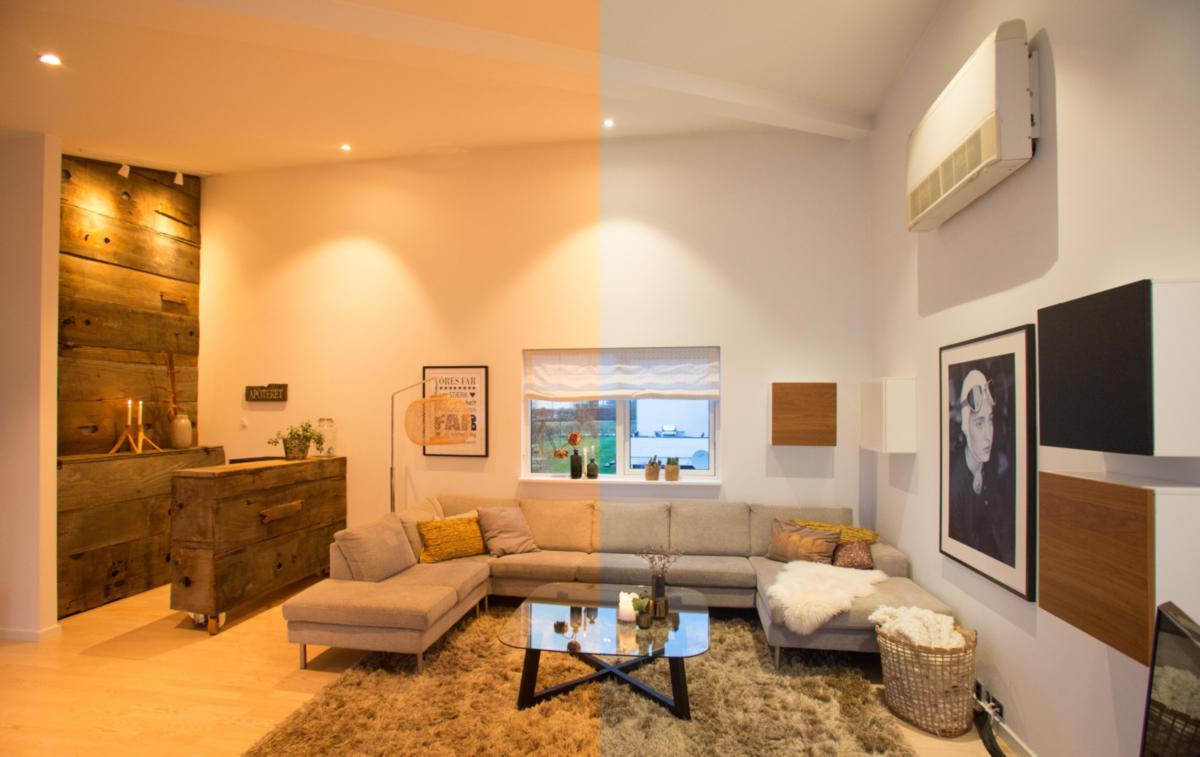

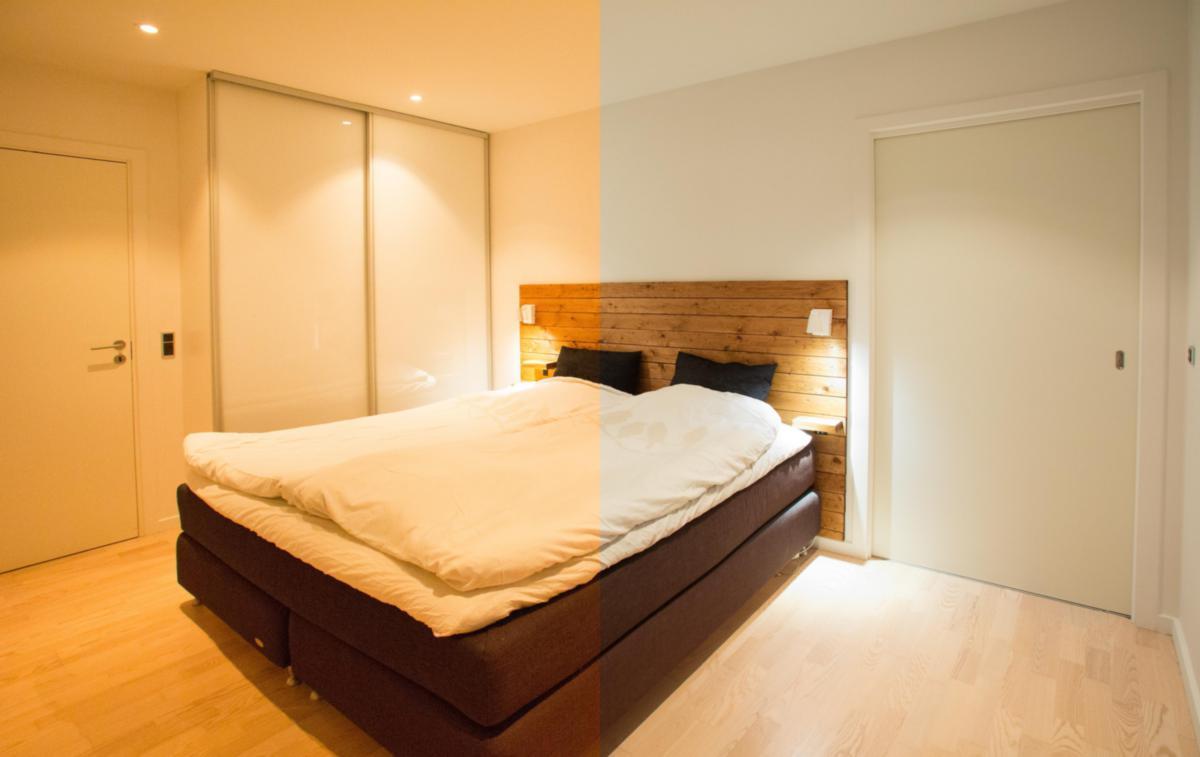

The colour temperature can be adjusted from 2800K (100%) down to 2000K and then has about 5% of the light left.
Gyro DimToWarm comes complete with driver.
The colour temperature can be adjusted from 2800K (100%) down to 2000K and then has about 5% of the light left.
Gyro DimToWarm comes complete with driver.
- Article number: 7467758
- Suppl. article no: 901231
- Ean no: 7021989012313
- Material class QT4420
Technical data
- Packagin Size: 1 PCS/20 PCS/480 PCS/480 PCS
- Max. system power: 8 W
- Rated luminous flux according to IEC 62722-2-1: 560 lm
- Colour temperature: 2000-2800 K
- Housing colour: White
- Luminous flux: 500-1000 lm
- Surface brushed: No
- Beam angle: 41-80° - Wide beam
- Outer diameter: 94 mm
- Built-in diameter: 83 mm
- Height/depth: 56 mm
- Lamp type: LED not exchangeable
- Adjustability: Swivelling
- With light source: Yes
- Colour of light: White
- With control gear: Yes
- Type of control gear: LED operating device current-controlled
- Reflector: High-gloss
- Housing material: Aluminium
- Suitable for workplace according to EN 12464-1: No
- Number of poles: 2
- Dimming phase cut-off (trailing edge): Yes
- Rated ambient temperature according to IEC 62722-2-1: 25 °C
- Photobiological safety according to EN 62471: Other
- Filament test according to IEC 60695-2-11: None
- Material cover: Glass transparent
- Degree of protection (IP): IP44
- Lamp holder: None
- Conductor cross section: 1 mm²
- Light distribution: Symmetric
- Protection class according to IEC 61140: II
- Light distributor: Reflector
- Light outlet: Direct
- Luminaire efficacy: 70 lm/W
- Suitable for number of light sources: 1
- Colour rendering index CRI: 90-100
- Suitable for built-in mounting: Yes
- Suitable for clamp-mounting: No
- Suitable for lamp power: 7 W
- Suitable for low voltage cable system: No
- Suitable for pedestal/floor mounting: No
- Suitable for suspended mounting: No
- Suitable for light-track mounting: No
- Suitable for traverse mounting: No
- Suitable for wall mounting: No
- Suitable for surface mounting: No
- With light sensor: No
- With movement sensor: No
- Nominal voltage: 220-230 V
- Voltage type: AC
- Suitable for ceiling mounting: Yes
- Degree of protection (NEMA): Other
- Impact strength: IK00
- Type of wiring: Suitable for loop-through wiring
- Connectable conductor cross section: 0.5-2.5 mm²
- Surface protection: Powder coating
- Colour consistency (McAdam ellipse): SDCM3
- Covering of the luminaire with thermally insulating material possible: Yes
- Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq): 80 %
- Failure rate at median useful life of 50,000 h at 25 °C ambient (tq): 20 %
- Beam angle adjustable: No
- Colour of light adjustable: Continuously variable
- Compatible with Amazon Alexa: No
- Compatible with Apple HomeKit: No
- Compatible with Google Assistant: No
- Constant light output (CLO): No
- Luminous flux adjustable: No
- IFTTT support available: No
- Emergency power supply integrated: No
- Exchangeable control gear: Yes
- Energy efficiency class: A++
- Built-in height/depth: 54 mm
- Connection type: Other
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- REACH Date: 2022-08-29
- REACH contains candidate substances: Bly
- Energy efficiency class of the provided exchangeable built-in lamp: A+
- REACH Information obligation: Yes
