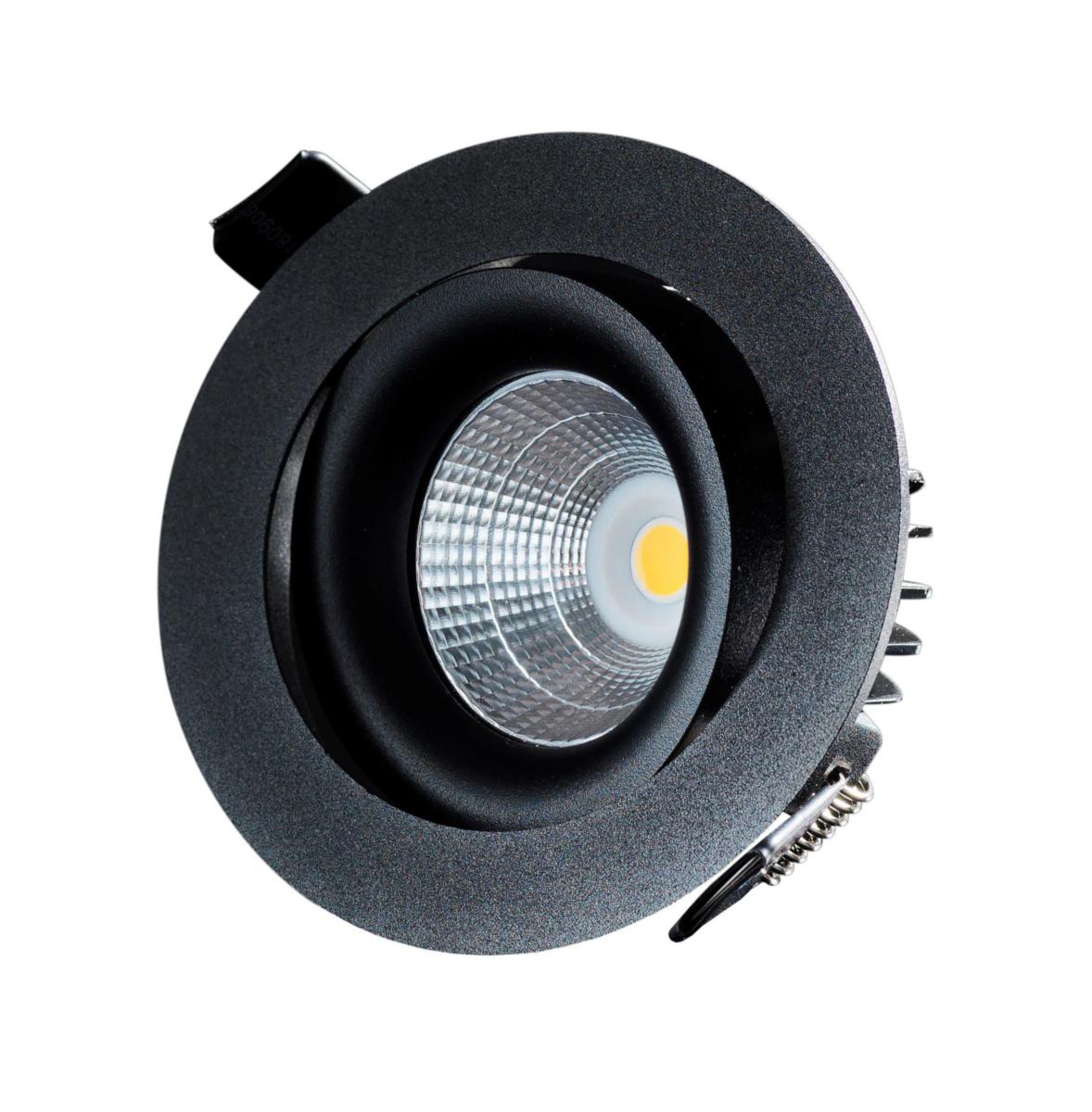

Downlight LED P-1602530B, Designlight
DOWNL TILT 7W 3000K INK DRIVER
Artikelnummer: Lev. artikelnr:
7465709
P-1602530B
för att se saldo och pris
A designed angled low-profile downgrade in a nice design and very good light range. Ink interchangeable reflectors.
Perfect as general lighting or in bathrooms with high ceilings. 2 reflectors included which can easily be changed to the desired spreading angle. Dimmable. Incl. drivdon.
Perfect as general lighting or in bathrooms with high ceilings. 2 reflectors included which can easily be changed to the desired spreading angle. Dimmable. Incl. drivdon.
- Article number: 7465709
- Suppl. article no: P-1602530B
- Ean no: 7340132801315
- Material class QT4440
Teknisk data
- Rated luminous flux according to IEC 62722-2-1: 590 lm
- Colour temperature: 3000 K
- Housing colour: Black
- Surface brushed: No
- Beam angle: Medium beam 21-40°
- Outer diameter: 90 mm
- Height/depth: 39 mm
- Lamp type: LED not exchangeable
- Adjustability: Rotatable
- With light source: Yes
- Colour of light: White
- With control gear: Yes
- Type of control gear: LED operating device current-controlled
- Luminous intensity: 1044 cd
- Reflector: High-gloss
- Housing material: Aluminium
- Dimming phase cut-off (trailing edge): Yes
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming programmable: No
- Dimming phase cut-on (leading edge): Yes
- Degree of protection (IP): IP21
- Dimmable: Yes
- Lamp holder: None
- Light distribution: Symmetric
- Protection class according to IEC 61140: III
- Light outlet: Direct
- Suitable for built-in mounting: Yes
- Colour rendering index CRI: 80-89
- Suitable for clamp-mounting: No
- Suitable for lamp power: 7 W
- Suitable for pedestal/floor mounting: No
- Suitable for suspended mounting: No
- Suitable for light-track mounting: No
- Suitable for traverse mounting: No
- Suitable for surface mounting: No
- With light sensor: No
- With movement sensor: No
- Nominal voltage: 220-230 V
- Voltage type: AC
- Suitable for ceiling mounting: Yes
- Dimming Touch and Dim: No
- Colour consistency (McAdam ellipse): SDCM3
- Covering of the luminaire with thermally insulating material possible: No
- Emergency power supply integrated: No
- Built-in height/depth: 37 mm
- Luminous flux: 590 lm
- REACH Date: 2021-08-16
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- REACH Information obligation: No
- Dimming depending on control gear: Yes
- Dimming GPRS: No
