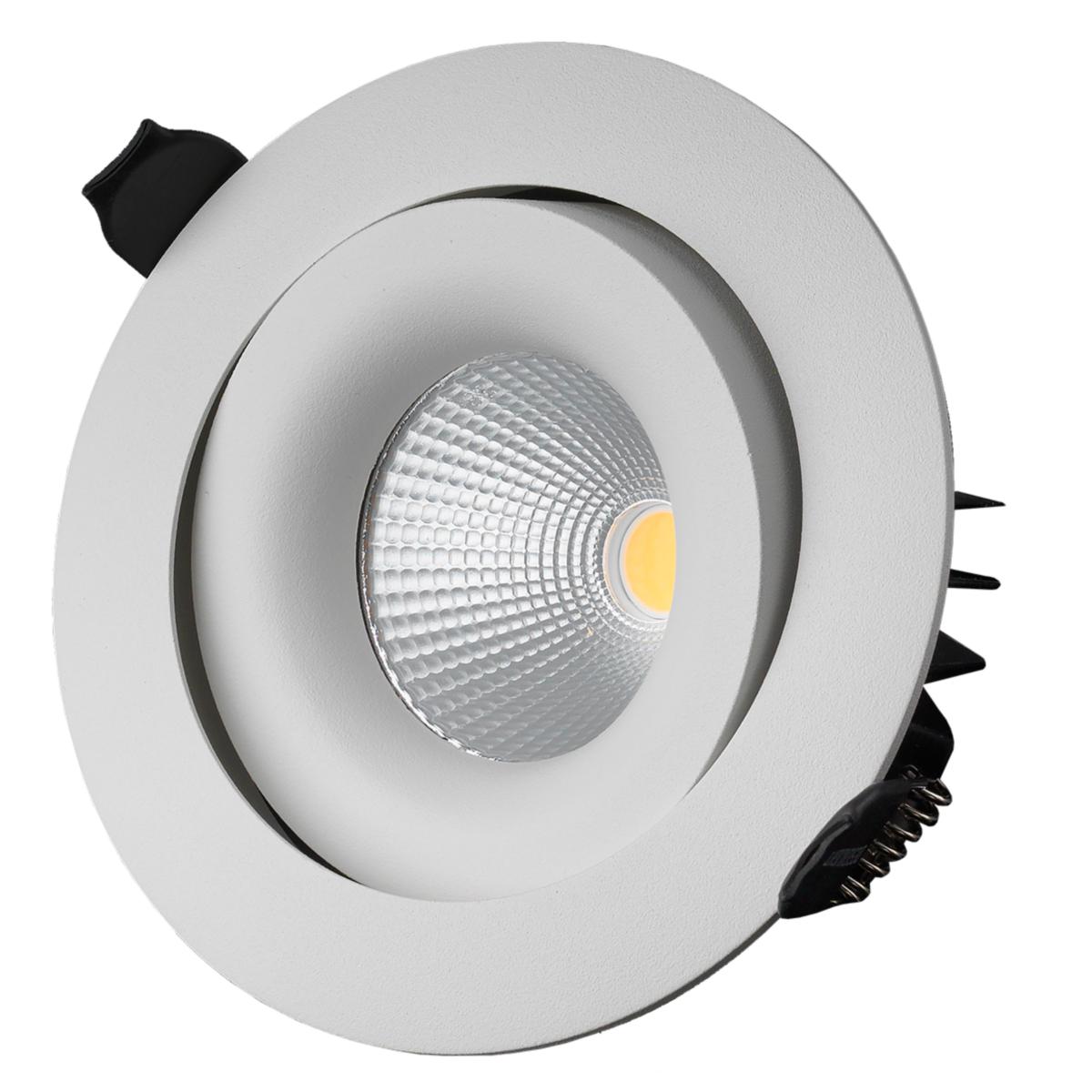

Downlight LED 11W P-191MW, Designlight
DOWNL P-191MW TILT 11W
Artikelnummer: Lev. artikelnr:
7464950
P-191MW
för att se saldo och pris
A nicely designed slightly larger luminaire with a high luminous flux of 780lm. It is both angled and dimmable. Delivered with drive.
Two replaceable reflectors are included that can be easily changed to the desired spread angle.
Two replaceable reflectors are included that can be easily changed to the desired spread angle.
- Article number: 7464950
- Suppl. article no: P-191MW
- Ean no: 7340132801063
- Material class QT4440
Teknisk data
- Packagin Size: 1 ST/36 ST/36 ST
- Energy label: F
- Max. system power: 11 W
- Rated luminous flux according to IEC 62722-2-1: 780 lm
- Colour temperature: 3000 K
- Housing colour: White
- Surface brushed: No
- Beam angle: Medium beam 21-40°
- Dimming DALI: No
- Outer diameter: 100 mm
- Built-in diameter: 90 mm
- Height/depth: 59.5 mm
- Lamp type: LED not exchangeable
- Adjustability: Rotatable
- With light source: Yes
- Colour of light: White
- With control gear: Yes
- Type of control gear: LED operating device current-controlled
- Reflector: High-gloss
- Housing material: Aluminium
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Dimming Sine Wave Reduction: Yes
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming LineSwitch: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Filament test according to IEC 60695-2-11: None
- Material cover: None
- Degree of protection (IP): IP44
- Lamp holder: None
- Light distribution: Symmetric
- Protection class according to IEC 61140: III
- Suitable for number of light sources: 1
- Suitable for built-in mounting: Yes
- Colour rendering index CRI: 90-100
- Suitable for clamp-mounting: No
- Suitable for low voltage cable system: No
- Suitable for pedestal/floor mounting: No
- Suitable for suspended mounting: No
- Suitable for light-track mounting: No
- Suitable for traverse mounting: No
- Suitable for wall mounting: No
- Suitable for surface mounting: No
- With light sensor: No
- With movement sensor: No
- Nominal voltage: 220-230 V
- Voltage type: AC
- Suitable for ceiling mounting: Yes
- Dimming Touch and Dim: No
- Colour consistency (McAdam ellipse): SDCM3
- Built-in height/depth: 59.5 mm
- REACH Date: 2021-08-16
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- REACH Information obligation: No
- Dimming depending on control gear: No
- Dimming GPRS: No
