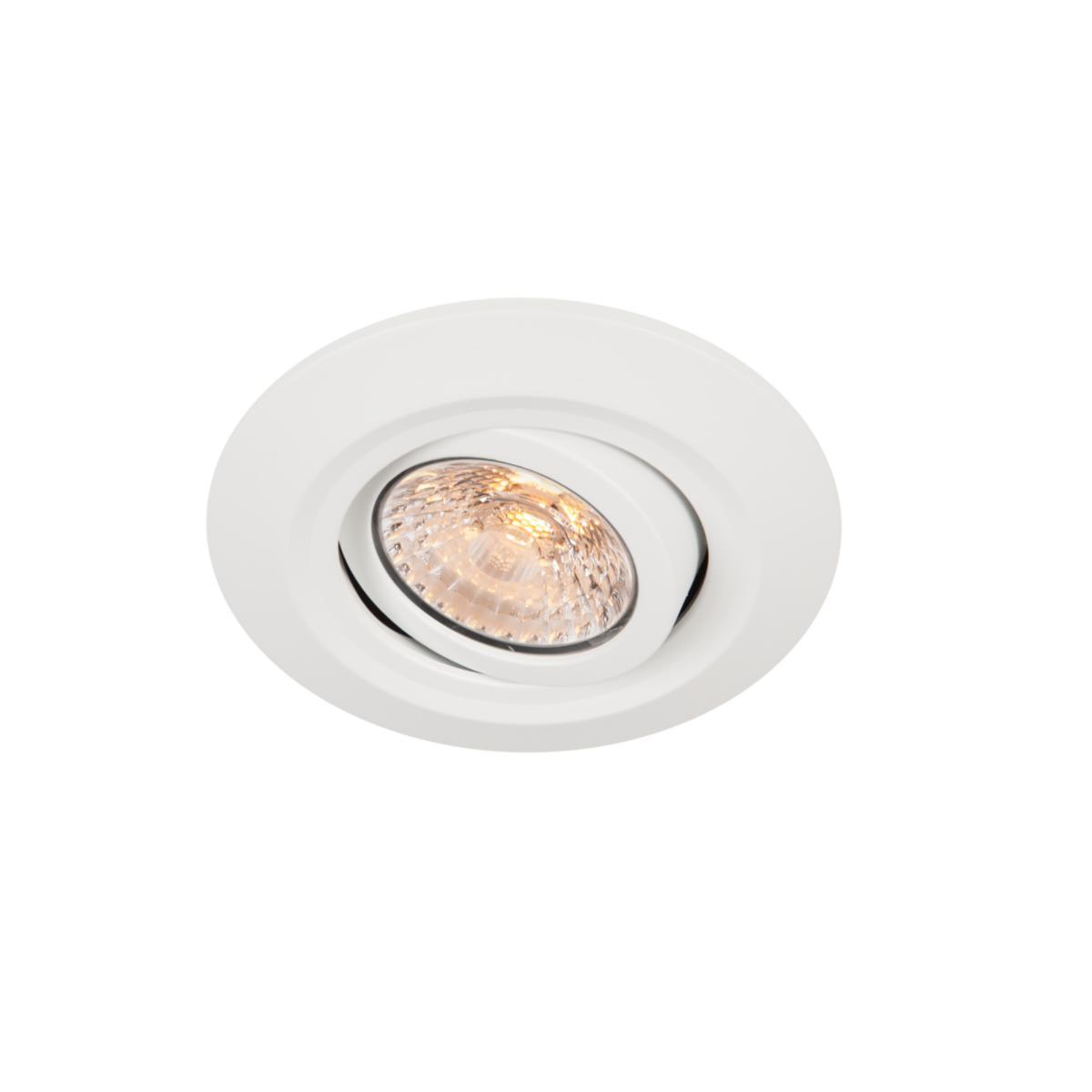

Downlight LED Comfort Quick Tune, Hide-a-Lite
COMFORT QUICK ISO WHITE TUNE
Article number: Suppl. article no:
7464935
7464935
to see price and stock

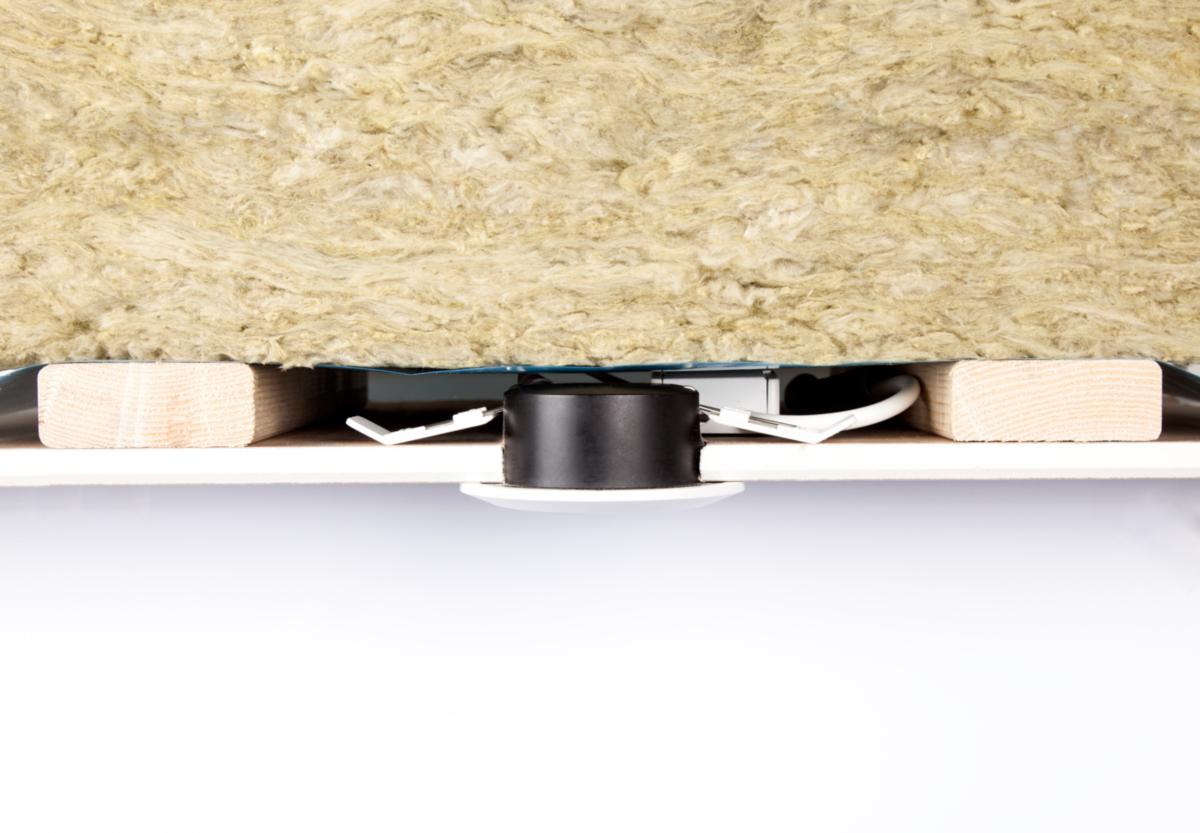

Low installation height LED downlight, mounting height only 32mm, approved by Nemko for mounting directly onto insulation. Comfortlins and the latest LED technology provide brilliant light quality with high light comfort. Available in two colour temperatures and Tune with dimmable colour temperature (2000K-2700K) that mimics the "warm" dim properties of halogen, Complete with phase-dimmer drive, quick-release terminals for further connection and tension relief for cable or flexible hose 16mm. Dimmable with the most common dimmers on the market
- Article number: 7464935
- Suppl. article no: 7464935
- Ean no: 7392971128726
- Material class QT432A
Technical data
- Packagin Size: 1 ST/20 ST/20 ST
- Max. system power: 6 W
- Rated luminous flux according to IEC 62722-2- 1: 300 lm
- Colour temperature: 2000-2700 K
- Housing colour: White
- Surface brushed: No
- Beam angle: 21-40° - Medium beam
- Dimming DALI: No
- Outer diameter: 95 mm
- Height/depth: 40 mm
- Lamp type: LED not exchangeable
- Adjustability: Swivelling
- With light source: Yes
- Colour of light: White
- With control gear: Yes
- Type of control gear: LED operating device current-controlled
- Luminous intensity: 565 cd
- Reflector: None
- Housing material: Aluminium
- Suitable for workplace according to EN 12464-1: No
- Number of poles: 3
- Dimming phase cut-off (trailing edge): Yes
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Dimming with push-button: No
- Dimming Sine Wave Reduction: No
- Dimming mains voltage modulation: No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming LineSwitch: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Rated ambient temperature according to IEC 62722-2-1: -20-45 °C
- Photobiological safety according to EN 62471: Other
- Dimming phase cut-on (leading edge): Yes
- Filament test according to IEC 60695-2-11: None
- Material cover: Without cover
- Degree of protection (IP): IP44
- Dimmable: Yes
- Lamp holder: None
- Light distribution: Symmetric
- Protection class according to IEC 61140: II
- Light distributor: Focal lens
- Light outlet: Direct
- Luminaire efficacy: 50 lm/W
- Suitable for number of light sources: 1
- Colour rendering index CRI: 90-100
- Suitable for built-in mounting: Yes
- Suitable for clamp-mounting: No
- Suitable for low voltage cable system: No
- Suitable for pedestal/floor mounting: No
- Suitable for suspended mounting: No
- Suitable for light-track mounting: No
- Suitable for traverse mounting: No
- Suitable for surface mounting: No
- With light sensor: No
- With movement sensor: No
- Nominal voltage: 220-240 V
- Voltage type: AC
- Rated lifetime L70/B50 at 25 °C: 50000 h
- Suitable for ceiling mounting: Yes
- Impact strength: Other
- Dimming Touch and Dim: No
- Type of wiring: Suitable for loop-through wiring
- Connectable conductor cross section: 0.5-2.5 mm²
- Surface protection: Powder coating
- Colour consistency (McAdam ellipse): SDCM3
- Covering of the luminaire with thermally insulating material possible: Yes
- Connection type: Push-in clamp
- Luminous flux: 300 lm
- Colour temperature: 2700 K
- Lamp power: 6 W
- REACH Date: 2022-06-01
- Built-in height/depth: 32 mm
- Built-in depth: 32 mm
- Diameter: 95 mm
- Spreading angle: 36gr
- Tiltable: Yes
- Dimming GPRS: No
- Colour cover: White
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- REACH Information obligation: No
- Dimming depending on control gear: No
