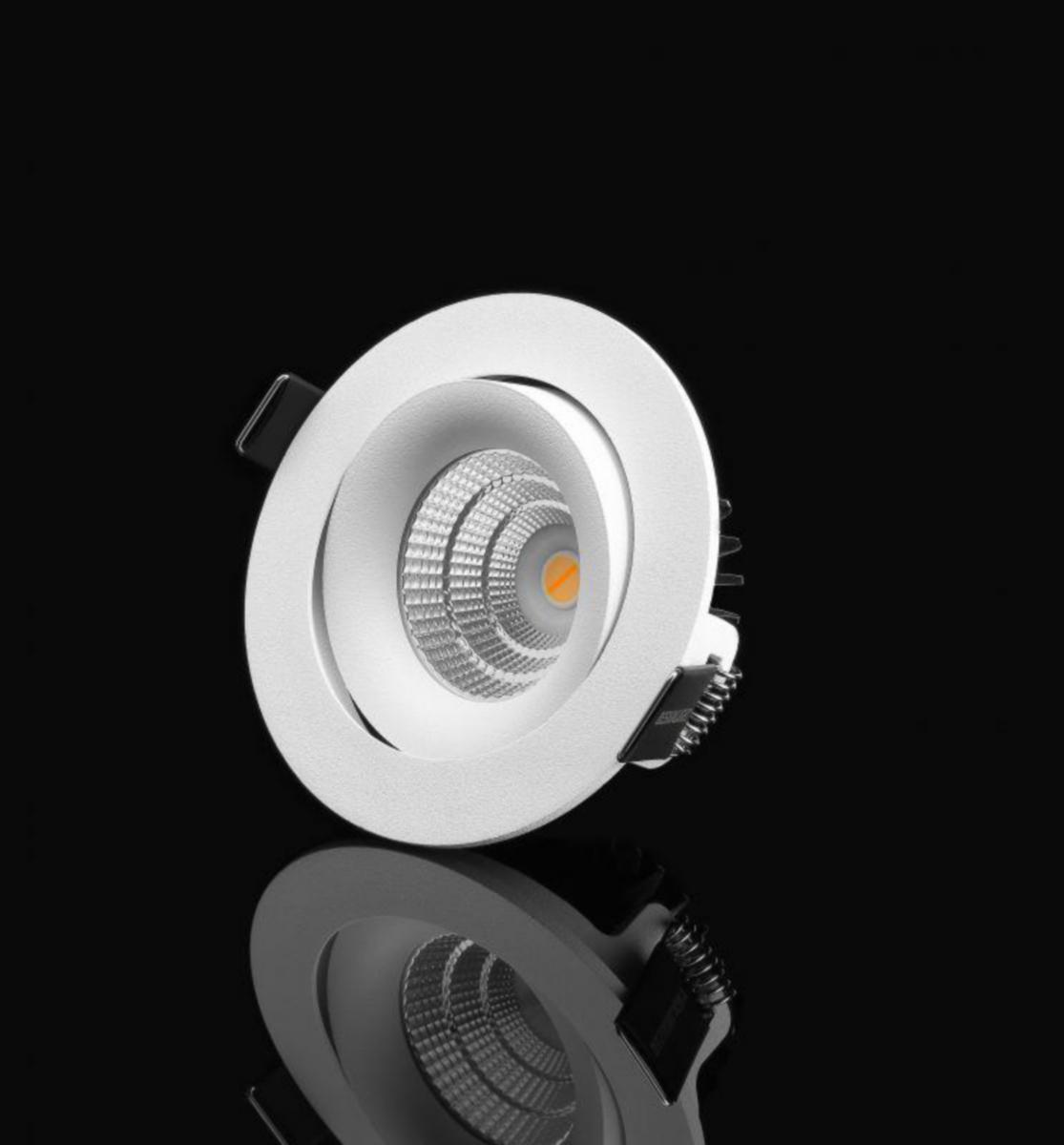

Downlight LED P-160562028, Designlight
DOWNL P-160562028 TILT 8W
Artikelnummer: Lev. artikelnr:
7464926
P-160562028
för att se saldo och pris
A designed angled low-profile downlight in a nice design and very good light range. The luminaire has an adjustable color temperature from 2000-2800K depending on how you dim it, IP21. Three reflectors are included that can be easily changed to the desired spread angle 30 °, 45 ° or 70 °
Incl. driver.
Incl. driver.
- Article number: 7464926
- Suppl. article no: P-160562028
- Ean no: 7340132800707
- Material class QT4441
Teknisk data
- Type: P-160562028
- Max. system power: 8 W
- Rated luminous flux according to IEC 62722-2-1: 500 lm
- Colour temperature: 2000-2800 K
- Housing colour: White
- Beam angle: Wide beam 41-80°
- Outer diameter: 90 mm
- Built-in diameter: 79 mm
- Height/depth: 46 mm
- Lamp type: LED not exchangeable
- Adjustability: Rotatable
- With light source: Yes
- Colour of light: White
- With control gear: Yes
- Type of control gear: LED operating device current-controlled
- Luminous intensity: 874 cd
- Reflector: High-gloss
- Housing material: Aluminium
- Dimming phase cut-off (trailing edge): Yes
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Width: 90 mm
- Built-in length: 79 mm
- Dimming phase cut-on (leading edge): Yes
- Built-in width: 79 mm
- Degree of protection (IP): IP21
- Dimmable: Yes
- Lamp holder: None
- Light distribution: Symmetric
- Protection class according to IEC 61140: III
- Light distributor: Reflector
- Light outlet: Direct
- Luminaire efficacy: 72 lm/W
- Colour rendering index CRI: 80-89
- Suitable for built-in mounting: Yes
- Suitable for clamp-mounting: No
- Suitable for lamp power: 6.3 W
- Suitable for low voltage cable system: No
- Suitable for pedestal/floor mounting: No
- Suitable for suspended mounting: No
- Suitable for light-track mounting: No
- Suitable for traverse mounting: No
- Suitable for wall mounting: No
- Suitable for surface mounting: No
- Length: 90 mm
- With light sensor: No
- With movement sensor: No
- Nominal voltage: 220-230 V
- Voltage type: AC
- Rated lifetime L70/B50 at 25 °C: 40000 h
- Suitable for ceiling mounting: Yes
- Surface protection: Powder coating
- Covering of the luminaire with thermally insulating material possible: No
- Colour of light adjustable: Continuously variable
- Compatible with Amazon Alexa: No
- Compatible with Apple HomeKit: No
- Compatible with Google Assistant: No
- Constant light output (CLO): No
- Luminous flux adjustable: Continuously variable
- Emergency power supply integrated: No
- Energy efficiency class: A++
- Built-in height/depth: 39 mm
- Luminous flux: 20-575 lm
- LED nominal current at constant current: 350 mA
- REACH Date: 2021-08-16
- Spreading angle: 30° 45° 70°
- Inset depth: 37 mm
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- REACH Information obligation: No
