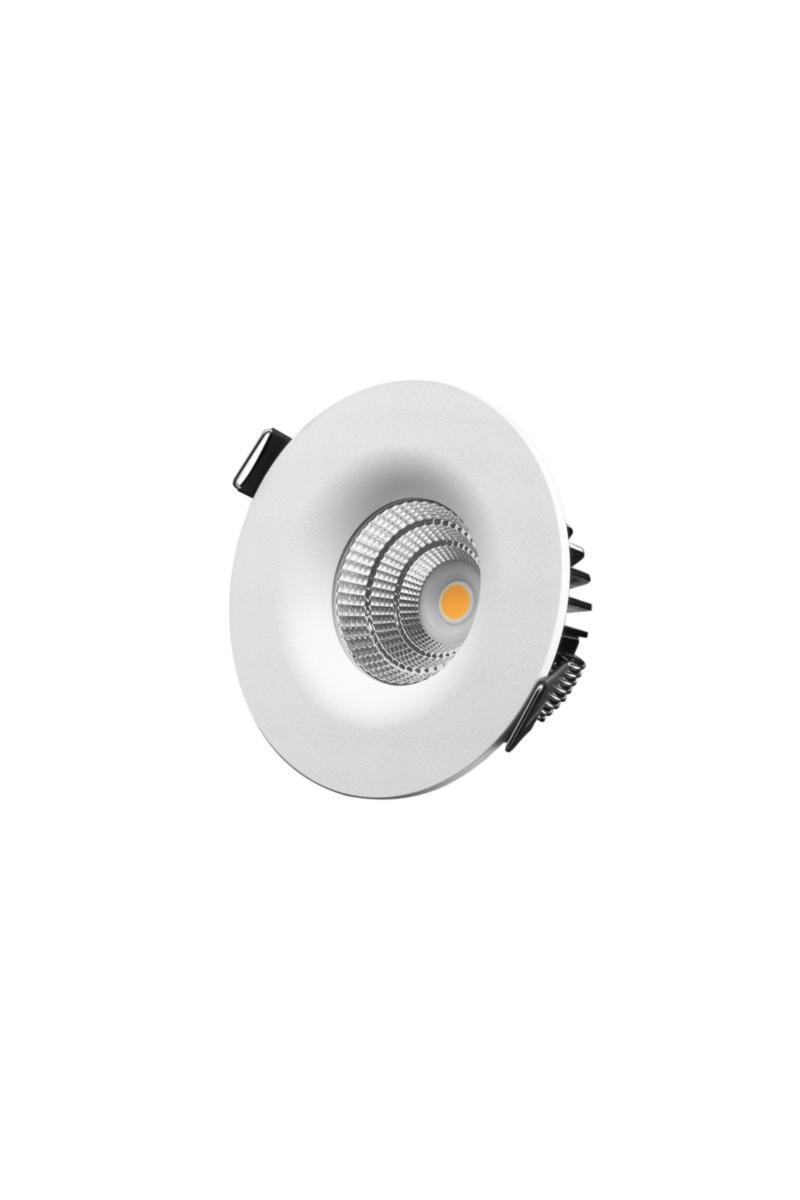

Downlight LED P-16015, Designlight
DOWNL P-1601530 FIXED 5W 3000K
Article number: Suppl. article no:
7464732
P-1601530
to see price and stock
A designed, solid, low-profile downlight with a beautiful appearance and very good light output. Available in 2700 K & 3000 K
Two reflectors are included that can be easily changed to the desired spreading angle. Incl. actuator. The LED light source cannot be changed.
Two reflectors are included that can be easily changed to the desired spreading angle. Incl. actuator. The LED light source cannot be changed.
- Article number: 7464732
- Suppl. article no: P-1601530
- Ean no: 7340132800813
- Material class QT4442
Technical data
- Packagin Size: 1 PCS/36 PCS
- Max. system power: 7 W
- Rated luminous flux according to IEC 62722-2-1: 590 lm
- Colour temperature: 3000 K
- Housing colour: White
- Luminous flux: 620 lm
- Beam angle: Medium beam 21-40°
- Dimming DALI: No
- Outer diameter: 90 mm
- Height/depth: 36.5 mm
- Lamp type: LED not exchangeable
- Adjustability: Not adjustable
- With light source: Yes
- Colour of light: White
- With control gear: Yes
- Type of control gear: LED operating device current-controlled
- Luminous intensity: 1044 cd
- Reflector: High-gloss
- Housing material: Aluminium
- Dimming phase cut-off (trailing edge): Yes
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Dimming with push-button: No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming LineSwitch: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Dimming phase cut-on (leading edge): Yes
- Degree of protection (IP): IP44
- Dimmable: Yes
- Light distribution: Symmetric
- Protection class according to IEC 61140: III
- Light outlet: Direct
- Suitable for built-in mounting: Yes
- Colour rendering index CRI: 80-89
- Suitable for clamp-mounting: No
- Suitable for pedestal/floor mounting: No
- Suitable for suspended mounting: No
- Suitable for light-track mounting: No
- Suitable for traverse mounting: No
- Suitable for surface mounting: No
- With light sensor: No
- With movement sensor: No
- Nominal voltage: 220-230 V
- Voltage type: AC
- Rated lifetime L70/B50 at 25 °C: 40000 h
- Suitable for ceiling mounting: Yes
- Dimming Touch and Dim: No
- Colour consistency (McAdam ellipse): SDCM3
- Covering of the luminaire with thermally insulating material possible: No
- Emergency power supply integrated: No
- Dimming GPRS: No
- Dimming depending on control gear: No
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- REACH Date: 2021-08-16
- Type: P1601530
- Spreading angle: 24/36/64°
- REACH Information obligation: No
