SG Armaturen

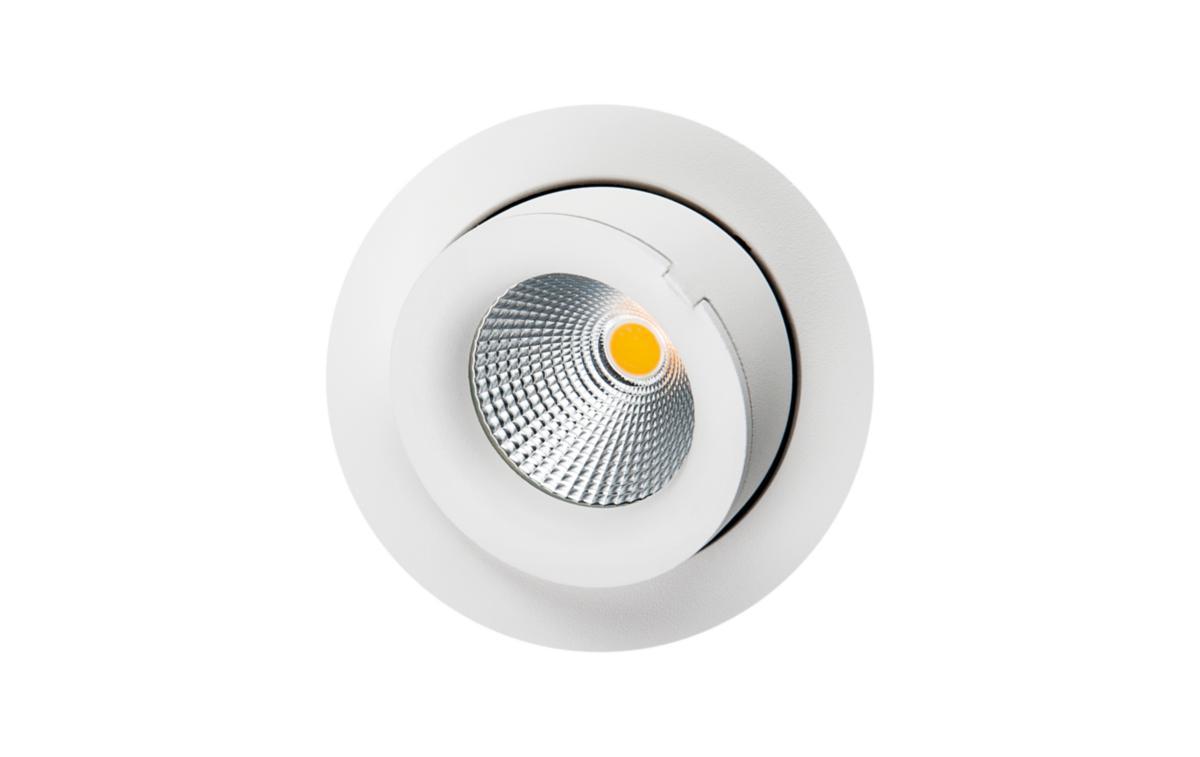

Downlight LED Junistar Exclusive Indoor/Outdoor, SG-Armaturen
JUNISTAR EX MW 9W 2700K
Article number: Suppl. article no:
7467849
903201
to see price and stock
Junistar Exclusive is an angled downlight where the luminaire housing's adjustability is kind of like a macaroni. It has an outdoor varnish and protection class IP44, it therefore works in all indoor and outdoor environments where it is approved with IP44. Exclusive used to exist both indoors and outdoors, but today is only available in an Indoor / Outdoor model. The product is fully dimmable and the recommended dimmer is 13 603 12.
- Article number: 7467849
- Suppl. article no: 903201
- Ean no: 7021989032014
- Material class QT4420
Technical data
- Packagin Size: 1 ST/20 ST/440 ST/440 ST
- Max. system power: 9 W
- Rated luminous flux according to IEC 62722-2- 1: 730 lm
- Colour temperature: 2700 K
- Housing colour: White
- Surface brushed: Yes
- Beam angle: 41-80° - Wide beam
- Dimming DALI: No
- Outer diameter: 94 mm
- Height/depth: 55 mm
- Lamp type: LED not exchangeable
- Adjustability: Swivelling
- With light source: Yes
- Colour of light: White
- With control gear: Yes
- Type of control gear: LED operating device current-controlled
- Reflector: High-gloss
- Housing material: Aluminium
- Suitable for workplace according to EN 12464-1: No
- Number of poles: 2
- Dimming phase cut-off (trailing edge): Yes
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Width: 94 mm
- Dimming with push-button: No
- Dimming Sine Wave Reduction: No
- Dimming mains voltage modulation: No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming LineSwitch: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Rated ambient temperature according to IEC 62722-2-1: 25 °C
- Power factor: 0.9
- Photobiological safety according to EN 62471: RG1
- Dimming phase cut-on (leading edge): No
- Filament test according to IEC 60695-2-11: None
- Material cover: Glass transparent
- Degree of protection (IP): IP44
- Dimmable: Yes
- Lamp holder: None
- Conductor cross section: 1 mm²
- Light distribution: Symmetric
- Protection class according to IEC 61140: II
- Light distributor: Reflector
- Light outlet: Direct
- Luminaire efficacy: 81 lm/W
- Suitable for number of light sources: 1
- Colour rendering index CRI: 90-100
- Suitable for built-in mounting: Yes
- Suitable for clamp-mounting: No
- Suitable for lamp power: 9 W
- Suitable for low voltage cable system: No
- Suitable for pedestal/floor mounting: No
- Suitable for suspended mounting: No
- Suitable for light-track mounting: No
- Suitable for traverse mounting: No
- Suitable for surface mounting: No
- Length: 121 mm
- With light sensor: No
- With movement sensor: No
- Nominal voltage: 230 V
- Voltage type: AC
- Rated lifetime L70/B50 at 25 °C: 0 h
- Rated life time L80/B10 at 25 °C: 0 h
- Suitable for ceiling mounting: Yes
- Degree of protection (NEMA): Other
- Impact strength: IK00
- Dimming Touch and Dim: No
- Type of wiring: Suitable for loop-through wiring
- Connectable conductor cross section: 0.5-2.5 mm²
- Surface protection: Powder coating
- Colour consistency (McAdam ellipse): SDCM2
- Covering of the luminaire with thermally insulating material possible: No
- Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq): 90 %
- Compatible with Amazon Alexa: No
- Compatible with Apple HomeKit: No
- Compatible with Google Assistant: No
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 30
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 30
- IFTTT support available: No
- Connection type: Other
- Luminous flux: 500-999 lm
- Built-in width: 94 mm
- Built-in length: 121 mm
- REACH Date: 2022-08-25
- Built-in height/depth: 55 mm
- REACH contains candidate substances: Bly
- Energy efficiency class of the provided exchangeable built-in lamp: A++
- Dimming GPRS: No
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- REACH Information obligation: Yes
- Emergency power supply integrated: No
- Dimming depending on control gear: No
