Designlight
Downlight City
Downl City 8/10/12W MW 3/4K
Article number: Suppl. article no:
7477635
D005-1711
to see price and stock

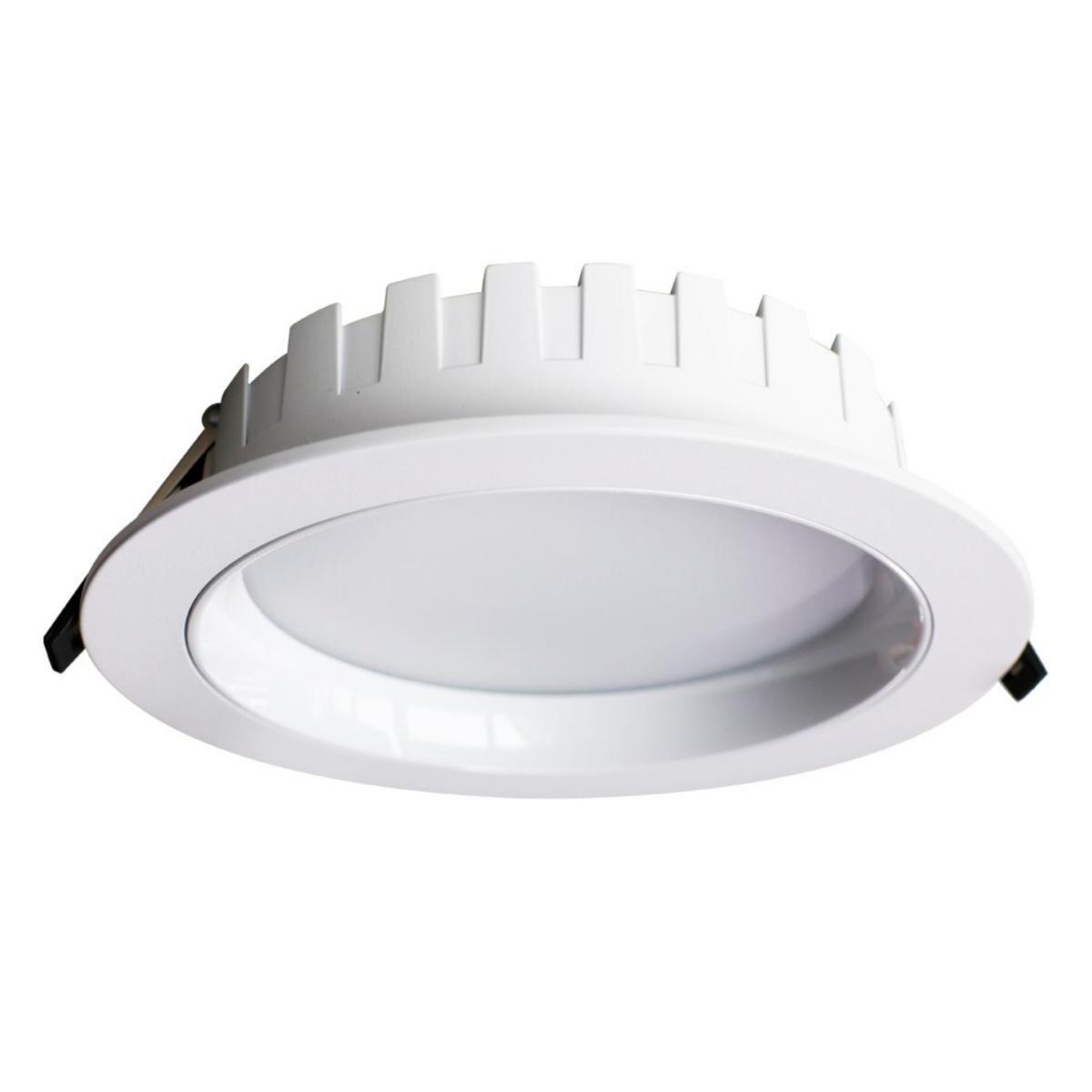

City - the solution for modern lighting needs in public and commercial environments where older compact fluorescent fixtures need to be replaced. City has adjustable light flow via DIP switch, which makes it easy to adjust the lighting to the desired level. The color temperature is also adjustable so that you can easily adjust the character of the room. City is a very flexible and energy-efficient downlight that is suitable for public environments such as shops, shopping centres, gyms etc.
- Article number: 7477635
- Suppl. article no: D005-1711
- Ean no: 7340132806747
- Material class QT4440
Technical data
- Packagin Size: 1 PCS/6 PCS
- Energy label: F
- Max. system power: 16 W
- Rated luminous flux according to IEC 62722-2- 1: 1200-1600 lm
- Colour temperature: 3000-4000 K
- Housing colour: White
- Surface brushed: No
- Beam angle: > 80° - Extreme wide beam
- Dimming DALI: No
- Dimming DALI-2: No
- Outer diameter: 150 mm
- Built-in diameter: 120-140 mm
- Built-in height: 50 mm
- Height/depth: 45 mm
- Lamp type: LED not exchangeable
- Adjustability: Not adjustable
- With light source: Yes
- Colour of light: White
- With control gear: Yes
- Type of control gear: LED operating device current-controlled
- Luminous intensity: 480-589 cd
- Housing material: Aluminium
- Number of poles: 2
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Width: 150 mm
- Rated ambient temperature according to IEC 62722-2-1: 20-25 °C
- Power factor: 0.9
- Material cover: Plastic, opal
- Degree of protection (IP): IP20
- Dimmable: No
- Degree of protection (IP), rear side: IP20
- Conductor cross section: 0.75 mm²
- Light distribution: Symmetric
- Protection class according to IEC 61140: II
- Light distributor: Diffuser lens/optic/panel
- Light outlet: Direct
- Luminaire efficacy: 90 lm/W
- Colour rendering index CRI: 80-89
- Suitable for built-in mounting: Yes
- Suitable for clamp-mounting: No
- Suitable for lamp power: 12-62 W
- Suitable for pedestal/floor mounting: No
- Suitable for suspended mounting: No
- Suitable for light-track mounting: No
- Suitable for traverse mounting: No
- Suitable for wall mounting: Yes
- Suitable for surface mounting: No
- Length: 150 mm
- With light sensor: No
- With movement sensor: No
- Nominal voltage: 230 V
- Voltage type: AC
- Rated lifetime L70/B50 at 25 °C: 50000 h
- Suitable for ceiling mounting: Yes
- Type of wiring: Suitable for loop-through wiring
- Surface protection: Lacquered
- Covering of the luminaire with thermally insulating material possible: No
- Beam angle adjustable: No
- Colour of light adjustable: Positions
- Compatible with Amazon Alexa: No
- Compatible with Apple HomeKit: No
- Compatible with Google Assistant: No
- Constant light output (CLO): No
- Luminous flux adjustable: Positions
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 75
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 88
- Exchangeable control gear: Yes
- Operation by Bluetooth: No
- Energy efficiency class of the light source according to EU regulation 2019/2015: F
- Connection type: Push-in clamp
- Compatible with Casambi: No
- Containing product according to 2019/2020/EU: Yes
- With presence detector: No
- Emergency power supply system: None
- Luminous flux: 720-1080 lm
- REACH Date: 2024-04-24
- REACH Information obligation: No
- Emergency power supply integrated: No
