Downlight Tracy
Downl Tracy 10/15W 3/4K White
Article number: Suppl. article no:
7477489
D-10/15MW2CCT
to see price and stock

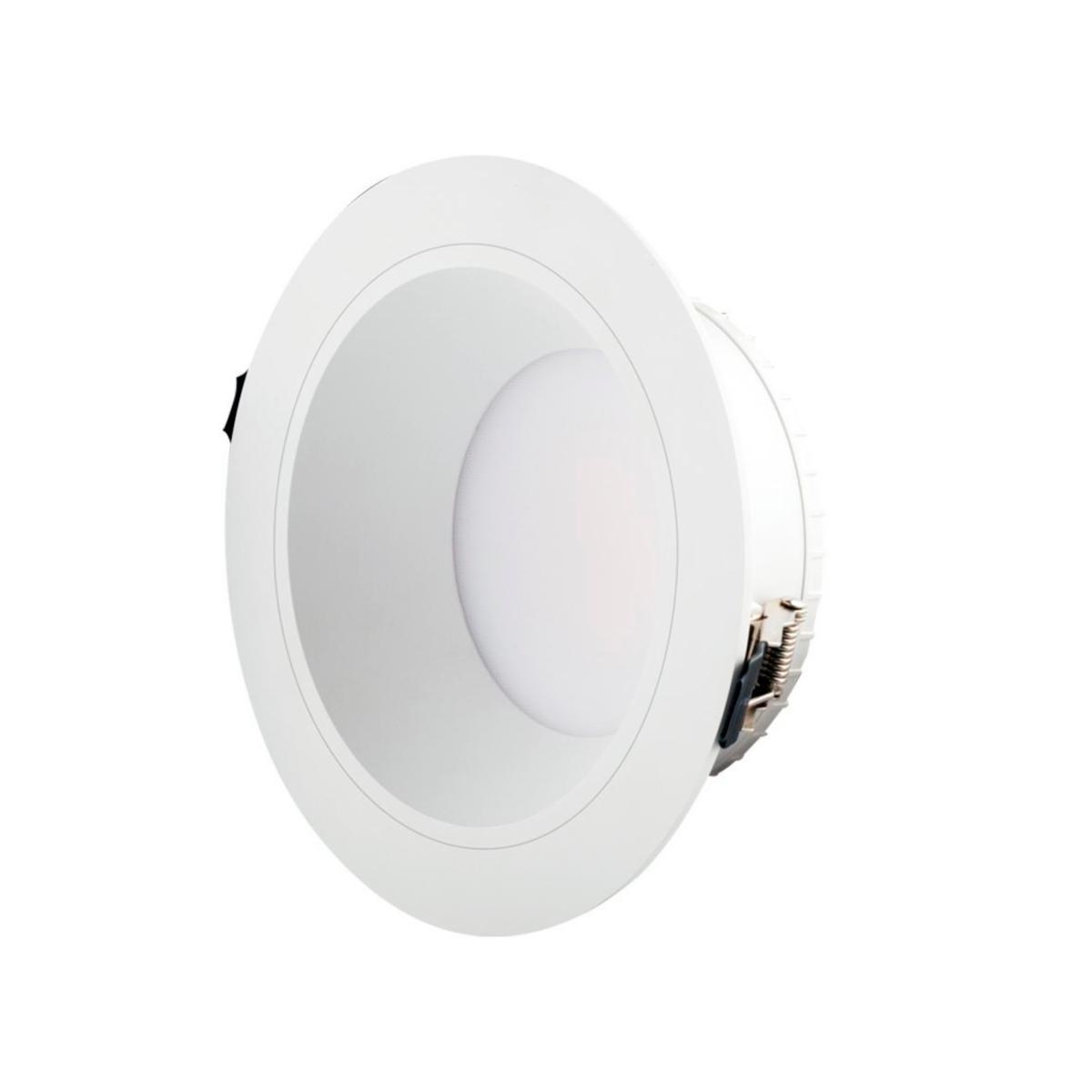

Tracy is a flexible downlight for general lighting in public buildings, offices, corridors, etc. The color temperature is adjustable between 3000K and 4000K and the effect is also adjustable, which gives several different combinations in one and the same product. There are different options for control. All versions of Tracy are equipped with a junction box and quick coupling to make installation easier for the fitter.
- Article number: 7477489
- Suppl. article no: D-10/15MW2CCT
- Ean no: 7340132806051
- Material class QT4440
Technical data
- Packagin Size: 1 PCS/16 PCS
- Energy label: D
- Max. system power: 15 W
- Rated luminous flux according to IEC 62722-2- 1: 1400-1552 lm
- Colour temperature: 3000-4000 K
- Housing colour: White
- Surface brushed: No
- Beam angle: > 80° - Extreme wide beam
- Dimming DALI: No
- Dimming DALI-2: No
- Outer diameter: 176 mm
- Built-in diameter: 140-155 mm
- Built-in height: 67 mm
- Height/depth: 67 mm
- Lamp type: LED exchangeable
- Adjustability: Not adjustable
- With light source: Yes
- Colour of light: White
- With control gear: Yes
- Type of control gear: LED operating device current-controlled
- Luminous intensity: 763 cd
- Housing material: Aluminium
- Number of poles: 2
- Dimming phase cut-off (trailing edge): No
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Dimming with push-button: No
- Dimming Sine Wave Reduction: No
- Dimming mains voltage modulation: No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming LineSwitch: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Dimming phase cut-on (leading edge): No
- Material cover: Plastic, structured
- Degree of protection (IP): IP40
- Dimmable: No
- Degree of protection (IP), front side: IP40
- Lamp holder: None
- Light distribution: Symmetric
- Protection class according to IEC 61140: II
- Light outlet: Direct
- Luminaire efficacy: 93 lm/W
- Colour rendering index CRI: 80-89
- Suitable for built-in mounting: Yes
- Suitable for clamp-mounting: No
- Suitable for pedestal/floor mounting: No
- Suitable for suspended mounting: No
- Suitable for light-track mounting: No
- Suitable for traverse mounting: No
- Suitable for wall mounting: No
- Suitable for surface mounting: No
- With light sensor: No
- With movement sensor: No
- Nominal voltage: 230 V
- Voltage type: AC
- Rated lifetime L70/B50 at 25 °C: 50000 h
- Suitable for ceiling mounting: Yes
- Dimming Touch and Dim: No
- Type of wiring: Suitable for loop-through wiring
- Surface protection: Lacquered
- Covering of the luminaire with thermally insulating material possible: No
- Colour of light adjustable: Positions
- Compatible with Amazon Alexa: No
- Compatible with Google Assistant: No
- Constant light output (CLO): No
- Exchangeable control gear: Yes
- Operation by Bluetooth: No
- Energy efficiency class of the light source according to EU regulation 2019/2015: D
- Reflector colour: White
- Connection type: Push-in clamp
- Compatible with Casambi: No
- Containing product according to 2019/2020/EU: Yes
- With presence detector: No
- Emergency power supply system: None
- REACH Date: 2023-11-15
- REACH Information obligation: No
